Siemens CU240B-2 - Switching over the Inverter Control (Command Data Set)

Advanced commissioning
6.2 Inverter control
Converter with the CU240B-2 and CU240E-2 Control Units
Operating Instructions, 01/2016, FW V4.7 SP6, A5E34259001B AC
217
6.2.12
Switching over the inverter control (command data set)
In some applications, it must be possible to switch over the master control for operating the
inverter.
Example: The motor is to be operable either from a central control via the fieldbus or via the
local digital inputs of the inverter.
Command data set (CDS)
This means that you can set the inverter co
n-
trol in various ways and toggle between the
settings. For instance, as described above,
the inv
erter can either be operated via a
fieldbus or via its digital inputs.
The settings in the inverter, which are a
s-
signed to a specific master control, are termed
the command data set.
You select the command data set using parameter p0810. To do this, you must interconnect
parameter p0810 with a control command of your choice, e.g. a digital input.

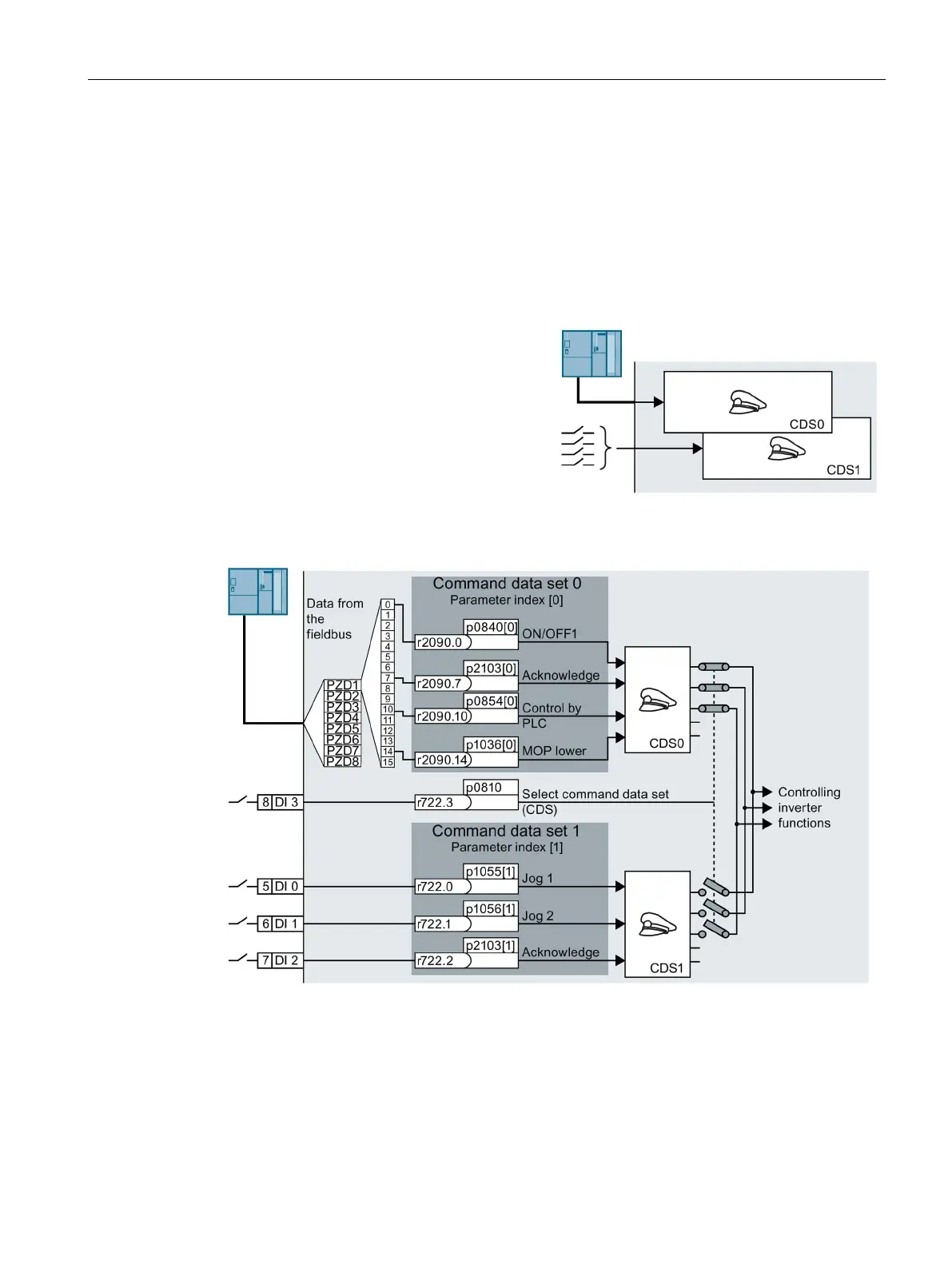

Image 6-18 Example: Switching over the control via terminal strip to control via PROFIBUS or
PROFINET
