6.8 Safe Torque Off (STO) safety function
Converter with the CU240B-2 and CU240E-2 Control Units
Operating Instructions, 01/2016, FW V4.7 SP6, A5E34259001B AC
347

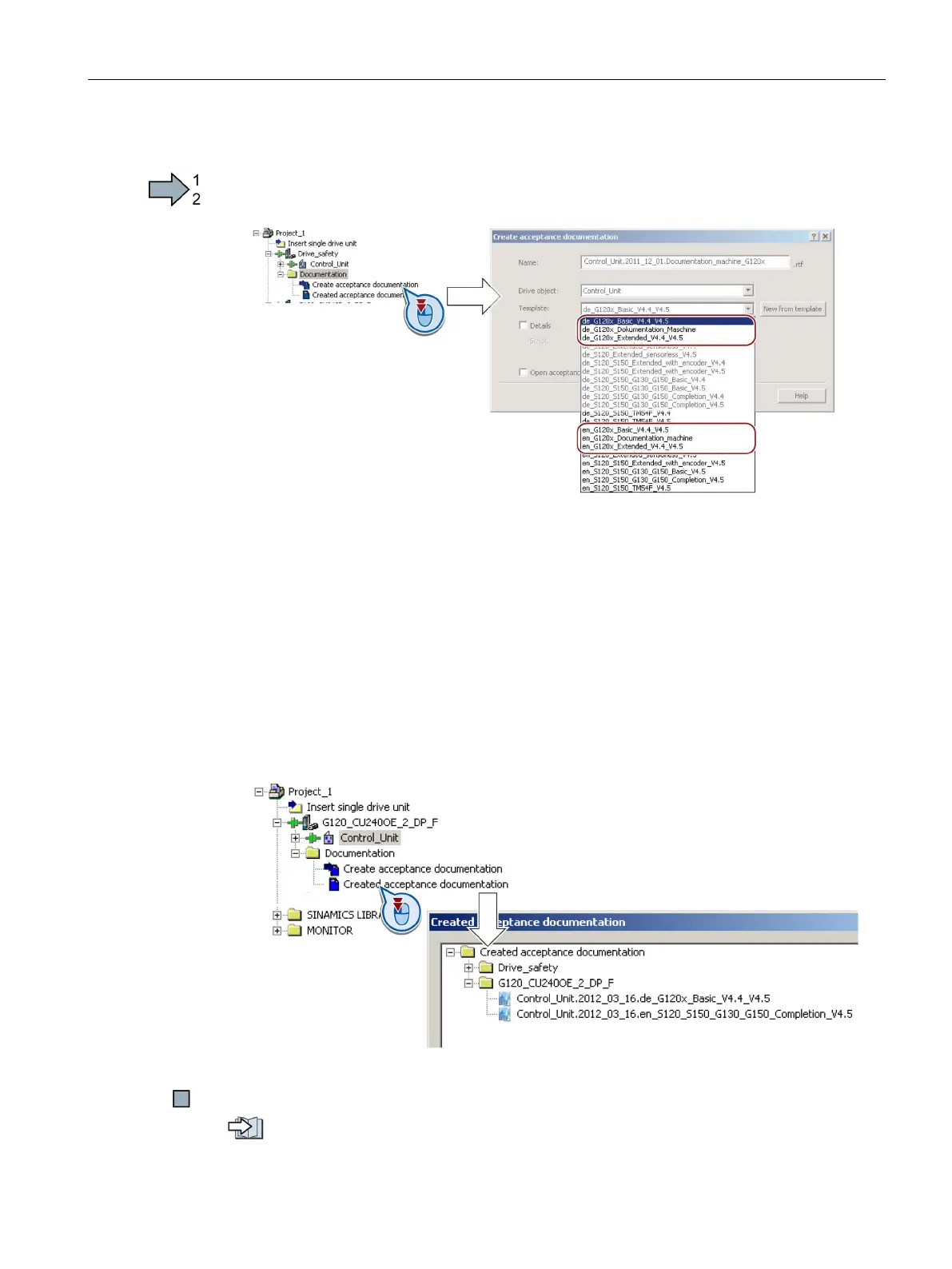

Proceed as follows to create the acceptance documentation for the drive using STARTER:
1. In STARTER, select "Create acceptance documentation":
STARTER has templates in German and English.
2. Select the suitable template and create a report for each drive of your machine or system:
– Template for the machine documentation:
de_G120x_Dokumentation_Maschine: German template.
en_G120x_Documentation_machine: English template.
– Report of the settings for the basic functions, as of firmware version V4.4:
de_G120x_Basicc_V4.4…: German report.
en_G120x_Basic_V4.4…: English report.
3. You load the created reports for archiving and the machine documentation for further
processing:
4. Archive the reports and the machine documentation.
You have generated the documents to accept the safety functions.
Acceptance tests for the safety functions (Page 501)
