Backing up data and series commissioning
7.1 Backing up and transferring settings using a memory card
Converter with the CU240B-2 and CU240E-2 Control Units
358 Operating Instructions, 01/2016, FW V4.7 SP6, A5E34259001B AC
Proceed as follows to transfer settings from a memory card to the inverter:
1. Go online and in your drive, select the "Drive Navigator".
2. Select the "Commissioning" button.
3. Select the button to transfer the data from the memory card to the inverter.

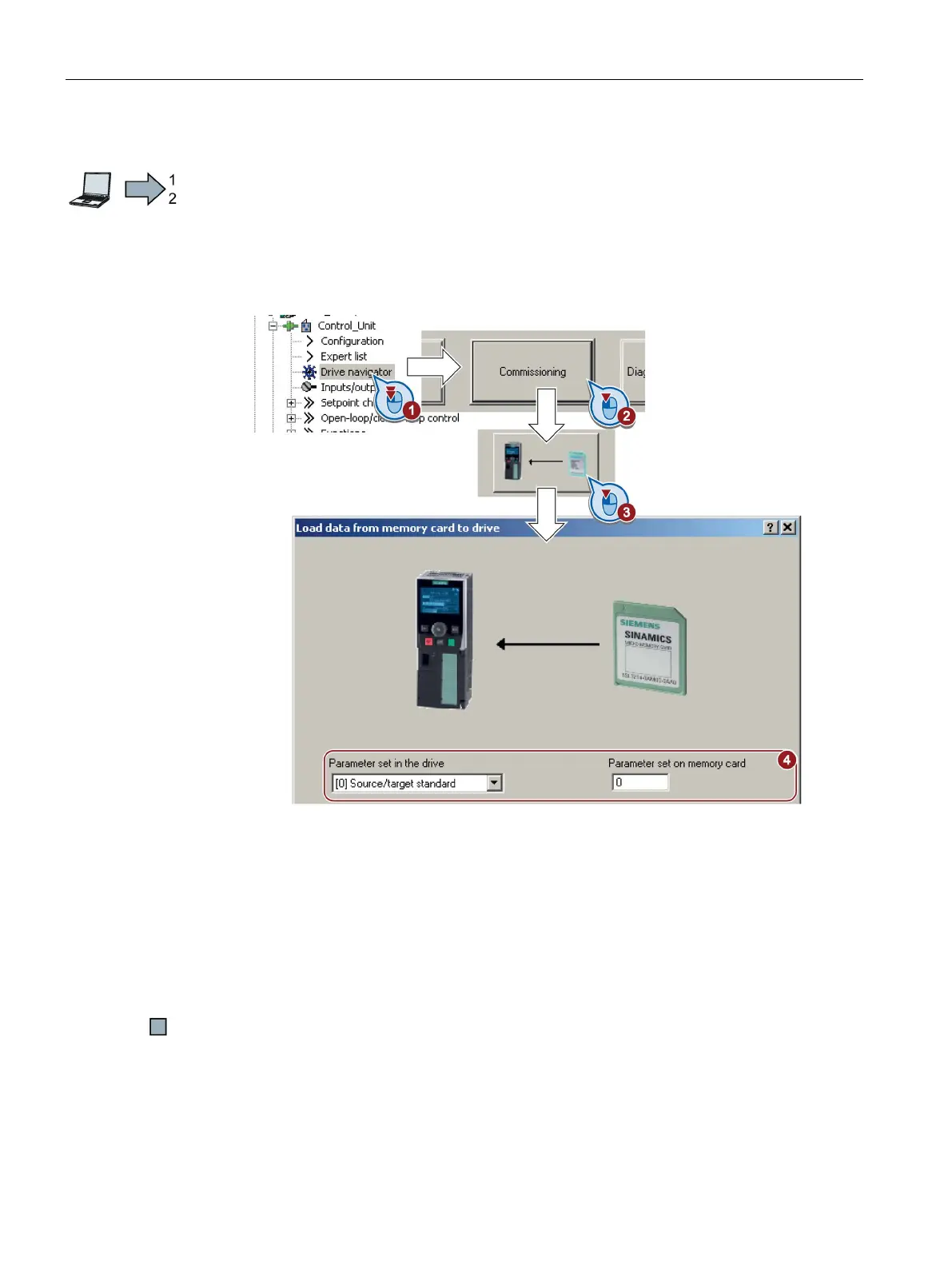

4. Select the settings as shown in the diagram and start the data backup.
5. Wait until STARTER signals that the data backup has been completed.
6. Close the screen forms.
7. Go offline.
8. Switch off the inverter power supply.
9. Wait until all LEDs on the inverter are dark.
10.Switch on the inverter power supply again.
Your settings become effective after switching on.
You have now transferred your settings from a memory card to the inverter.
