Installing
4.4 Installing Power Modules
Converter with the CU240B-2 and CU240E-2 Control Units
Operating Instructions, 01/2016, FW V4.7 SP6, A5E34259001B AC
63

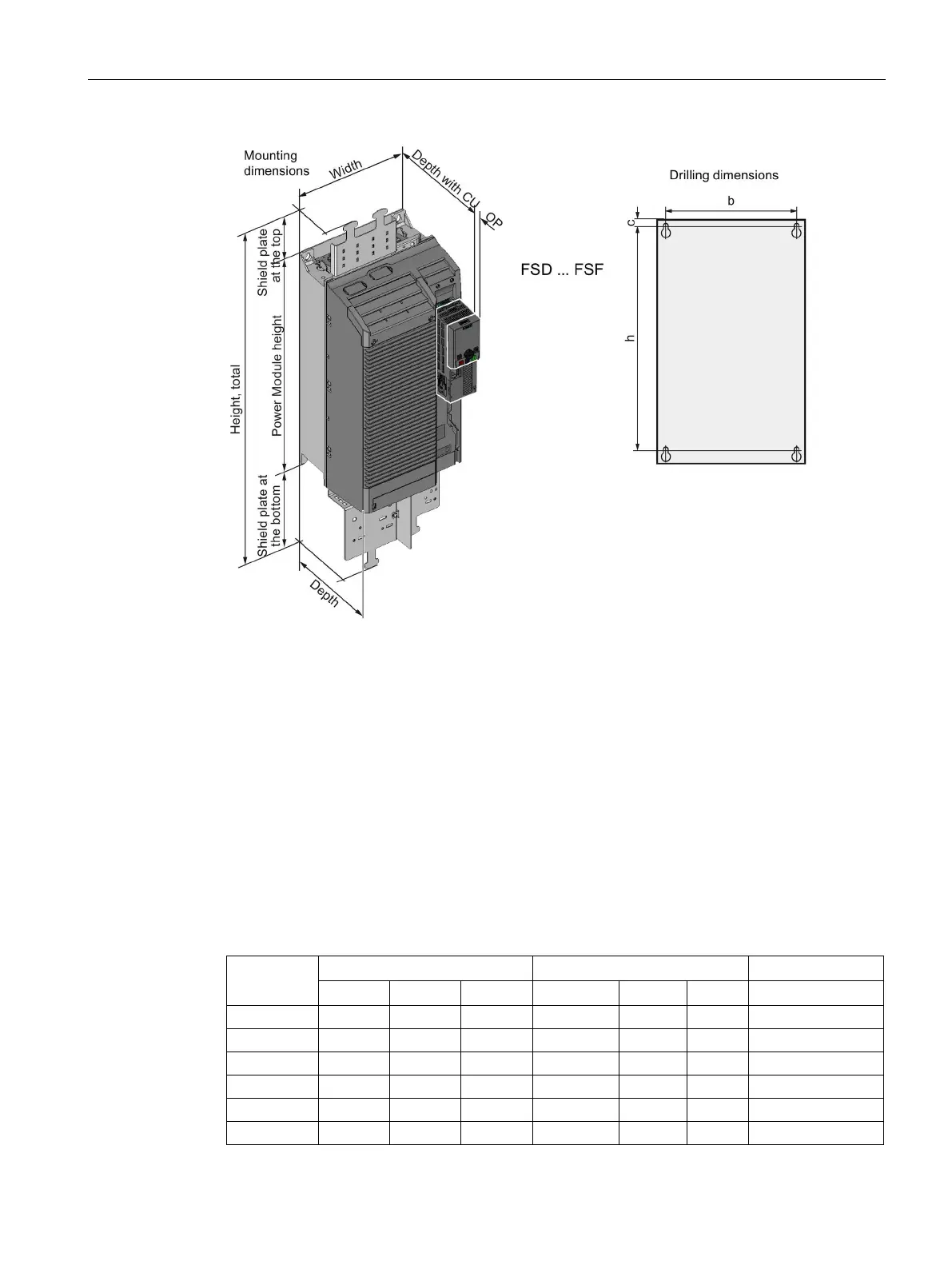

Depth with Control Unit and Operator Panel
FSA … FSC:
•
with Control Unit:
•
With Control Unit and blanking cover / BOP-2:
•
With Control Unit and IOP:
+ 41 mm
+ 52 mm
+ 63 mm
FSD … FSF
•
with Control Unit:
•
With Control Unit and blanking cover / BOP-2:
•
With Control Unit and IOP:
+ 0 mm
+ 10 mm
+ 21 mm
Drilling dimensions and cooling air clearances
Table 4- 2 Drilling dimensions, cooling clearances and fixing
Frame size
Drilling dimensions (mm)
Cooling air clearances (mm)
Fixing
a
b
c
Top
Bottom
Front
Torque [Nm]
FSA
186
62.3
6
80
100
100
3 x M4 / 2.5
FSB
281
80
6
80
100
100
4 x M4 / 2.5
FSC
343
120
6
80
100
100
4 x M5 / 3.0
FSD
430
170
15
300
350
100
4 x M6 / 6.0
FSE
509
230
11
300
350
100
4 x M6 / 10
FSF
680
270
13
300
350
100
4 x M8 / 25
