Tag Detail 3-3SIMATIC PCS 7 OSx 4.1.2 Operator
A Tag Detail Directory lists the configured tags (except the recipe area tags
and the tags that represent the system nodes) and their corresponding
descriptions. The directory lists one tag detail name on each line.
To access the directory of tag detail displays, the operator follows these
steps:
1. Set the system state to Operate. The system displays the navigation
area on all OSx stations where a user is logged in.
2. Select the
Directory icon from the navigation area. The screen displays a
directory o f O Sx disp lay types (Fig u r e 3- 1).
3. Select the
Tag Detail option. The screen displays a list of tags
(Figure 3-1).
4. Select the tag that you want to see. The screen displays the detail for
the tag.
The figures on the following pages illustrate examples of tag detail displays
that the operator can view and change, with the appropriate security
privilege.
Selection List
Incremental
Single Selection
_ACTREQ SYS ACTION REQUEST SYSTEM ALARM
_ALARMING SYS ALARMING SYSTEM ALARM
_ARCHIVING SYS ARCHIVING SYSTEM ALARM
_BATCH SYS BATCH SYSTEM ALARM
_CHANGE_LOG SYS OPERATOR CHANGE LOG SYSTEM
_CONFIG SYS CONFIGURATION SYSTEM ALARM
_DATA_BASE SYS DATABASE SYSTEM ALARM
_DATA_XFER SYS REMOTE DATA TRANSFER ALARM
_DIAGNOSTIC SYS DIAGNOSTICS SYSTEM ALARM
_FO_CIRCUIT SYS FAILOVER CIRCUIT ALARM
_GENERAL SYS GENERAL SYSTEM ALARM
_H1_COMM SYS H1 COMM. SYSTEM ALARM
_HT_COLLECT SYS HT COLLECTION SYSTEM ALARM
_HT_DISPLAY SYS HT DISPLAY SYSTEM ALARM
_HT_UPDATE SYS HTU SYSTEM ALARM
_LIBRARIAN SYS LIBRARIAN SYSTEM ALARM
Incremental
Single Selection
Window Group
Sub Graphic
Graphic
Tag Group
Real Time Trend
Historical Trend
Alarm Group
Recipe
Batch
Report
Tag Detail

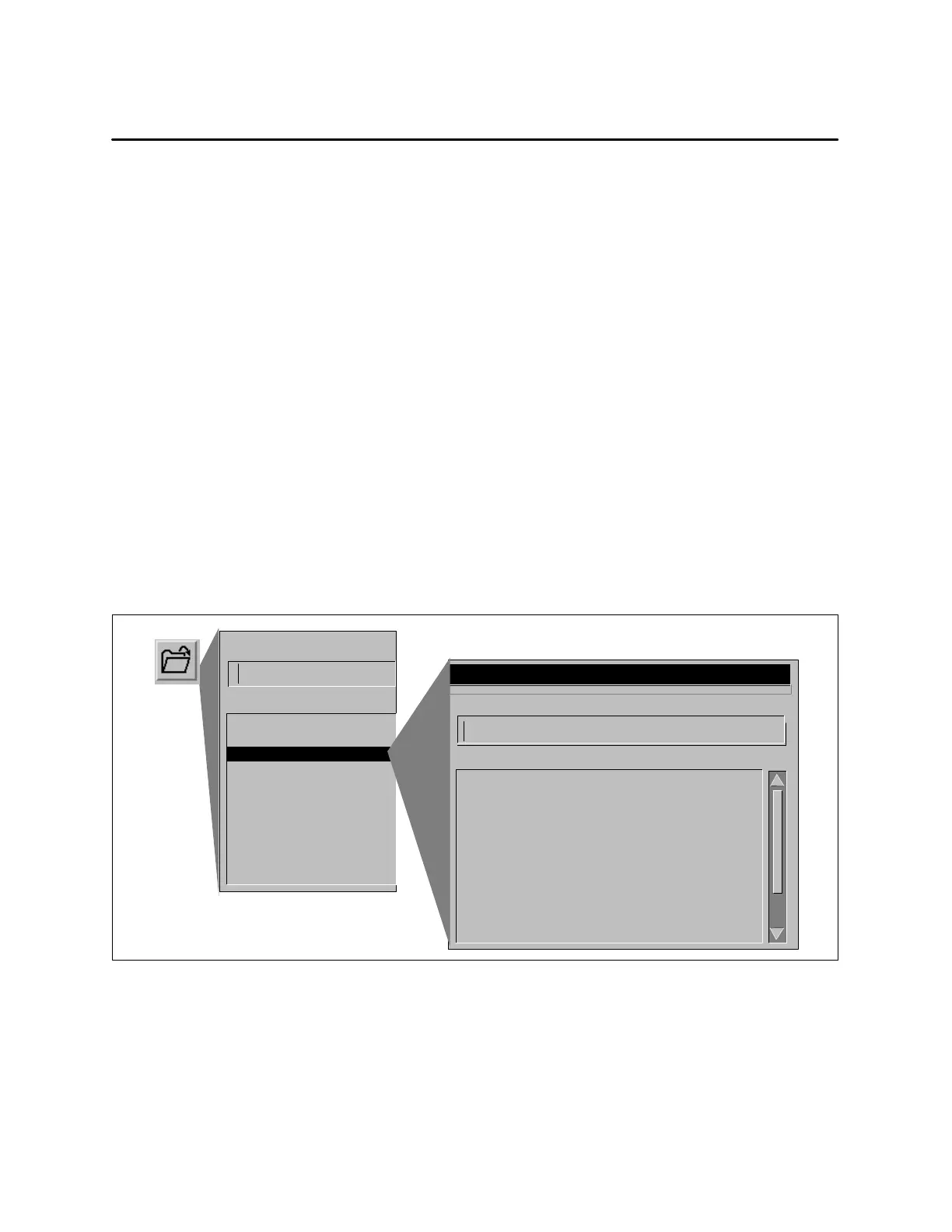

Figure 3-1 Tag Detail Directory
Displaying a Tag
Detail
