Batch 8-15SIMATIC PCS 7 OSx 4.1.2 Operator
8.11 Viewing Batch-Related Tag Groups
To display a tag group of all units assigned to the batch, select Display Units
on the batch tag detail (Figure 8-12). Up to eight unit faceplates appear on
the screen at a time. If a batch has more than eight associated units, OSx
displays a message indicating that only eight of the units are displayed.
Alarm Group:
Alarm State Sequencing:
Alarming:
State:

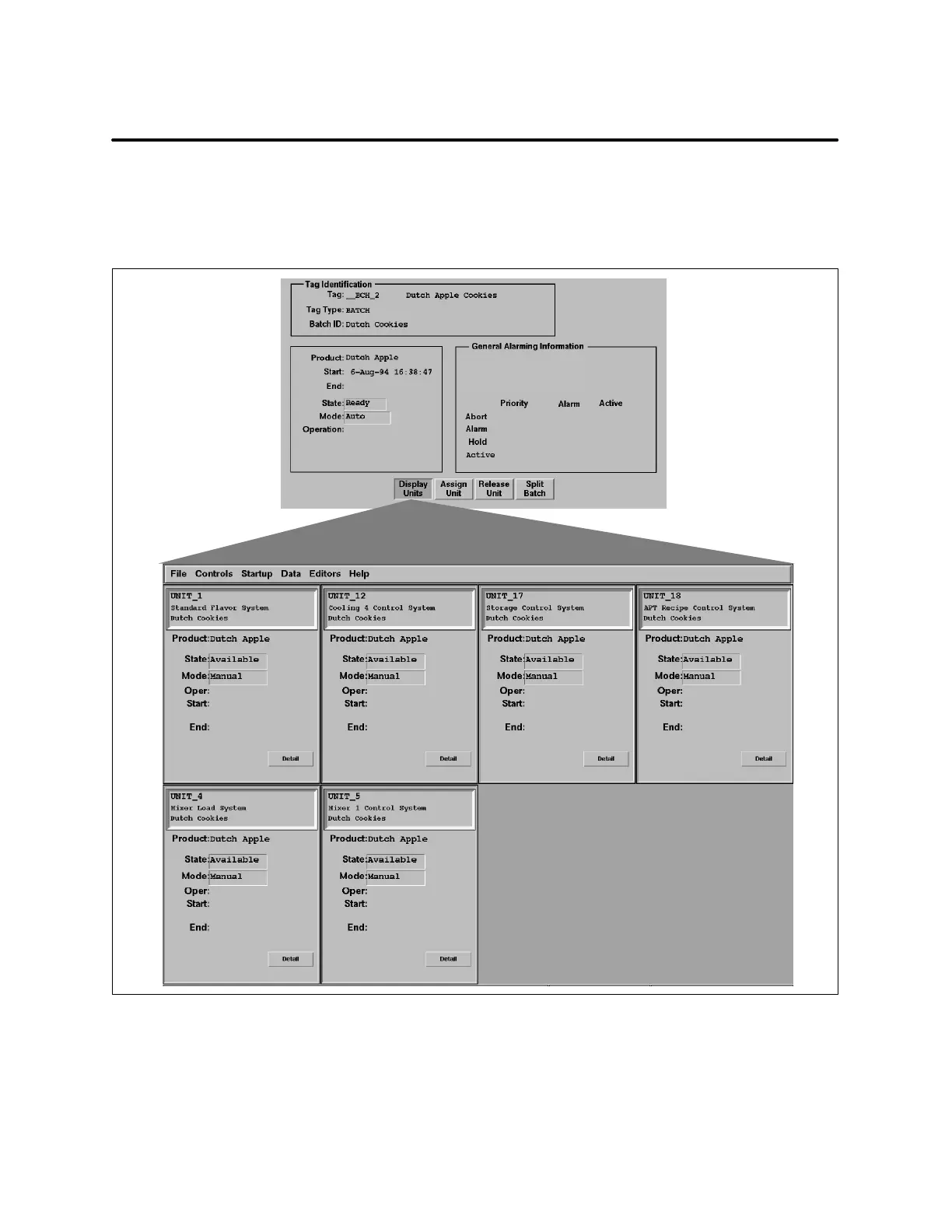

Figure 8-12 Displaying Assigned Units
Displaying UNIT
Tag Groups from
the Batch Detail
