• Full View rescales the graphic display so that it fits in the display area.
For example, if you resize a window to half its original size, only half of
the original graphic display is visible. Clicking on
Full View resizes the
original graphic display so that it is visible in the half-size window.
•
Reset Initial rescales the graphic display to its initial size.
•
Pan To allows you to select the center point for panning a graphic
display. This feature works only when scroll bars appear on the graphic
display, indicating that some parts of the display are hidden from view
(for example, when you have zoomed in on part of the graphic display).
•
Modify Layers brings up the Layer Attributes dialog box, which allows
you to restore the current layers or all layers of graphic displays on
your screen (Figure 1-14).IfyouclickanitemintheLayerListto
highlight it, you can toggle the
Restore Current Layer button to make the
display visible or invisible.

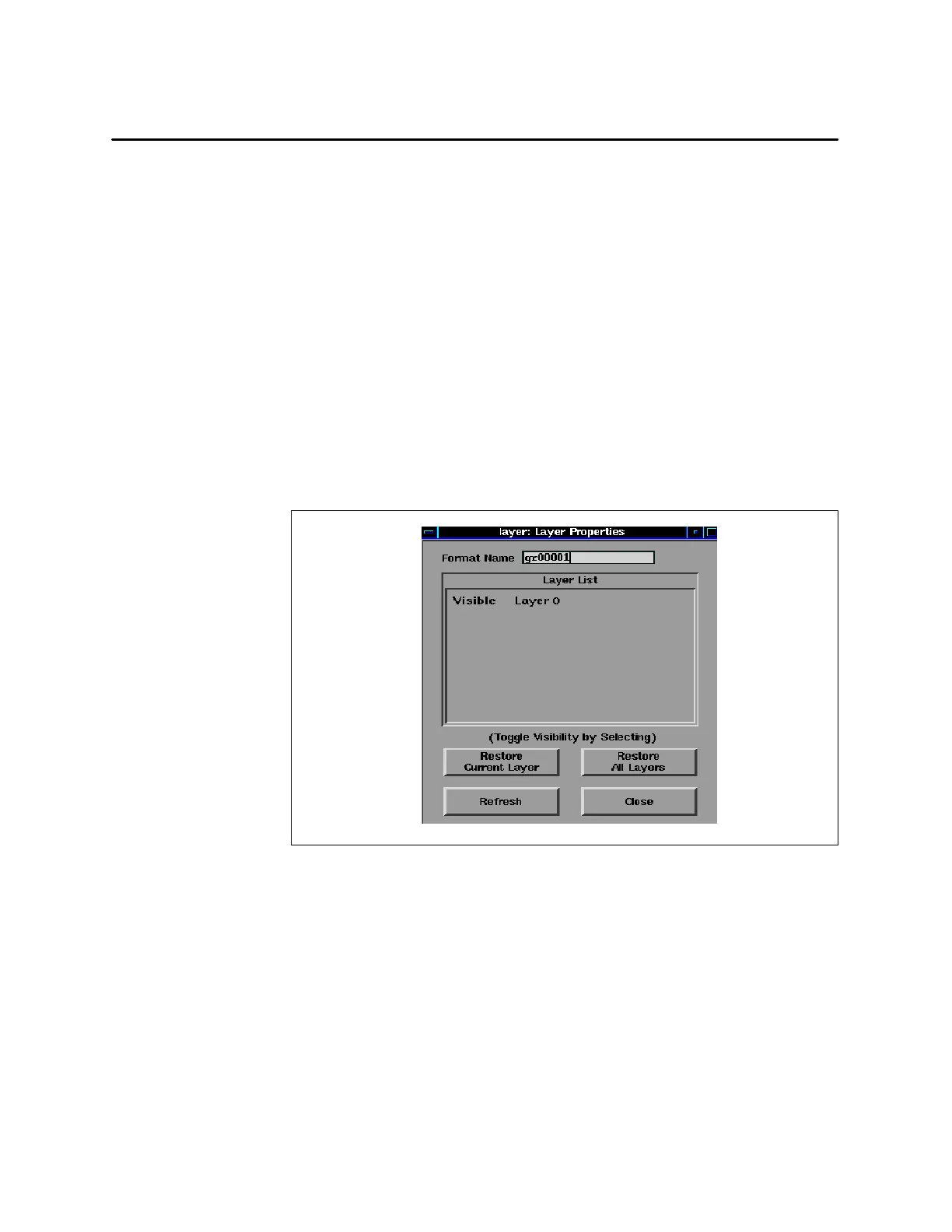

Figure 1-14 Layer Attributes Dialog Box
