Recipes6-4 SIMATIC PCS 7 OSx 4.1.2 Operator
6.2 Selecting Recipes for Download
Before you download recipes, ensure that the system is in the Operate state.
The Recipe Selection display allows the operator to specify the next recipe
for downloading to the designated recipe area. The operator can attach only
one recipe to a recipe area at a time.
To access the Recipe Selection display, follow these steps.
1. Set the system state to Operate. The system displays the navigation
area on all OSx stations where a user is logged in.
2. Select the
Directory icon from the navigation area. A directory of OSx
display types appears (Figure 6-2, middle).
3. Select the
Recipe option. A list of area tags appears (Figure 6-2,right).
4. Select the appropriate area tag. The Recipe Selection display appears
(Figure 6-3).
Window Group
Sub Graphic
Graphic
Tag Group
Real Time Trend
Historical Trend
Alarm Group
Batch
Tag Detail
Single Selection
Report
Recipe

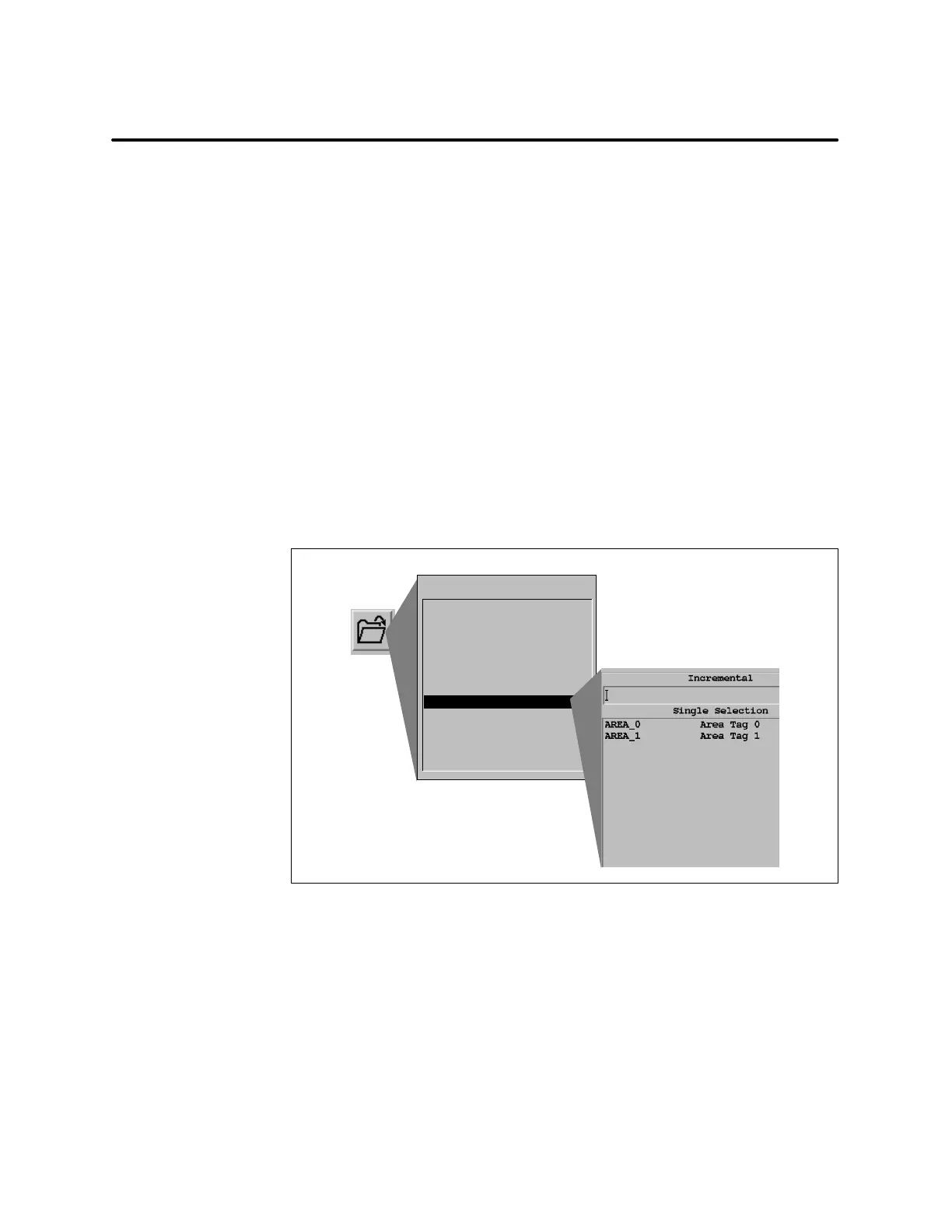

Figure 6-2 Recipe Dire ctory
Preparing to
Download Recipes
Accessing the
Recipe Selection
Display
