Recipes6-6 SIMATIC PCS 7 OSx 4.1.2 Operator
6.3 Downloading a Recipe
The Recipe Selection display allows the operator either to plan recipe
downloads in advance or to select and immediately download a recipe to the
designated recipe area.
To plan a recipe download, follow these steps.
1. Set the system state to Operate. The system displays the navigation
area on all OSx stations where a user is logged in.
2. Select the
Directory icon from the navigation area. A directory of OSx
display types appears (Figure 6-4, middle).
3. Select the
Recipe option. A list of area tags appears (Figure 6-4,right).
4. Select the area tag that you want to download. The Recipe Selection
display appears (Figure 6-5).
5. Select the recipe that you want to download to the selected recipe area.
OSxlinkstherecipetotherecipearea.
6. To exit the Recipe Selection display, click the
Directory icon from the
navigation area and select any item listed.
Window Group
Sub Graphic
Graphic
Tag Group
Real Time Trend
Historical Trend
Alarm Group
Batch
Tag Detail
Single Selection
Report
Recipe

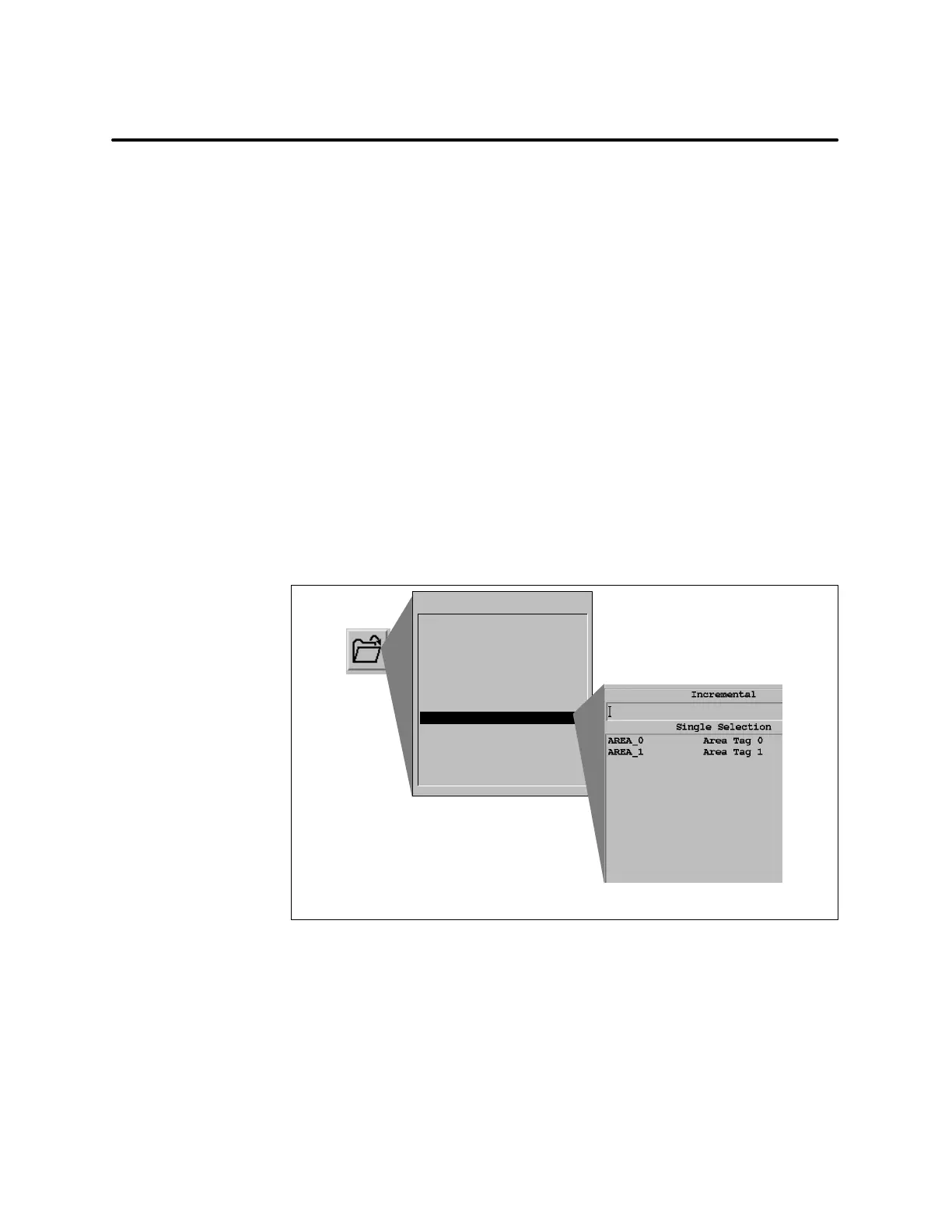

Figure 6-4 Recipe Dire ctory
Planning a Recipe
Download
