Batch 8-17SIMATIC PCS 7 OSx 4.1.2 Operator
To change the operational state of a unit, select State on the unit tag detail.
OSx displays the unit state options (Figure 8-14).
Other functions built into the batch program by the plant engineer can
cause other processes to occur when the operator selects the
State options.
Alarm Group:
Alarm State Sequencing:
Alarming:
State:
Tag: UNIT_1
T ag Type: UNIT
Scan Status: Active
Batch ID: Dutch Cookies
P/C: C1

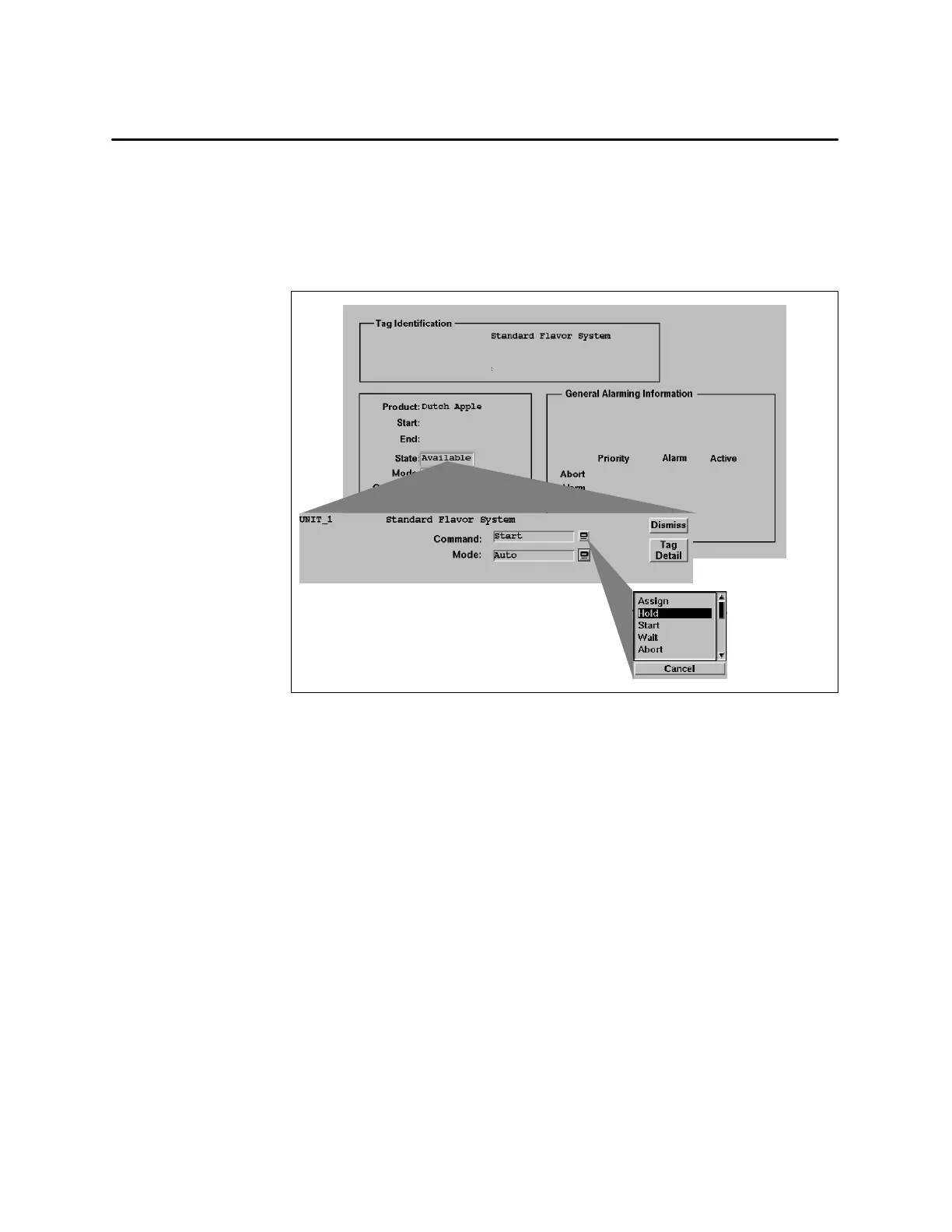

Figure 8-14 Changing Unit Tag State
Changing the State
of a Unit
