Recipes 6-11SIMATIC PCS 7 OSx 4.1.2 Operator
To change scale values before downloading a production recipe, follow these
steps.
1. Click the
Modify Scale pushbutton. The Modify Scale dialog box appears
(Figure 6-8).
2. Enter a new scale value in the appropriate field.

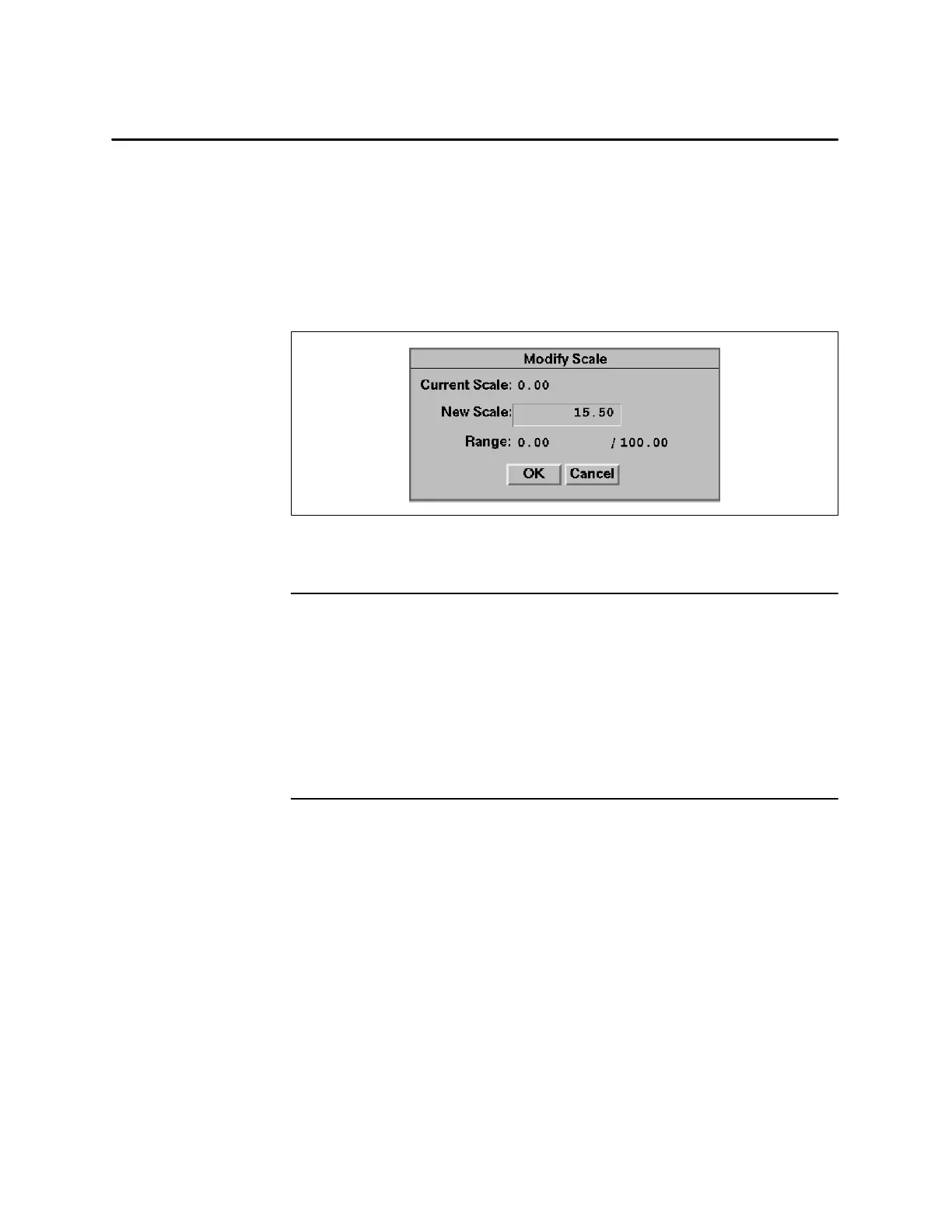

Figure 6-8 Modify Scale Dialog Box
NOTE: When you select OK on the Modify Scale dialog box, OSx applies the
scale factor against the original recipe value that was entered in the recipe
configuration, not against the current value.
If you modify an individual scalable value from the download screen after
OSx applies the scale factor, it is not rescaled.
If you modify an individual scalable value from the download screen before
OSx applies the scale factor, it is rescaled from its original value. The
rescaled value is the value that is downloaded.
Modifying Scale
Values
