Alarms5-8 SIMATIC PCS 7 OSx 4.1.2 Operator
5.2 Alarm Group Display
The Alarm Group Display lists alphabetically all tags within the
corresponding alarm group. For each tag within the group, the highest
priority, most recent alarm is listed. The Alarm Group Display allows the
operator to enable or disable the entire alarm group by toggling the Group
is Enabled/Disabled field.
To view the directory of alarm groups, the operator must follow these steps.
1. Select the
Directory icon from the navigation area (Figure 5-5). A
directory of display types appears.
2. Select the
Alarm Group option. The screen displays a list of alarm
groups.
3. Select the alarm group. The screen displays the alarm group you
selected (Figure 5-6).
Window Group
Sub Graphic
Graphic
Tag Group
Real Time Trend
Historical Trend
Alarm Group
Recipe
Batch
Tag Detail
Single Selection
Report

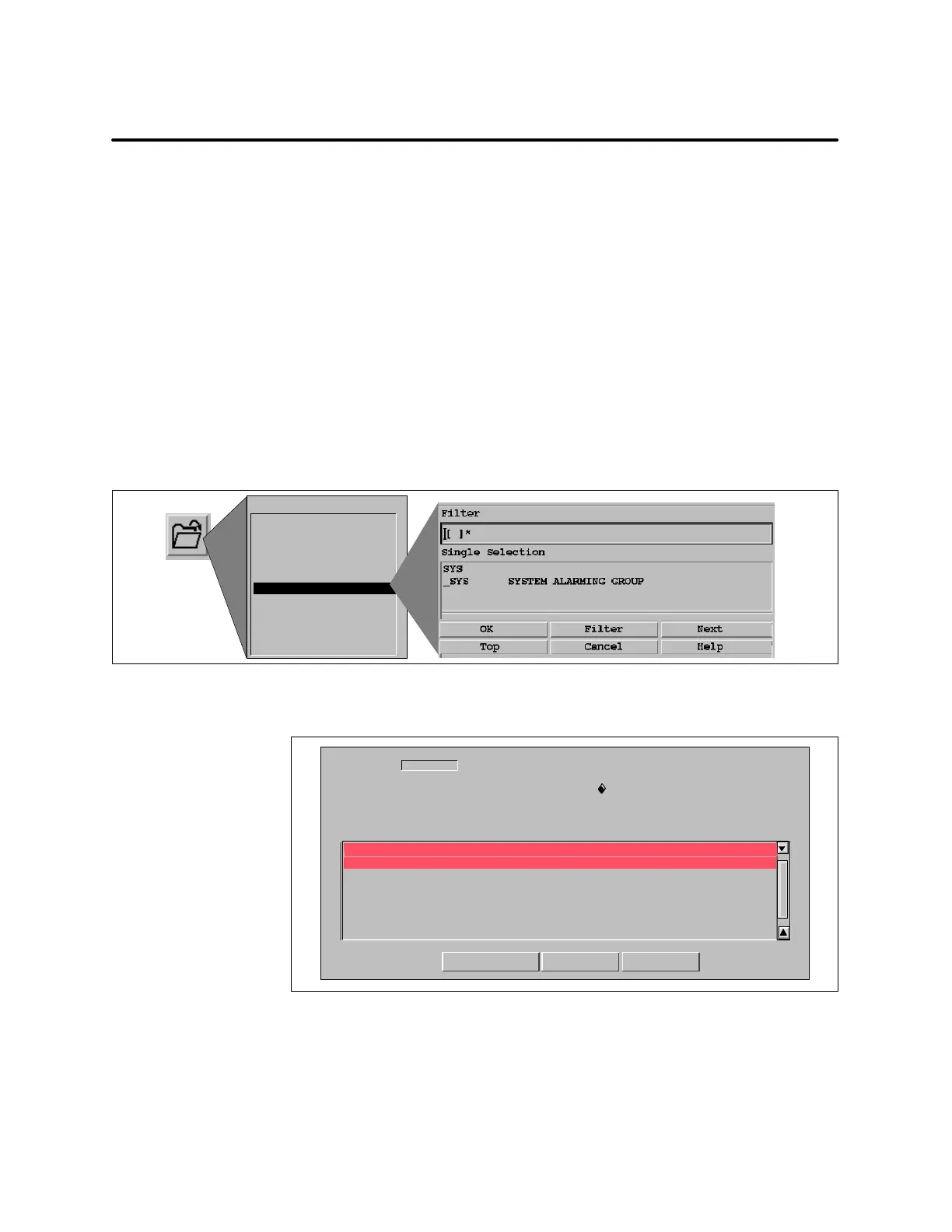

Figure 5-5 Alarm Group Directory Displa y
Group ID:
Batch ID:
State Number:
Group Description:
State:
Group is:
Enabled
Highest
Priority
Tags Tag Description Alarm Type Priority
timer
1
Tags to force alarms
ACTIVE
Close Help
Alarm Summary...
TLP_1 Loop 10 CRITICALHH ALARM
TMTR1_0 CRITICALMixer 1 chilling pump NOTRUNNING
Figure 5-6 Example Alarm Group Display
