Tag Detail 3-7SIMATIC PCS 7 OSx 4.1.2 Operator

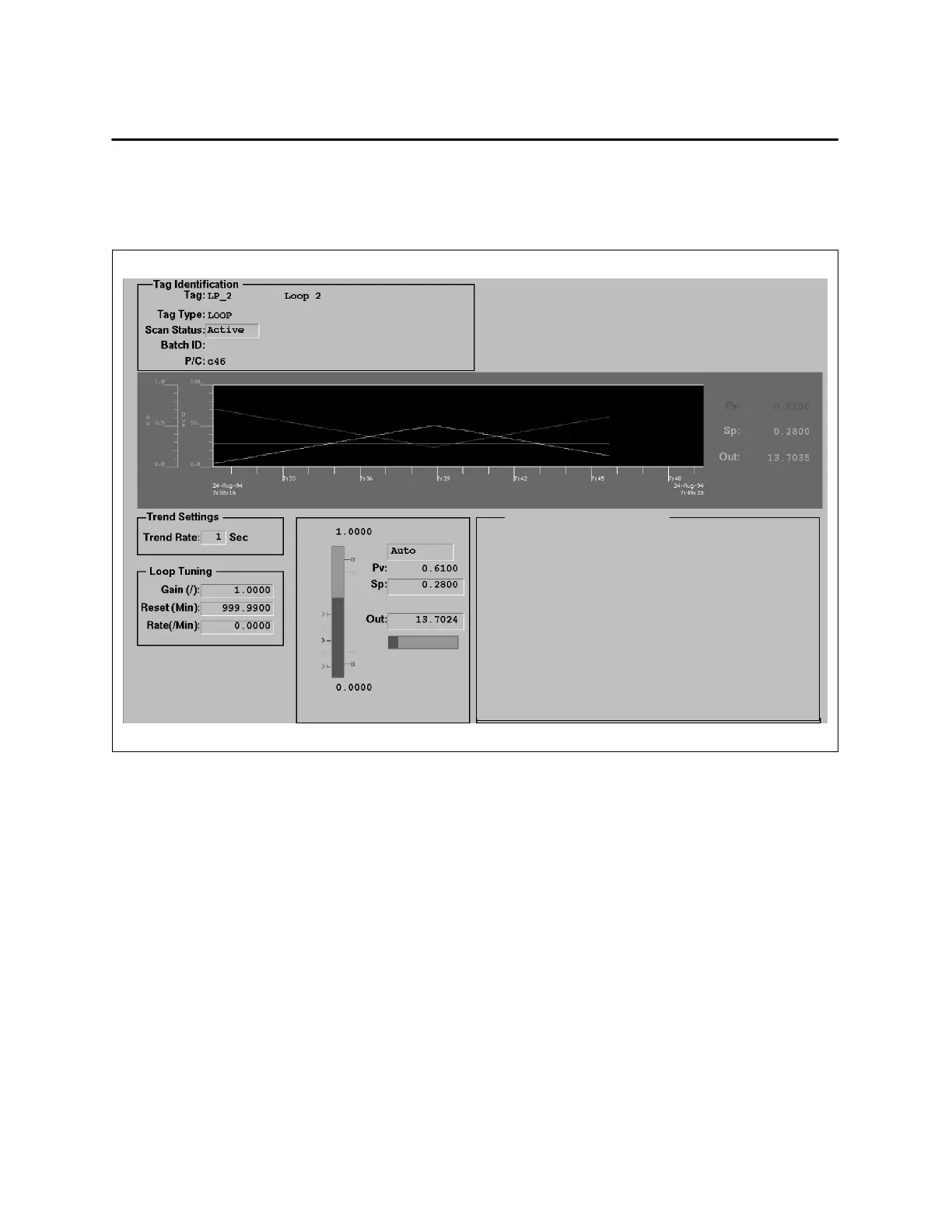

Figure 3-5 shows a typical detail display for a loop tag. An operator with the
appropriate security privilege and process group membership can change
the values of specific attributes in a loop tag detail.
HH Alarm
HAlarm
LAlarm
LL Alarm
Orange
Yellow
ROC A
Bad X
Active
General Alarming Information
Limit Priority Alarm Active
Alarm Group:
Alarm State Sequencing:
Alarming:
State:
Figure 3-5 Loop Tag Detail
Loop Tag Example
