8.12 Viewing the Unit Tag Detail and Faceplate
The unit tag detail enables the operator to monitor the status of a unit.
From the tag detail, an operator can issue commands to a unit if he has the
correct security privilege. To view a unit tag detail, click on
Detail on a unit
faceplate (Figure 8-12), or follow the steps below (Figure 8-13).
1. Select the
Directory icon in the navigation area.
2. Select
Tag Detail from the directory.
3. Select the name of a configured unit tag.
4. Select
OK to display the tag detail.
Selection List
Incremental
Single Selection
_ACTREQ SYS ACTION REQUEST SYSTEM
ALARM
_ALARMING SYS ALARMING SYSTEM ALARM
_ARCHIVING SYS ARCHIVING SYSTEM ALARM
_BATCH SYS BATCH SYSTEM ALARM
_CHANGE_LOG SYS OPERATOR CHANGE LOG SYSTEM
_CONFIG SYS CONFIGURATION SYSTEM ALARM
_DATA_BASE SYS DATABASE SYSTEM ALARM
_DATA_XFER SYS REMOTE DATA TRANSFER ALARM
_DIAGNOSTIC SYS DIAGNOSTICS SYSTEM ALARM
_FO_CIRCUIT SYS FAILOVER CIRCUIT ALARM
_GENERAL SYS GENERAL SYSTEM ALARM
_H1_COMM SYS H1 COMM. SYSTEM ALARM
_HT_COLLECT SYS HT COLLECTION SYSTEM ALARM
_HT_DISPLAY SYS HT DISPLAY SYSTEM ALARM
_HT_UPDA TE SYS HTU SYSTEM ALARM
_LIBRARIAN SYS LIBRARIAN SYSTEM ALARM
OK
Cancel
Filter... Next
HelpTop

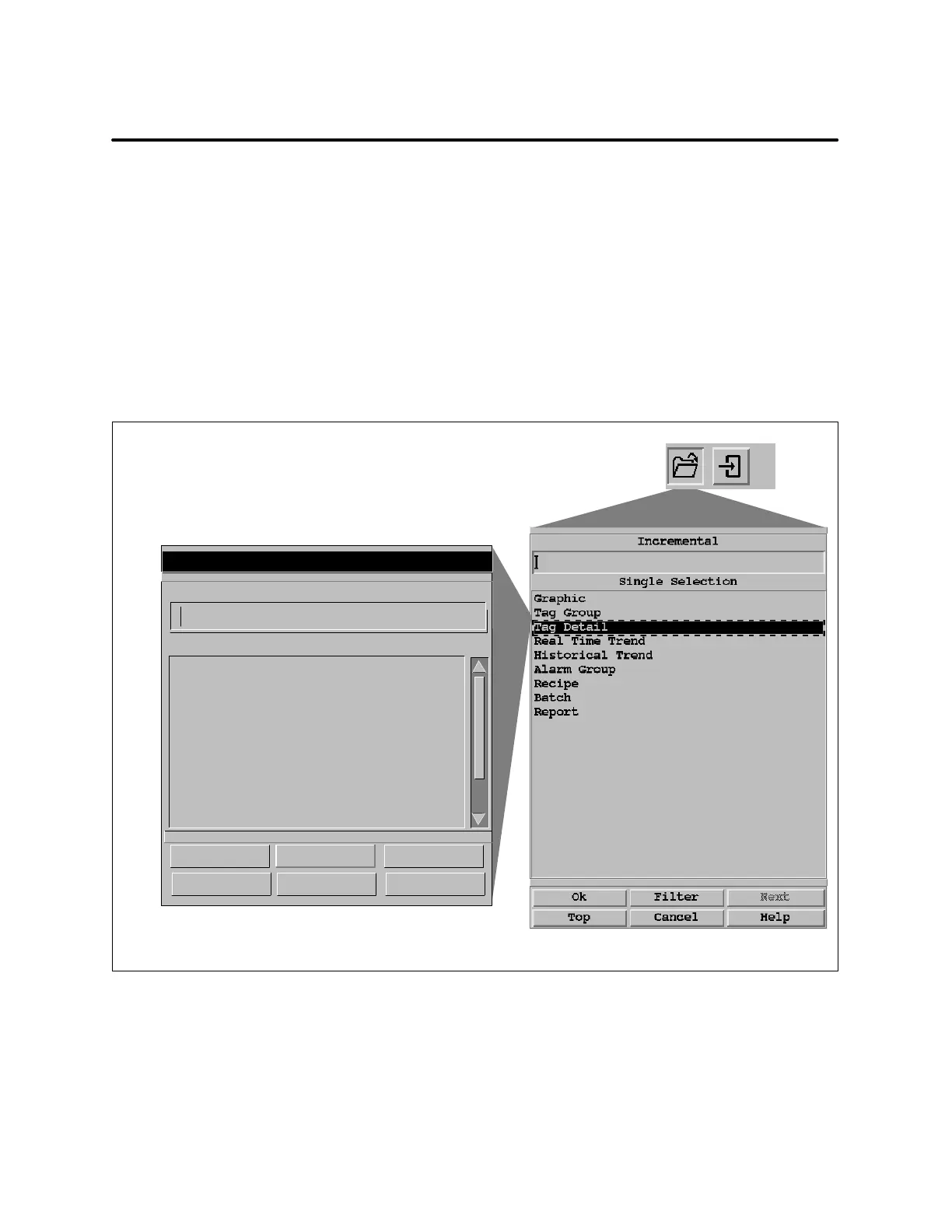

Figure 8-13 Displaying Unit Tag Detail
Viewing Unit Tag
Detail
