OSx Station Basics1-54 SIMATIC PCS 7 OSx 4.1.2 Operator
1.8 Displaying Graphics
The operator can display a graphic from the graphic directory. The directory
lists one graphic name on each line.
To access the directory of graphic displays, the operator follows these steps:
1. Set the system state to Operate. The system displays the navigation
area on all OSx stations where a user is logged in.
2. Select the Directory icon from the navigation area. The screen displays a
directory o f OSx display types (Figure 1-23).
3. Select the Graphic option. The screen displays a list o f graphics
(Figure 1-23).
4. Double-click on the graphic that you want to see. The screen displays
the graphic.
Incremental
Single Selection
mixer1 first stage mixer
mixer2 second stage mixer
reactor42 building 42 reactor
boiler_room utilities boiler
filter1 micron filter
filter2 second stage filter
weigh_scale raw material scale
chiller condensate recovery
Selection List
Incremental
Single Selection
Window Group
Sub Graphic
Tag Group
Real Time Trend
Historical Trend
Alarm Group
Recipe
Batch
Report
Tag Detail
Graphic

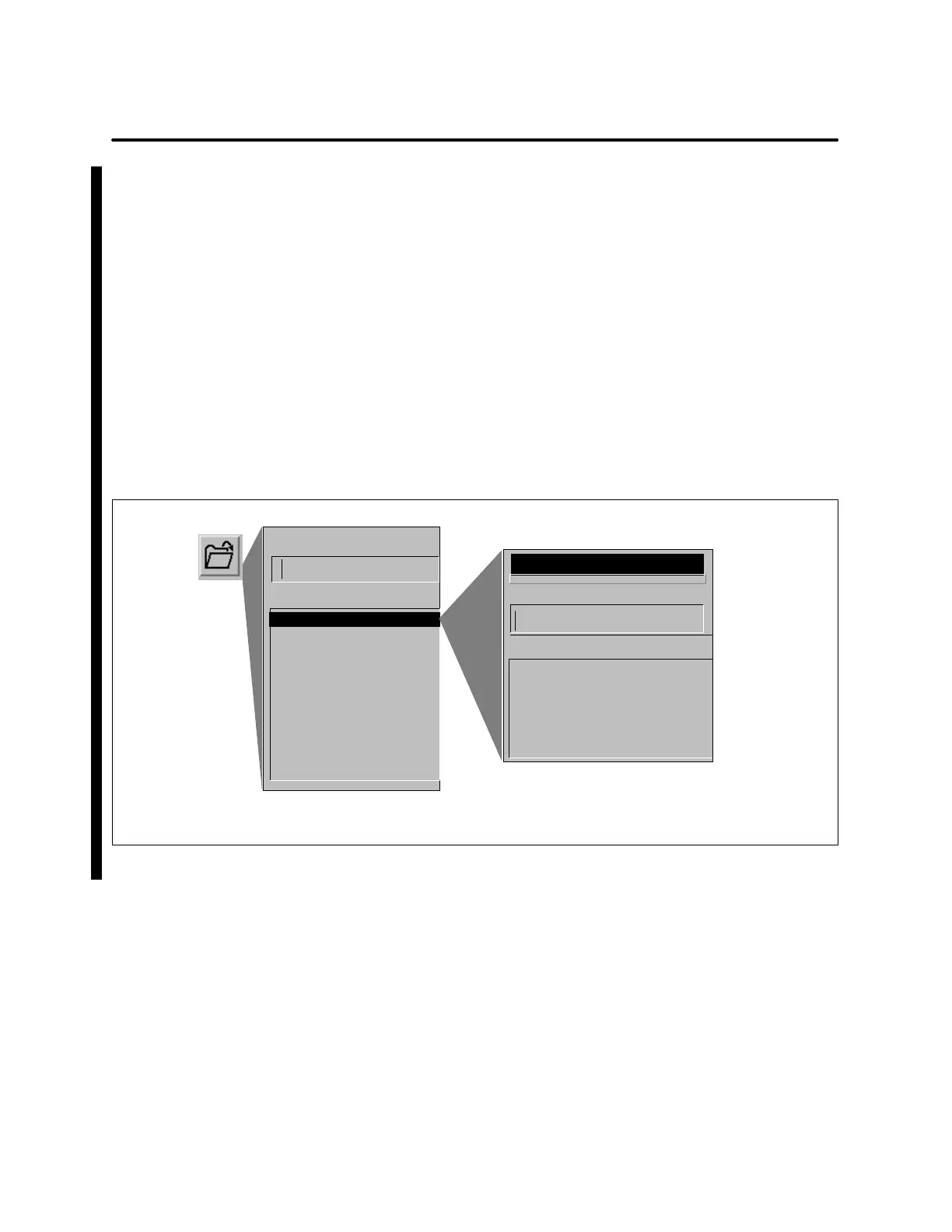

Figure 1-23 Displaying a Gra phic
