Action Requests 7-15SIMATIC PCS 7 OSx 4.1.2 Operator
7.4 Example of Responding to Action Requests
This section describes how to respond to e ach type o f request requiring an
answer for the same example.
The example described below leads the operator step by step through the
process. It shows where each action request is triggered in the process and

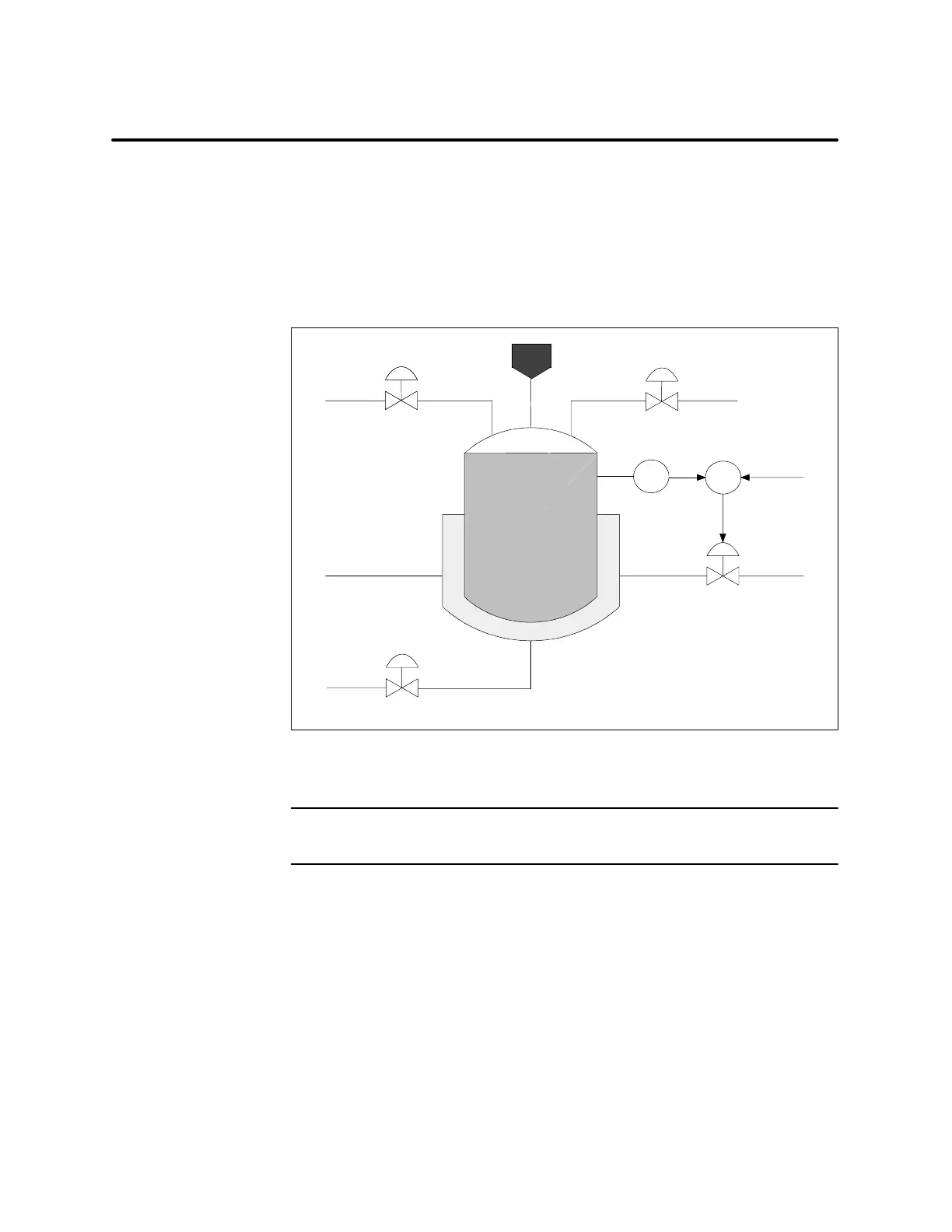

lists procedures for answering each request. Figure 7-6 represents the
process graphic the operator views when the action requests are triggered.
Ingredient A Ingredient B
TIC
TT
Steam SupplySteam Return
Product
Setpoint
Figure 7-6 Sample Reactor Process
NOTE: Before the operator can respond to any of the requests, the system
must be in the Operate state.
