Recipes6-10 SIMATIC PCS 7 OSx 4.1.2 Operator
6.4 Modifying Recipe Component Values
To change component values before downloading a production recipe, follow
these steps.
1. Click the component you want to modify from the Production Recipe
Preparation display. The component selected highlights in reverse
video.
2. Click the
Modify Value pushbutton. The Modify Production Value dialog
box appears (Figure 6-7).
3. Enter a new value in the appropriate field. The values modified appear
on the Production Recipe Preparation display.
Changes or o perator-entered values are recorded on the Operator Change
Log.

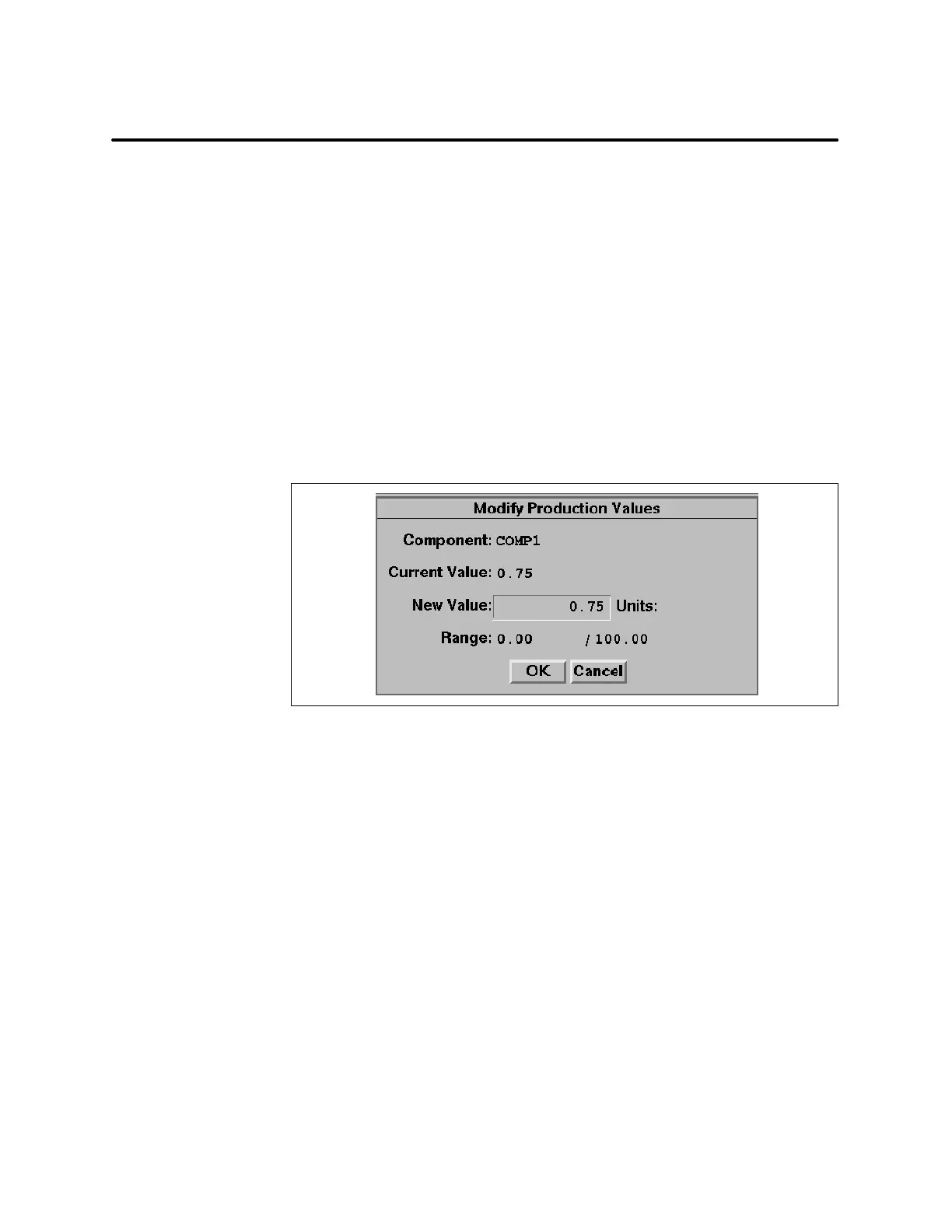

Figure 6-7 Modify Production Value Dialog Box
Modifying
Production Recipe
Values
