OSx Station Control 2-3SIMATIC PCS 7 OSx 4.1.2 Operator

Network Setup

Operations Stations

Name Description State

Control Nodes

Name Description State

Role

Main

Network

Alternate

Network

Connection

Type

Main

Connectio

Alternate

Connection

Controller

Type

Connection

Type

SUPERVIS

ORY

sco23 OFFLINE PRIMARY_ROLE ACTIVE

BLENDER Room 12 blender UNKNOWN UNAVAILABLE S7--416 S7400 Media 1, one CP 443--1UNAVAILABLE

Host Supervisory

UNAVAILABLE

Commands.

View

...

Modify...

Add...

Delect... Cancel

Help

Data Tags

Backup

Data TagsStartup

Backup/Restore

Archive

Calender

Event Preferences

Network Setup

Network Status

Printer

Screen Hierarchy

User Security

Update Files

Date & Time

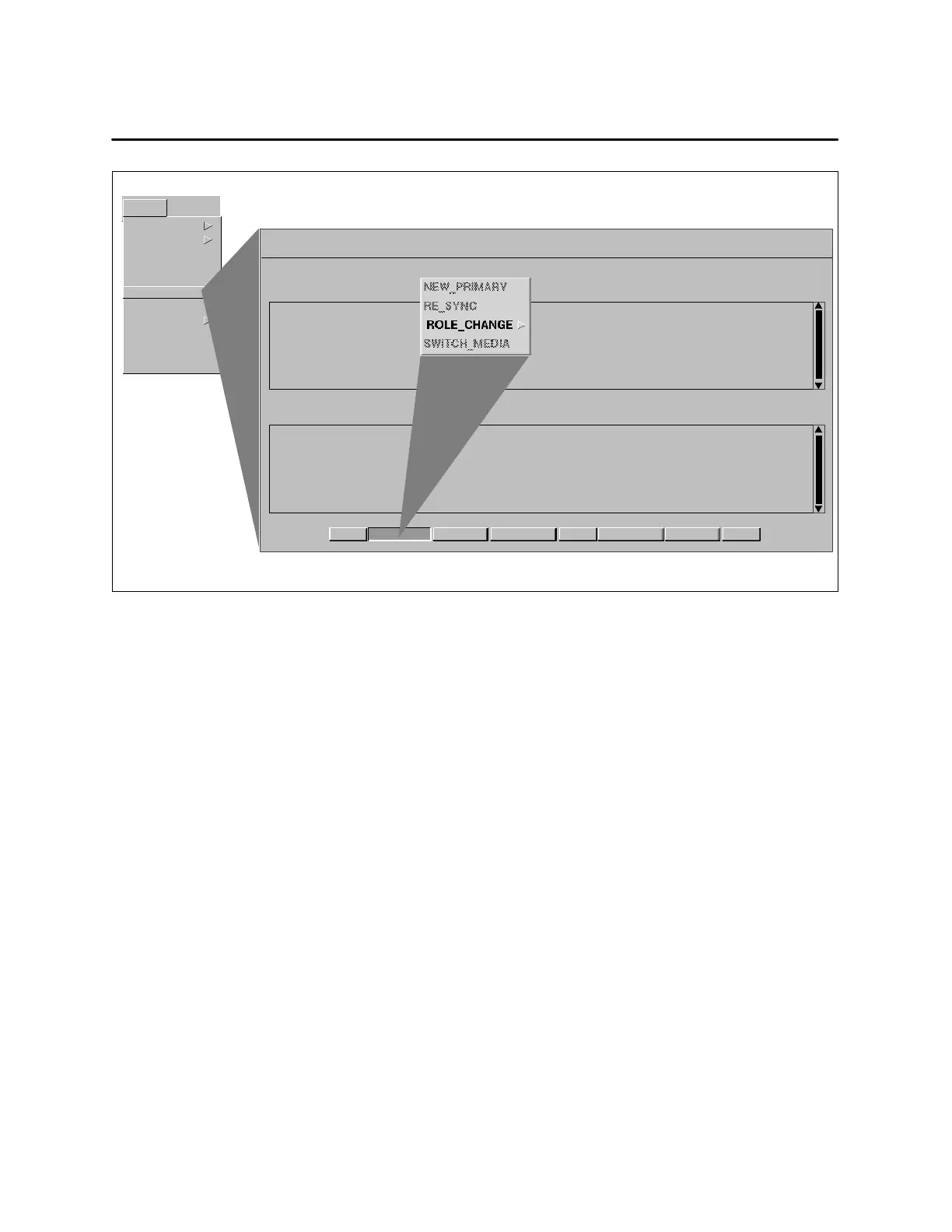

Figure 2-1 Issuing Commands to OSx Stations

Default Chapter7
- Table of Contents7
Preface17
Chapter 1 Osx Station Basics23
- Accessing Menu Bar Functions23
Hardware Overview24
- AC Power Requirements24
- Hardware Components25
- Other Network Nodes26
- Other Network Connections26
- SIMATIC PCS 7 Osx Hardware Components27
PCS 7 Osx Stations28
- Osx Station (Single-Station System)28
- Single Osx Station System Architecture29
- Osx Stations (Multiple-Station System)30
- Multiple-Station System Architecture30
- S7-416 Controllers that Support 12 Osx Stations31
- S7-414 Controllers that Support Eight Osx Stations31
- Other Nodes35
Osx Station Operation Restrictions36
- Customized Files36
- Action Request Display38
- Assigning Deadband Values38
- Terminals and Loss of Primary38
- Accessing Menu Bar Functions40
Tasks Supported by Osx Stations43
- Tasks Supported by an Osx Station Based on Type43
- Tasks Supported by Non-Primary Osx Stations44
Basic System Functions45
- Powering up45
- How to Log on45
- Logon Dialog Box45
- Powering down46
- Shutting down the System46
- Changing System State48
- Osx Change System State Dialog Box50
Operator Keyboard Functions52
- Operator Keyboard52
- Screen Hierarchy Display Keys53
Identifying Screen Areas54
- Main Screen Areas54
- Osx Main Screen and Information Area55
- Navigation Area Icons56
- Displaying the Runtime Directory57
- Navigation Area Display Options57
- Navigation Area Directory57
- Working in Windows58
- Screen Elements59
- Moving and Resizing Windows61
- Layer Attributes Dialog Box63
- Using Navigational Tools to Enter Data64
- Displaying a Short List of Items66
- Displaying a Long List of Items67
- Displaying the Long List Default Screen68
- Locating an Item in a Long List: Incremental Method69
- Using the Tag Filter71
- Filtering Using a Second Variable72
- Resetting to the Original Tag List73
- Displaying Covered Windows75
- Locating an Item from the Directory: Filter Method75
Displaying Graphics76
- Displaying a Graphic76
- Displaying a Window Group77
- Using Function Keys to Display Graphics78
- Using Reflection X79
- Refreshing Graphics that Have Symbols80
Screen Hierarchy81
- Accessing Displays from the Hierarchy81
- Accessing Displays with Screen Hierarchies and Associations81
- Screen Hierarchy82
- Example of a Screen Hierarchy Design82
Chapter 2 Osx Station Control84
Displaying Osx Station Commands84
- Issuing Commands to Osx Stations85
Re_Sync Command86
- Osx Station Status87
Role_Change Command89
- Single-Station System89
- Multiple-Station System90
- Role Change Notification91
- Attempting to Change Roles Without an Active Primary91
- Making Role Changes92
- Role Changes Possible for an Osx Station94
- Role Change, Reports, BCL, and RDT95
- Automatic Role Changes96
New_Primary Command98
Switch_Media Command99
Handling a Failover100
- What Is Failover100
- When Failover Occurs100
- Failover Configuration for a Multiple-Station System101
Chapter 3 Tag Detail103
Tag Detail Displays104
- Defining a Tag104
- Displaying a Tag Detail105
- Tag Detail Directory105
- Changing Tag Detail Values in the Operate State106
- Tag Detail Display106
- Tag Detail Command Form107
Tag Detail Examples108
- Digital Output (DO) Tag Example108
- Digital Output Tag Detail108
- Loop Tag Example109
- Loop Tag Detail109
Tag Group Displays110
- Displaying a Tag Group111
- Tag Group Directory111
- Tag Group Display112
Chapter 4 Trends113
Displaying Trend Data114
- Accessing the Trend Directory114
- Real-Time Trend Displays114
- Historical Trend Displays116
- Doubling the Size of Trend Displays118
- Changing the Time Base or Range120
- Refreshing a Trend121
Displaying Trend Data in a Graphic122
Reading Disk Space Information123
Chapter 5 Alarms125
Alarm Notification and Acknowledgment126
- Alarm Priority Indicators126
- Alarm Acknowledgment by Priority130
Alarm Group Display132
Alarm Mini-Windows134
Alarm Log136
- Alarm Log Entry Types and Alarm Priorities137
System Alarms138
Alarms and Osx Station Synchronization140
Chapter 6 Recipes141
Introduction141
- Controller Recipes141
- Osx Recipes141
- Identifying Recipe Areas141
Selecting Recipes for Download144
- Preparing to Download Recipes144
- Accessing the Recipe Selection Display144
Downloading a Recipe146
- Planning a Recipe Download146
- Clearing the Selected Recipe147
- Loading a Recipe148
Modifying Recipe Component Values150
- Modifying Production Recipe Values150
- Modifying Scale Values151
- Loading a Production Recipe152
- Printing a Production Recipe152
- Canceling a Download Request152
- Suspending a Recipe Download152
- Continuing a Recipe Download152
Chapter 7 Action Requests154
Understanding Action Requests154
- Introduction154
Monitoring Action Requests155
- General Guidelines155
- Action Request Mini-Windows157
Responding to Action Requests158
- Selecting the Action Request Icon158
- Responding to an Action Request161
- General Guidelines for Answering an Action Request163
- Action Requests During Osx Station Synchronization163
- Responding to Different Action Request Types164
- Multi-Choice165
- Acknowledge165
- Enter Value166
- View166
- Event Log166
Example of Responding to Action Requests167
- Starting the Process168
- Answering the BATCH_SELECT Action Request168
- Adding a Catalyst to the Reactor Tank169
- Filling the Reactor Tank169
- Answering the SET_TEMP Action Request170
- Heating the Mixture171
- Finishing the Process171
Chapter 8 Batch173
Assigning a Batch174
Displaying a List of Active Batches177
Displaying the Active Batch Tag Group178
Viewing the Operation of an Active Batch179
- Synchronizing During Program Execution179
- Viewing Batch-Related Graphics179
- Viewing a Batch Tag Detail179
Assigning Batch Units180
Releasing Batch Units181
Changing Batch State182
- Changing the State of a Batch182
- Starting a Batch182
Changing Batch Mode183
Splitting a Batch184
Ending a Batch185
- Completing or Aborting a Batch185
- Removing a Batch186
Viewing Batch-Related Tag Groups187
- Displaying UNIT Tag Groups from the Batch Detail187
Viewing the Unit Tag Detail and Faceplate188
- Viewing Unit Tag Detail188
- Changing the State of a Unit189
- Changing the Mode of a Unit190
- Viewing the Unit Faceplate191
Chapter 9 Reports193
Displaying the Reports Directory194
- Accessing the Reports Directory194
- Selecting a Report Format195
Copying and Deleting a Report196
- Copying a Report196
- Deleting a Report197
Scheduling a Report198
- The Report Scheduler198
- Accessing the Scheduler198
- Scheduler Fields200
- Suspending or Activating a Report201
- Scheduling a Report by Time202
- Scheduling a Report by Event206
- Adding a New Schedule207
- Showing the Next Schedule207
- Scheduler Example207
- Editing and Saving a Schedule207
Setting the Report Output Destination208
Printing a Format209
Previewing a Report210
- Printing a Previewed Report213
- Error Messages213
- Viewing Error Files213
Report Output Directory214
- Displaying the Report Output214
- Viewing a Report Output216
- Printing an Output218
- Deleting an Output220
- Advanced Task References221
