Batch 8-5SIMATIC PCS 7 OSx 4.1.2 Operator
8.2 Displaying a List of Active Batches
In the Operate state, OSx enables the operator to display a directory of all
active batches. A batch is active when the operator associates a batch with a
product and commits the batch (Section 8.1). To display the Active Batch
Directory, select
Batch from the Directory icon in the navigation area
(Figure 8-3).
When the operator selects a batch ID, OSx displays the graphic that the
BCL program associated with that batch. If a batch ID does not have an
associated graphic, OSx displays the corresponding batch tag detail.

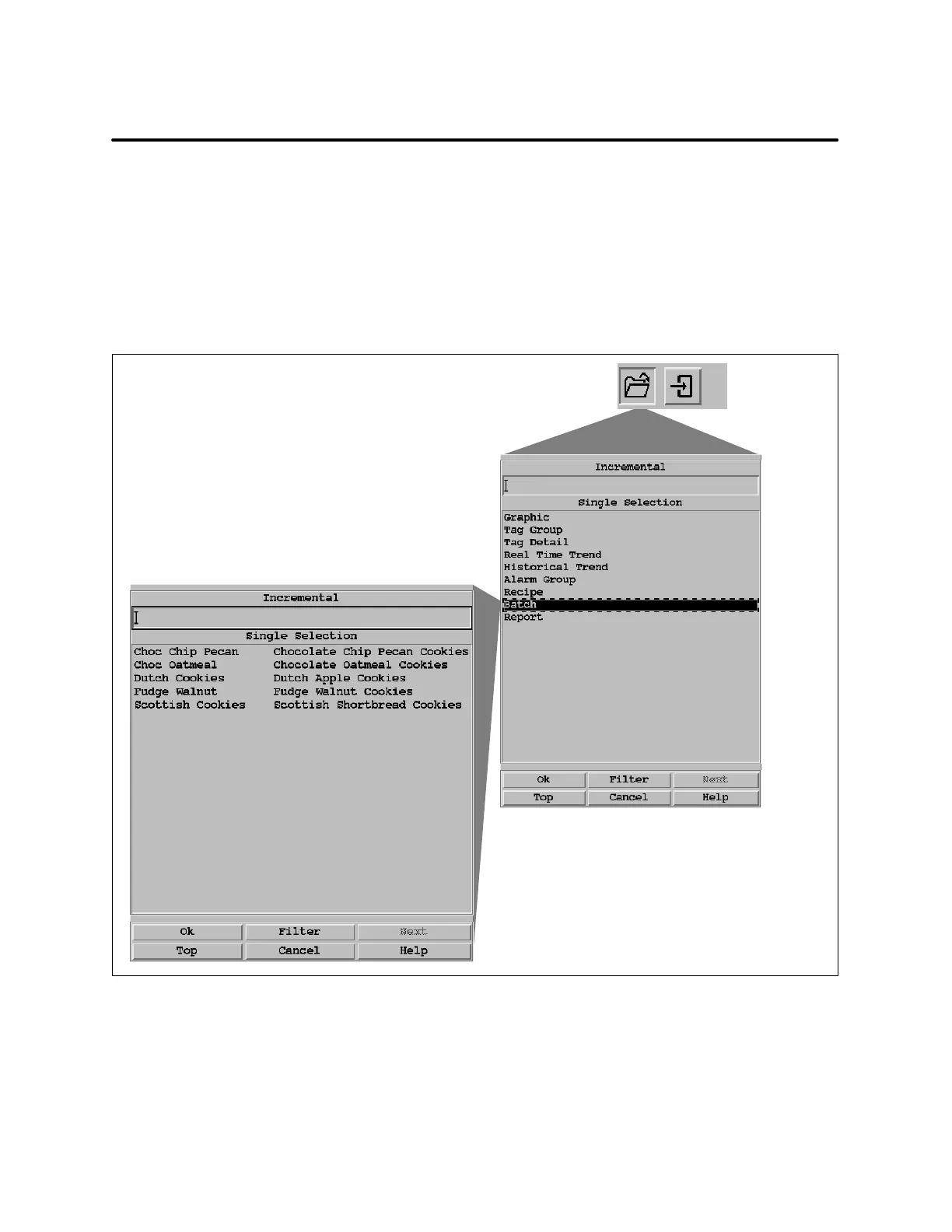

Figure 8-3 Active Batch Directory Example
