Tag Detail3-6 SIMATIC PCS 7 OSx 4.1.2 Operator
3.2 Tag Detail Examples

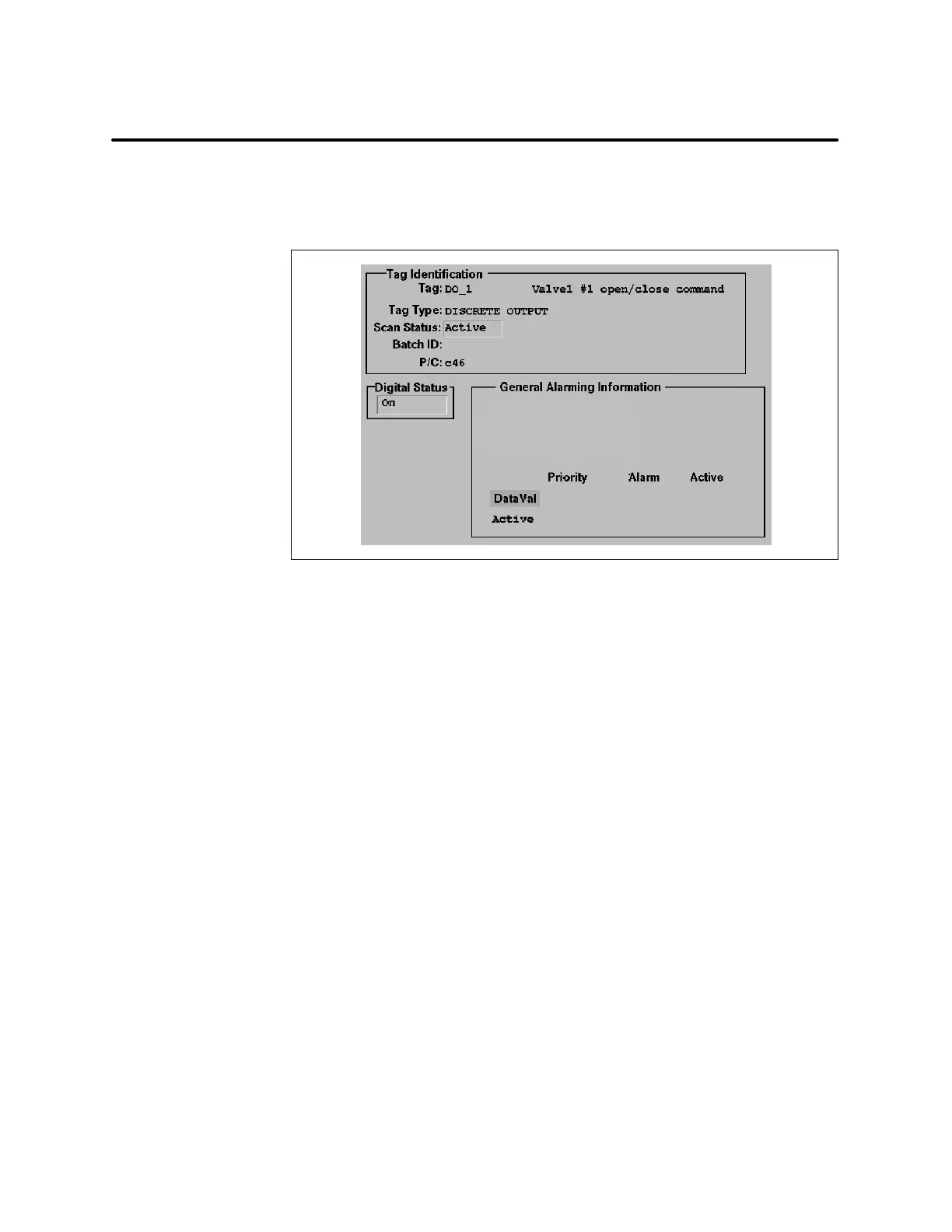

Figure 3-4 shows a typical detail display for a digital output tag. An
operator with the appropriate security privilege and process group
membership can change the values of specific attributes in a DO tag detail.
Alarm Group:
Alarm State Sequencing:
Alarming:
State:
Figure 3-4 Digital Output Tag Detail
Digital Output (DO)
Tag Example
