Alarms5-10 SIMATIC PCS 7 OSx 4.1.2 Operator
5.3 Alarm Mini-Windows
OSx enables the engineer to configure two scrollable mini-windows for any
graphic in the Operate state that show the active alarms and action
requests associated with that graphic. As long as the mini-windows have
been configured for a graphic and are enabled, the system displays them
automatically whenever you open that graphic (Figure 5-7). If a graphic is
already displayed when you enable mini-windows, you must close and
reopen the graphic for the mini-windows to be visible.
Alarm Mini-Window Action Request Mini-Window
File Controls Startup Data Tags Editors Help

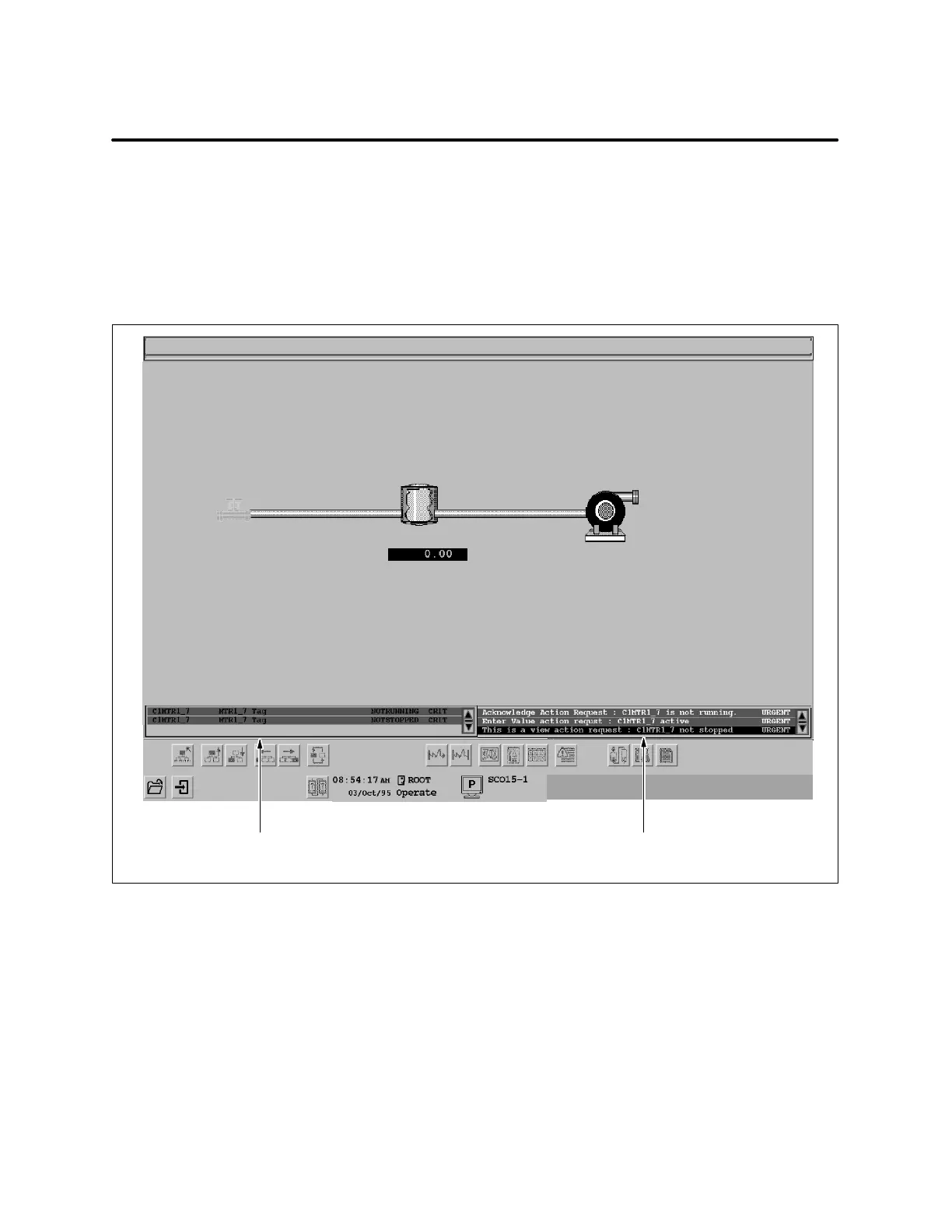

Figure 5-7 Mini-Windows Displayed in Operate State
