Batch8-8 SIMATIC PCS 7 OSx 4.1.2 Operator
8.5 Assigning Batch Units
To assign one or more units to a batch from the batch tag detail, follow these
steps:
1. Select
Assign Unit. A list of unassigned units displays in the navigation
area (Figure 8-6). Use the scroll bar to view multiple pages of units.
2. Select the unit(s) you want to assign to the batch. Use the scroll bar to
view multiple pages of units.
3. Select
OK to assign the units or select Cancel not to assign any units.
Alarm Group:
Alarm State Sequencing:
Alarming:
State:

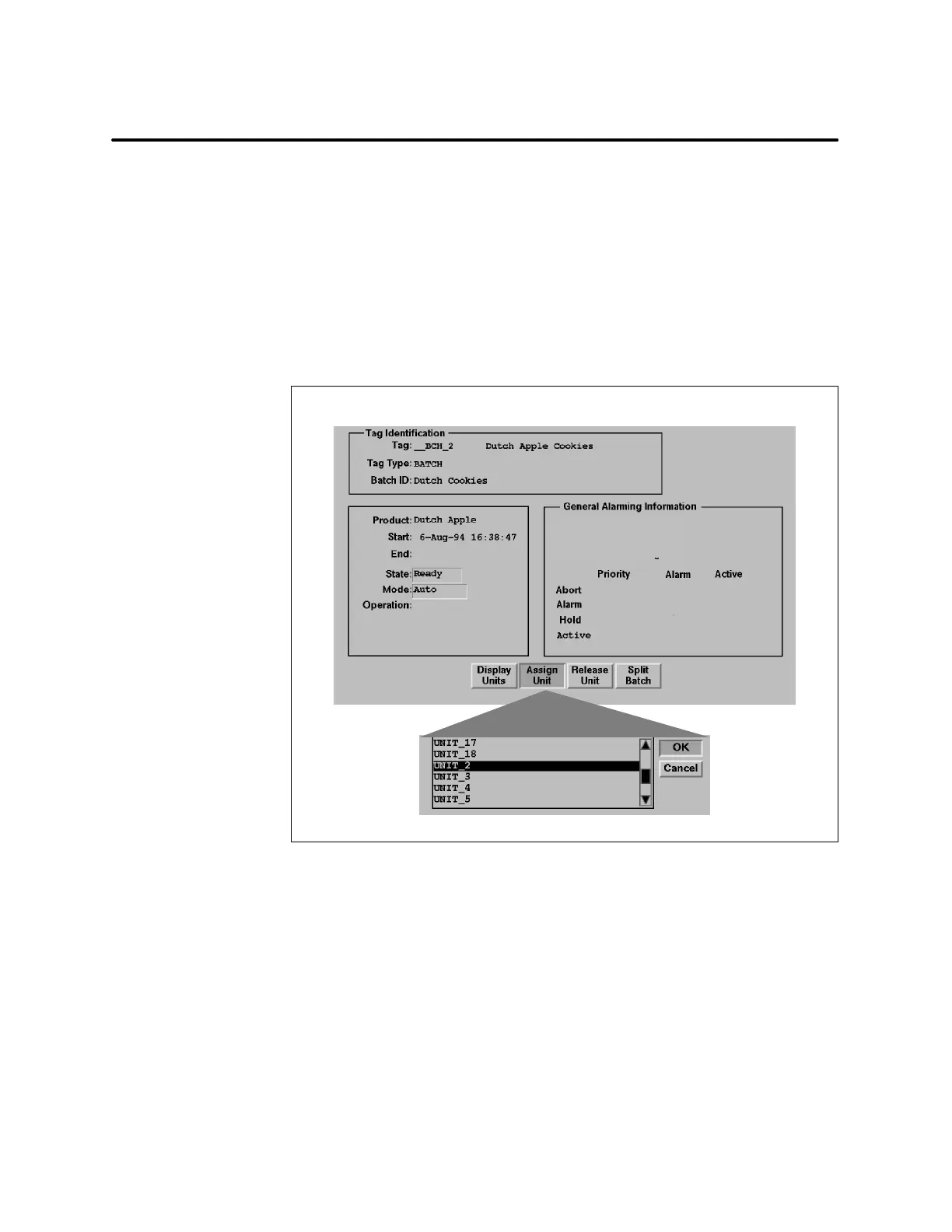

Figure 8-6 Assigning Units to a Batch
