Tag Detail 3-9SIMATIC PCS 7 OSx 4.1.2 Operator
A Tag Group Directory lists all configured tag groups and their
corresponding descriptions. The directory lists one tag group on each line.
To view the directory of tag groups, follow these steps.
1. Set the system state to Operate. The system displays the navigation
area on all OSx stations where a user is logged in.
2. Select the
Directory icon from the navigation area (Figure 3-7). The
screen displays a directory of display types.
3. Select the
Tag Group option. The screen displays a list of tag groups.
4. Either select a tag group or enter a tag group name and press
OK.The
screen displays the tag group selected (Figure 3-8).
Window Group
Sub Graphic
Graphic
Tag Group
Real Time Trend
Historical Trend
Alarm Group
Recipe
Batch
Tag Detail
Single Selection
Report

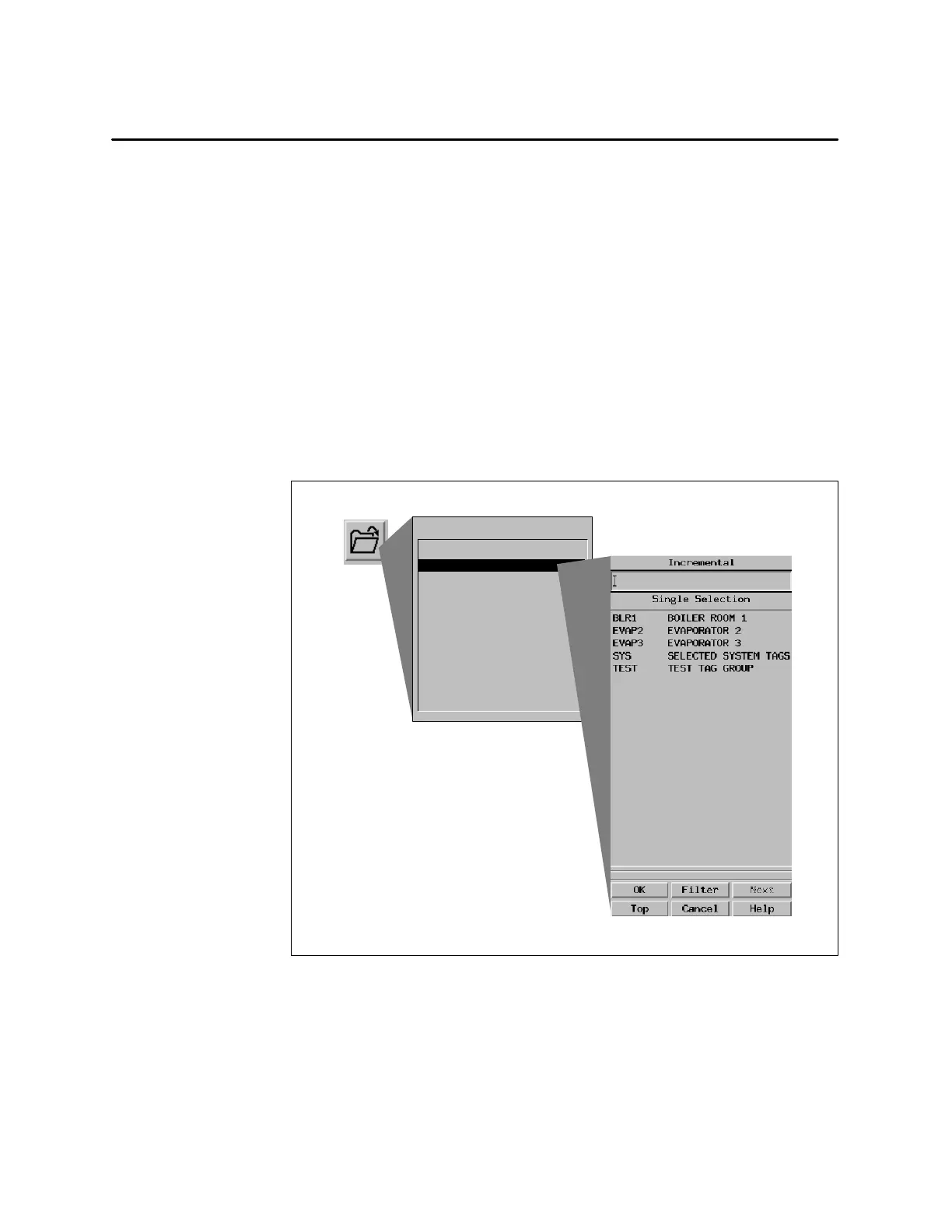

Figure 3-7 Tag Group Directory
Displaying a Tag
Group
