Siemens simovert masterdrives

-791 -
Function diagram
87654321
fp_mc_791_e.vsd
Free blocks
MASTERDRIVES MC
23.10.02

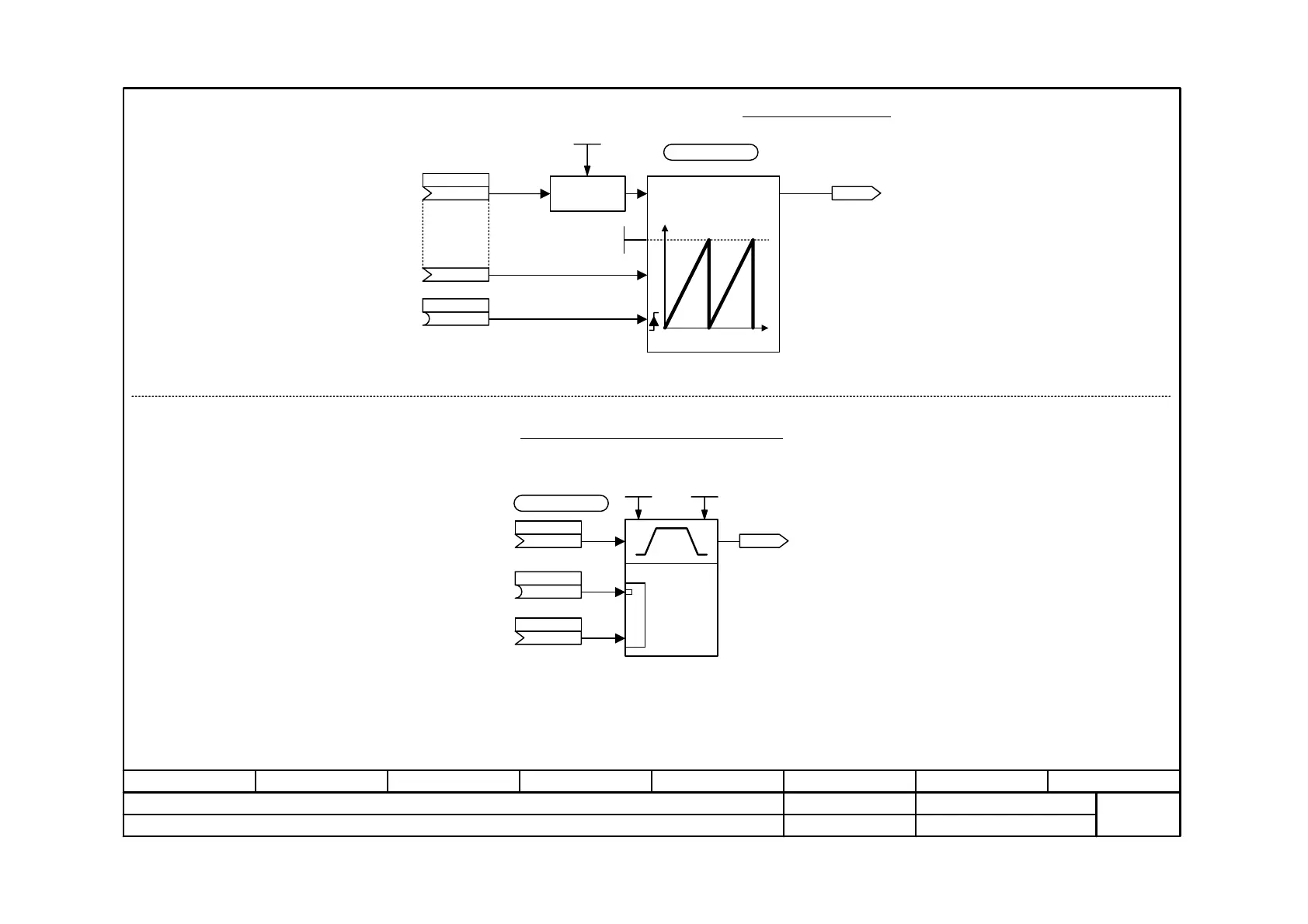

Simple ramp-function generator, virtual master
V2.5
- Output of simple ramp-function generator
for the technology controller, the following signal connection can be recommended:
If you wish to use the simple ramp-function generator as a setpoint ramp function generator
==> Setpoint input of technology controller
- Technology controller disabled ==> Set simple ramp-function generator
- Actual-value technology controller ==> Setting value of simple ramp-function generator
(U352 = 577) [792.1]
(U381 = 556) [792.3]
(U382 = value of U335) [792.1]
Simple ramp-function generator {6 µs}
Virtual Master {14 µs}
ACL
to synchronization block
Normalization
.01
.02
Speed value in [%]
e.g. from comfort ramp-function generator
Integrator with ACL limitation
xy
KK
U429 (0)
Input value
B
U432 (0)
Set
KK
Set value
KK0610
Pos Setpoint
U953.35 = __ (20)
Nominal Speed
0.00 … 20 000 000.00 [1000 Lrpm]
U431 (0)
Axis cycle length
0 … 2^31
U430 (0)
K
U380 (0)
B
U381 (0)
Set simple ramp-function generator
K0577
Acceleration time
0.00...100.00
U383.01
KK
U382 (0)
Setting value of simple RGen
Deceleration time
0.00...100.00
U383.02
U951.87 = __ (20)
