Commissioning Manual
144 6FC5397-4EP10-0BA8, 07/2018
Subroutine 21 - AUX_LAMP (working lamp)
Purpose
Subroutine 21 is used to control working lamp and can be called in AUX_MCP. One-time pressing of the "
" key
activates the working lamp while double pressing de-activates the working lamp.
Local variable definition
Inputs
Relevant PLC machine data
14512 [21].1 Switch of the I/O interface (0: set I0.0 to I2.7/Q0.0 to Q1.7 as the standard I/O wiring in
the default PLC; 1: set I6.0 to I8.7/Q4.0 to Q5.7 as the standard I/O wiring in the default
PLC)

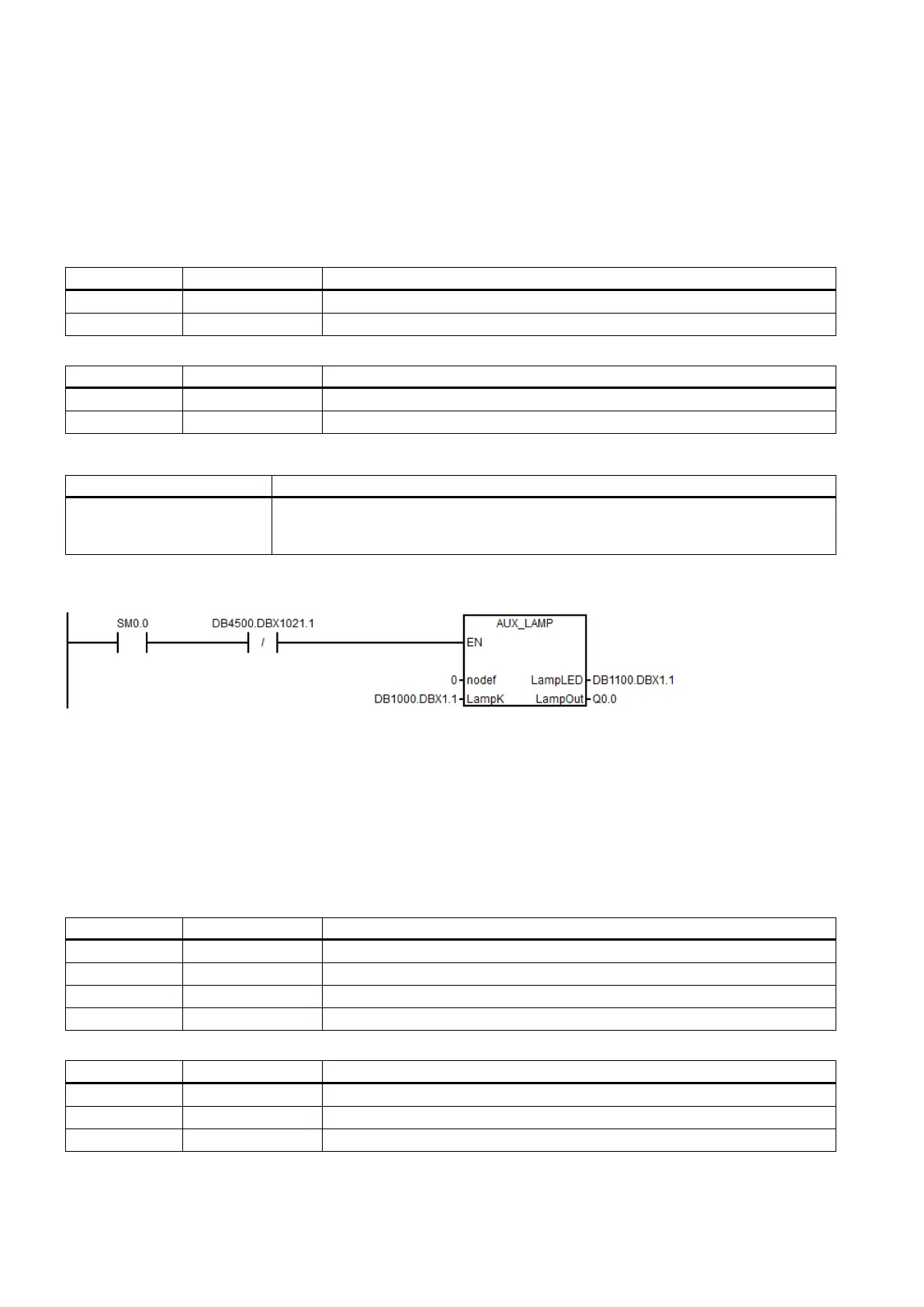

Example for calling subroutine 21
Subroutine 22 - AUX_SAFE_DOOR (safety door)
Purpose
Subroutine 22 is used to control the safety door and can be called in AUX_MCP.
If you open the safety door, that means you activate the spindle speed limiting function, with the speed limit being specified
in MD35160.
Local variable definition
Inputs
Open door when M01/M02 is active
