Siemens SINUMERIK 808D ADVANCED Series User Manual

Commissioning Manual
6FC5397-4EP10-0BA8, 07/2018
219
7.6.3
Setting leadscrew error compensation data
The principle of the leadscrew error compensation is to modify the actual value of the axis-specific position by the assigned
compensation value at the particular compensation point and to apply this value to the machine axis for immediate traversal.
A positive compensation value causes the corresponding machine axis to move in the negative direction.

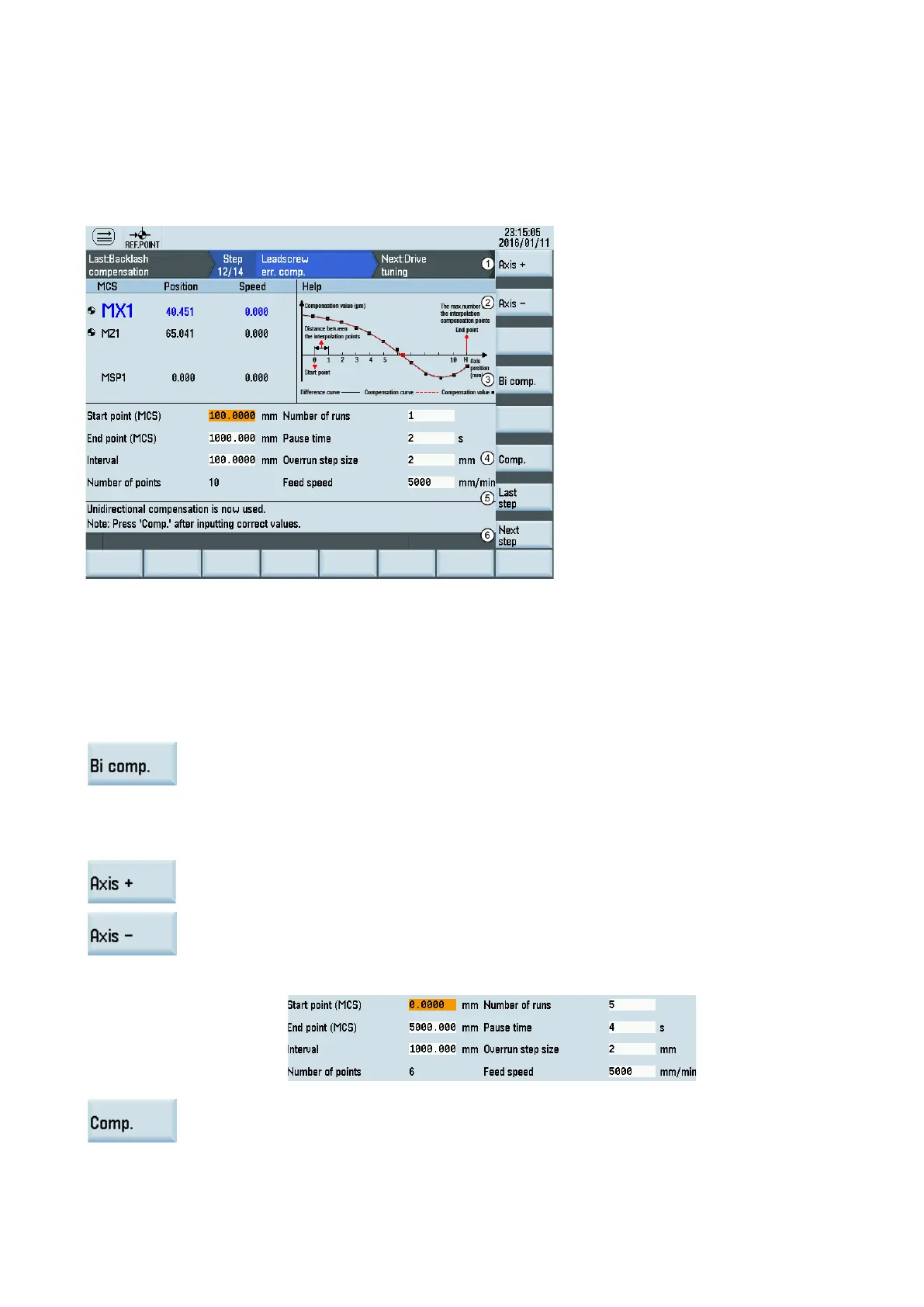

Softkey functions
①
Selects the next axis
④
Opens the window for entering the compensation va
l-
ues
②
Selects the previous
axis
⑤
Returns to the last step
③
Switches to bidirectional compensation (software l
i-
cense required)
⑥
Proceeds to the next step
Operating sequence
1.
You can
press this softkey to switch to bidirectional compensation to realize more precise
compensation, if required.
The unidirectional compensation is used by default.
Note:
This softkey is active only if the optional bidirectional leadscrew error compensation
has been activated with the license key. For more information about this software option,
refer to the SINUMERIK 808D ADVANCED Function Manual.
2.
Use these softkeys to select an axis.
3.
Specify the following parameters as desired.
4.
Press this softkey to enter the compensation screen.
