Interfaces on the PPU
4.2.1

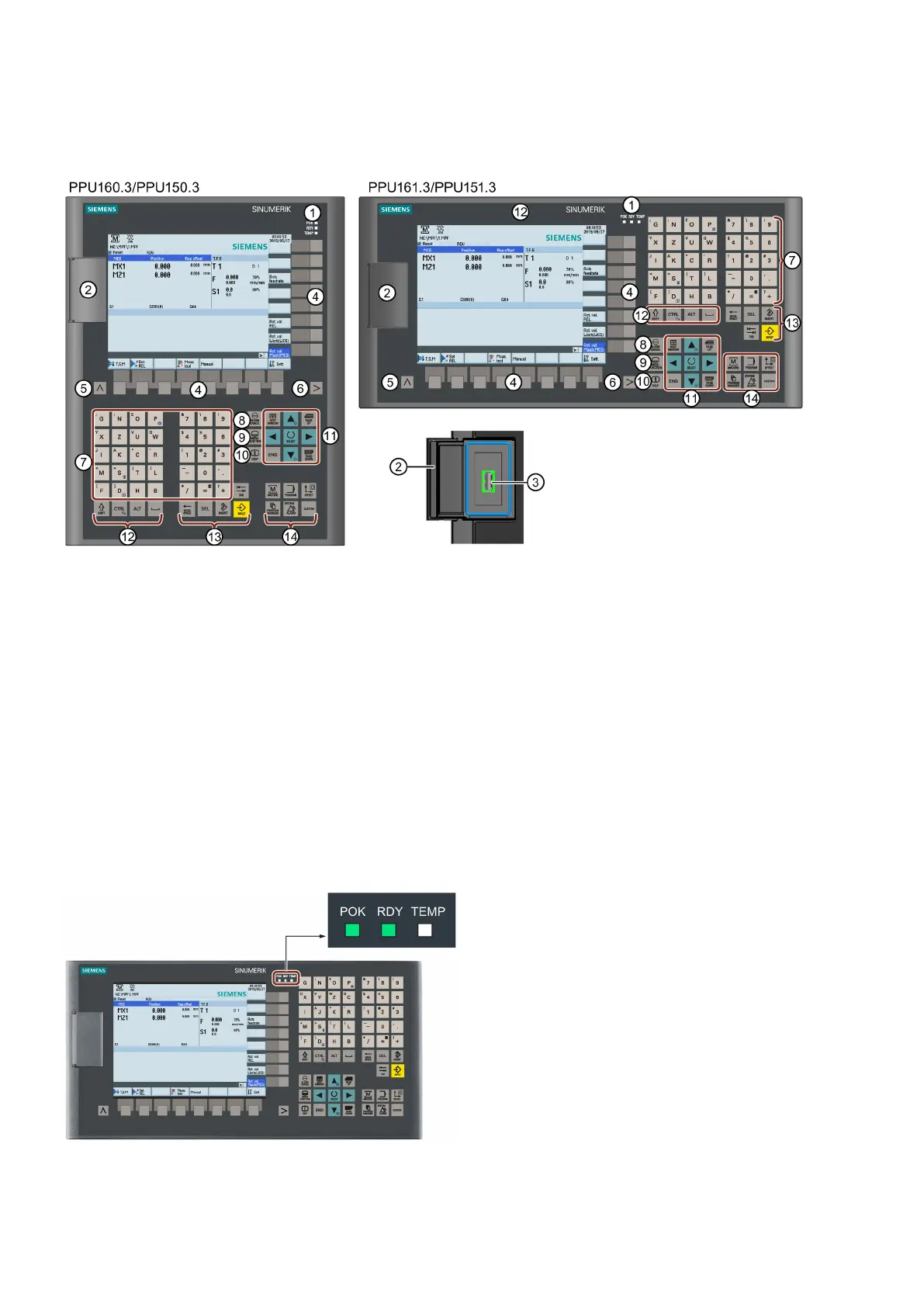

Control elements on the PPU
①
Status indicators
⑧
Alarm cancellation key
Cancels alarms and messages that are marked with the
symbol on this key
②
Protective cover for USB interface
⑨
Wizard key
Guides you through perfor
ming basic commissioning
and operation tasks
③
USB interface
⑩
Help key
Calls help information
④
Horizontal and vertical keys
Call the corresponding vertical/horizontal softkeys on
the screen
⑪
Cursor keys
⑤
Return key
Returns to the next higher-level menu
⑫
Modifier keys for use in key combinations
⑥
Menu extension key
Calls the extended menu items
⑬
Edit control keys
⑦
Alphabetic and numeric keys
⑭
Operating area keys
4.2.2
Status LEDs on the PPU
