Commissioning Manual
66 6FC5397-4EP10-0BA8, 07/2018
Personal injury and material damage
Some motors, especially the 1FL609❑ are heavy. The excessive weight of the motor should be considered and any
necessary assistance required for mounting should be sought.
Otherwise, the motor can fall down during mounting. This can result in serious personal injury or material damage.
Magnetic interference to the absolute encoder due to the magnetic field
To avoid magnetic interference to the absolute encoder, keep the servo motor with an absolute encoder at least 15 mm
away from the devices that produce a magnetic field stronger than 10 mT.
Note
Using the eyebolts
The 1FL609❑ motor (90 mm shaft height) has two M8 screw holes for screwing in two eyebolts. Lift the 1FL609❑ motor only
at the eyebolts.
Eyebolts that have been screwed in must be either tightened or removed after mounting.

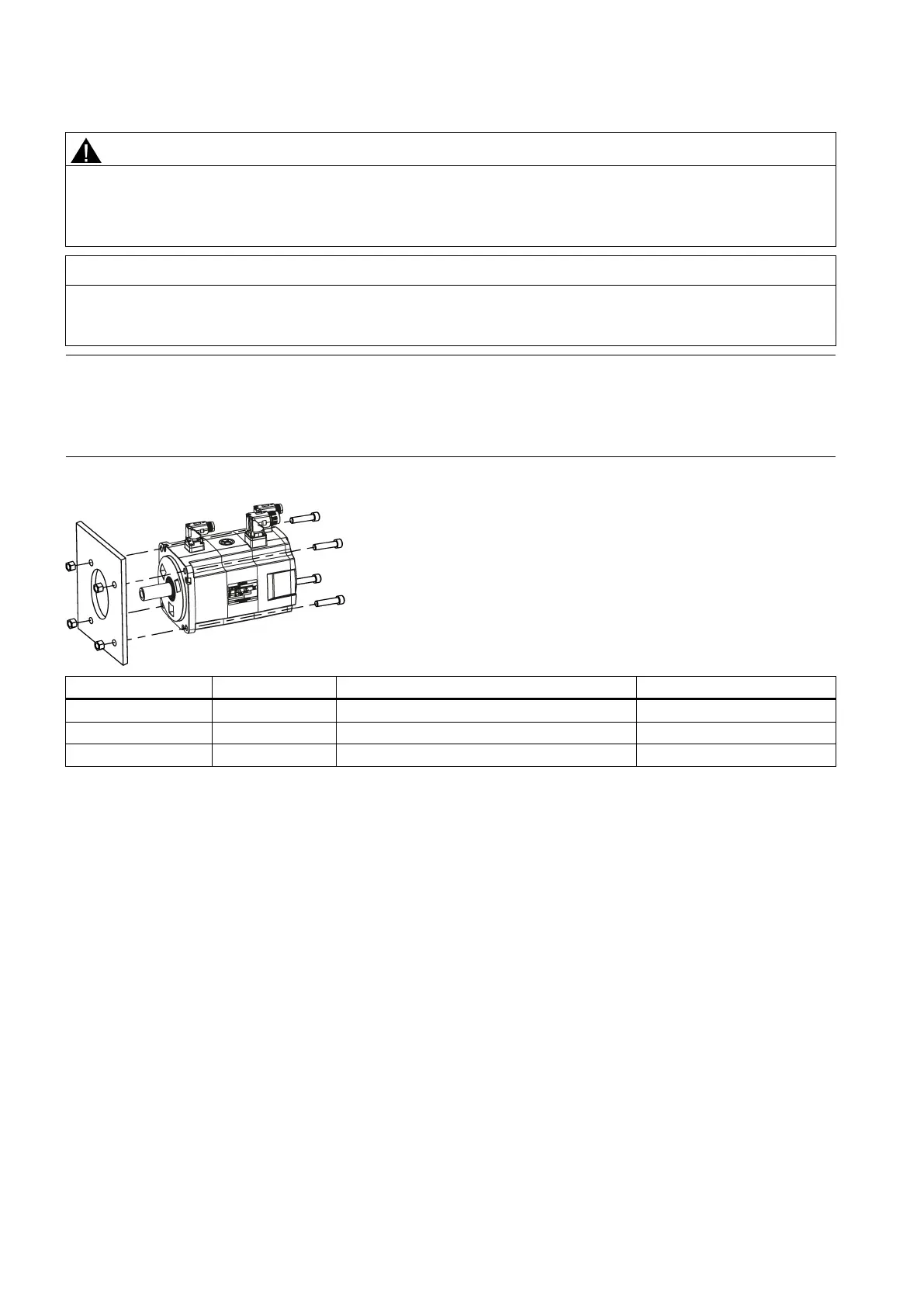

Install the motor onto a steel flange with four screws as shown in the following figure:
Recommended flange size (mm) *
* Use a suitable flange according to the recommended flange size to ensure that the motor runs with rated specifications.
For more information, see Section "Motor heating conditions (Page 71)".
