Siemens SINUMERIK 808D ADVANCED Series User Manual

Commissioning Manual
6FC5397-4EP10-0BA8, 07/2018
79
4.2.5

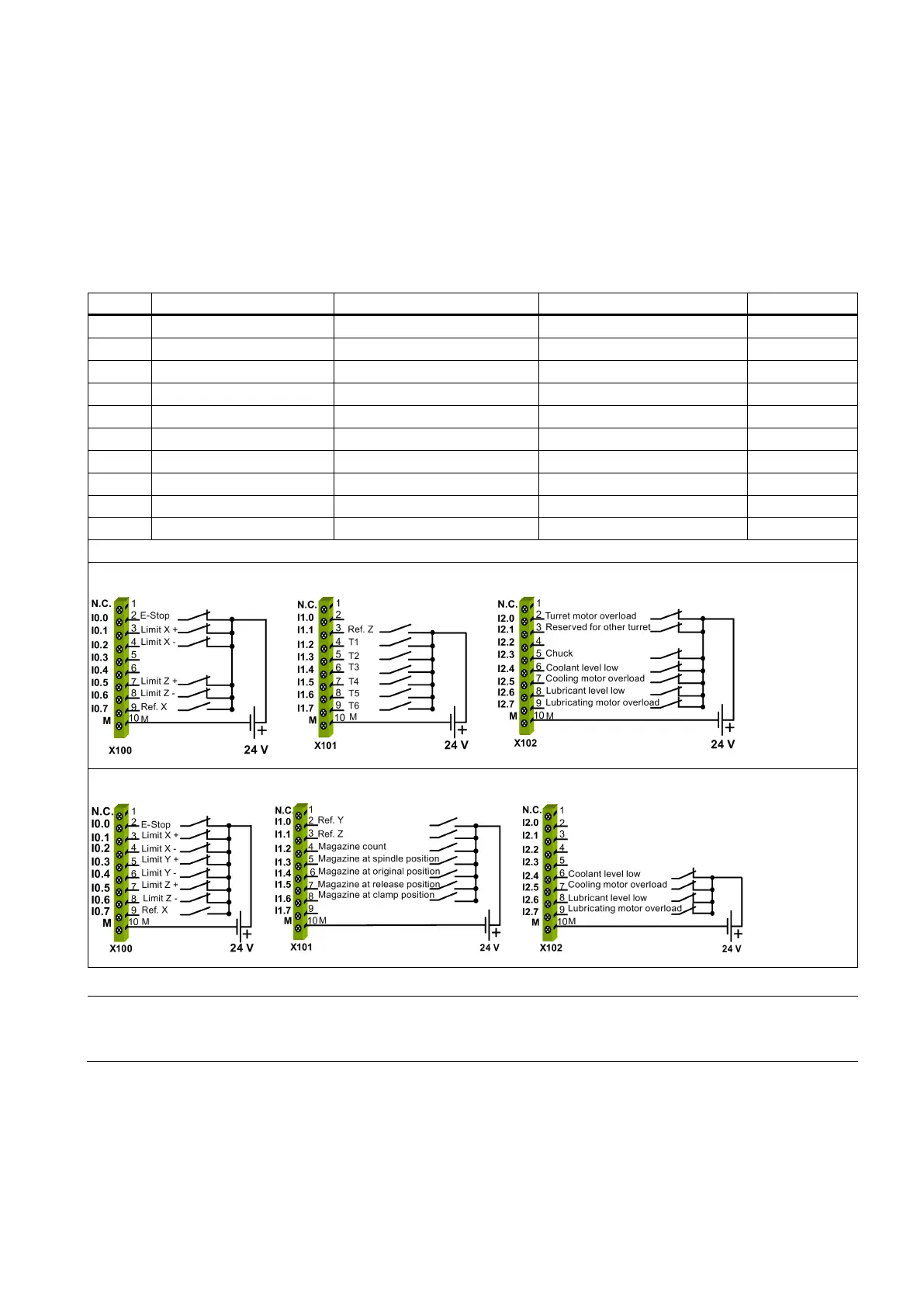

Digital input interfaces - X100, X101, X102
Pin assignment
Type
Mini Combicon 10-pin
Cable
M
ax. length: 10 m
Max. cross-section: 1.5 mm
2
(when using one cable per connection)
Inputs
Permissible level (including ripple)
High level: 20.4 V to 28.8 V
Low level: -3 V to +5 V
Pin
X100 (DIN0)
X101 (DIN1)
X102 (DIN2)
Remarks
1
N.C.
N.C.
N.C.
Not assigned
2
I0.0
I1.0
I2.0
Digital input
3
I0.1
I1.1
I2.1
Digital input
4
I0.2
I1.2
I2.2
Digital input
5
I0.3
I1.3
I2.3
Digital input
6
I0.4
I1.4
I2.4
Digital input
7
I0.5
I1.5
I2.5
Digital input
8
I0.6
I1.6
I2.6
Digital input
9
I0.7
I1.7
I2.7
Digital input
10
M
M
M
External ground
Connecting according to the default PLC program
Turning
Milling
Note
End sleeves are necessary if you use two cables per connection.
Fasten the cables to the screw terminals and plug the terminals into interfaces X100, X101 and X102 correctly.
