Siemens SINUMERIK 808D ADVANCED Series User Manual

Commissioning Manual
88 6FC5397-4EP10-0BA8, 07/2018
Note
You must install the Drive Bus terminator (that ships with the PPU) on X11
of the last servo drive; otherwise, the servo
system cannot work normally.
4.2.11

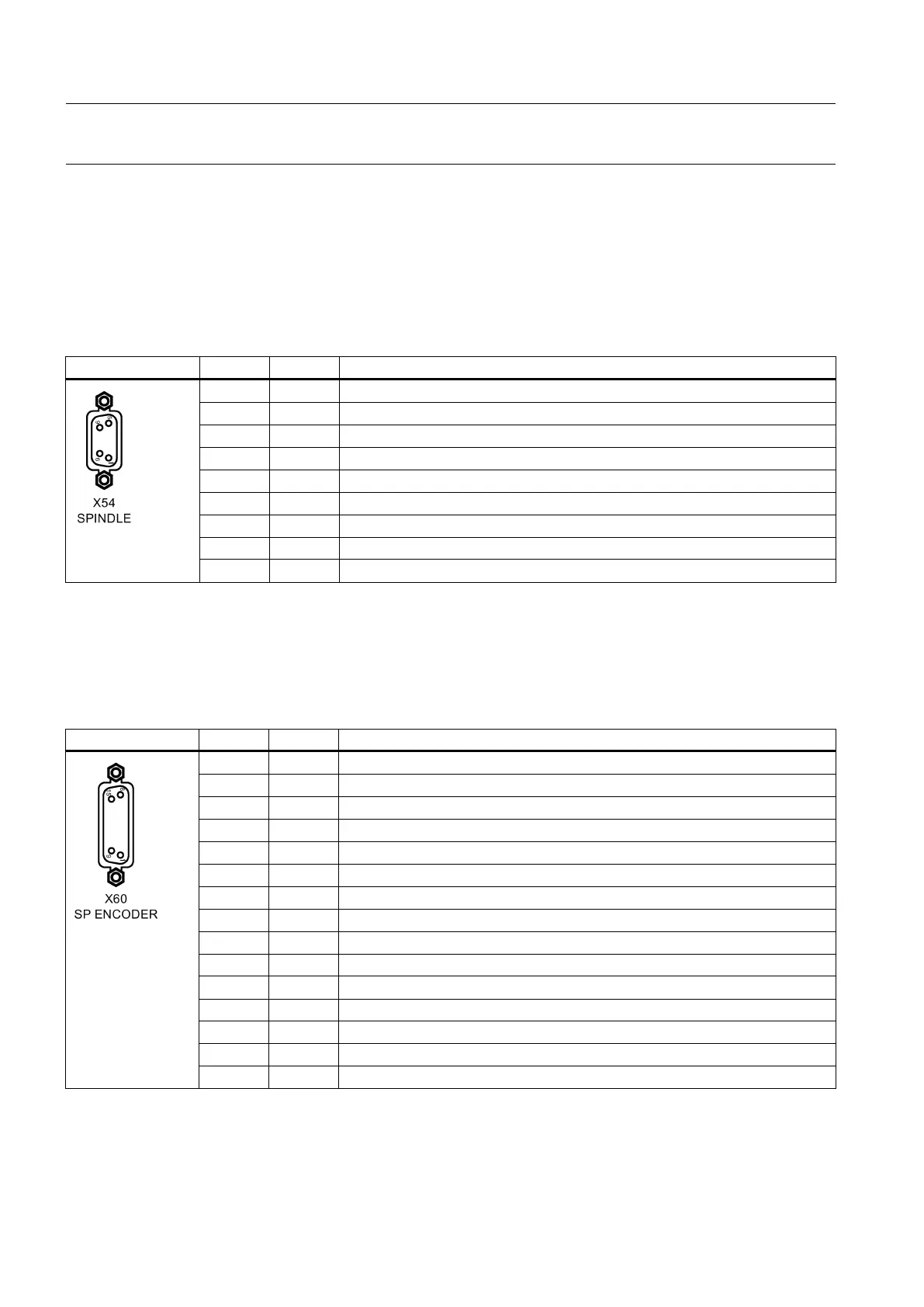

Analog spindle interface - X54, spindle encoder interface - X60
Interface X54 is for connecting the PPU to the inverter or servo spindle drive. Interface X60 is for connecting the PPU to the
spindle encoder.
Pin assignment - X54
Type
Sub-D, 9-pin, female
Cable
Max. length: 10 m
Illustration
Pin
Signal
Comment
1
AO
Analog voltage
2
-
not assigned
3
-
not assigned
4
-
not assigned
5
SE1
Analog drive enable (contact: electrically isolated n.o. contact)
6
SE2
Analog drive enable (contact: electrically isolated n.o. contact)
7
-
not assigned
8
-
not assigned
9
AGND
Ground
Pin assignment - X60
Type
Sub-D, 15-pin, female
Cable
Type: encoder cable
Max. length: 10 m
Max. frequency
2 MHz
Illustration
Pin
Signal
Comment
1
-
Not assigned
2 - Not assigned
3
-
Not assigned
4 +5 V +5 V power supply
5
-
Not assigned
6
+5 V
+5 V power supply
7
M
Ground
8
-
Not assigned
9
M
Ground
10
Z
Zero mark
11
Z_N
Zero mark, negative
12
B_N
Track B, negative
13
B
Track B
14
A_N
Track A, negative
15
A
Track A
