Diagnostics
A.8.1
SINUMERIK 808D ADVANCED alarms
Some alarms may occur during the commissioning work. For more information about the alarms, see the SINUMERIK 808D
ADVANCED Diagnostics Manual.

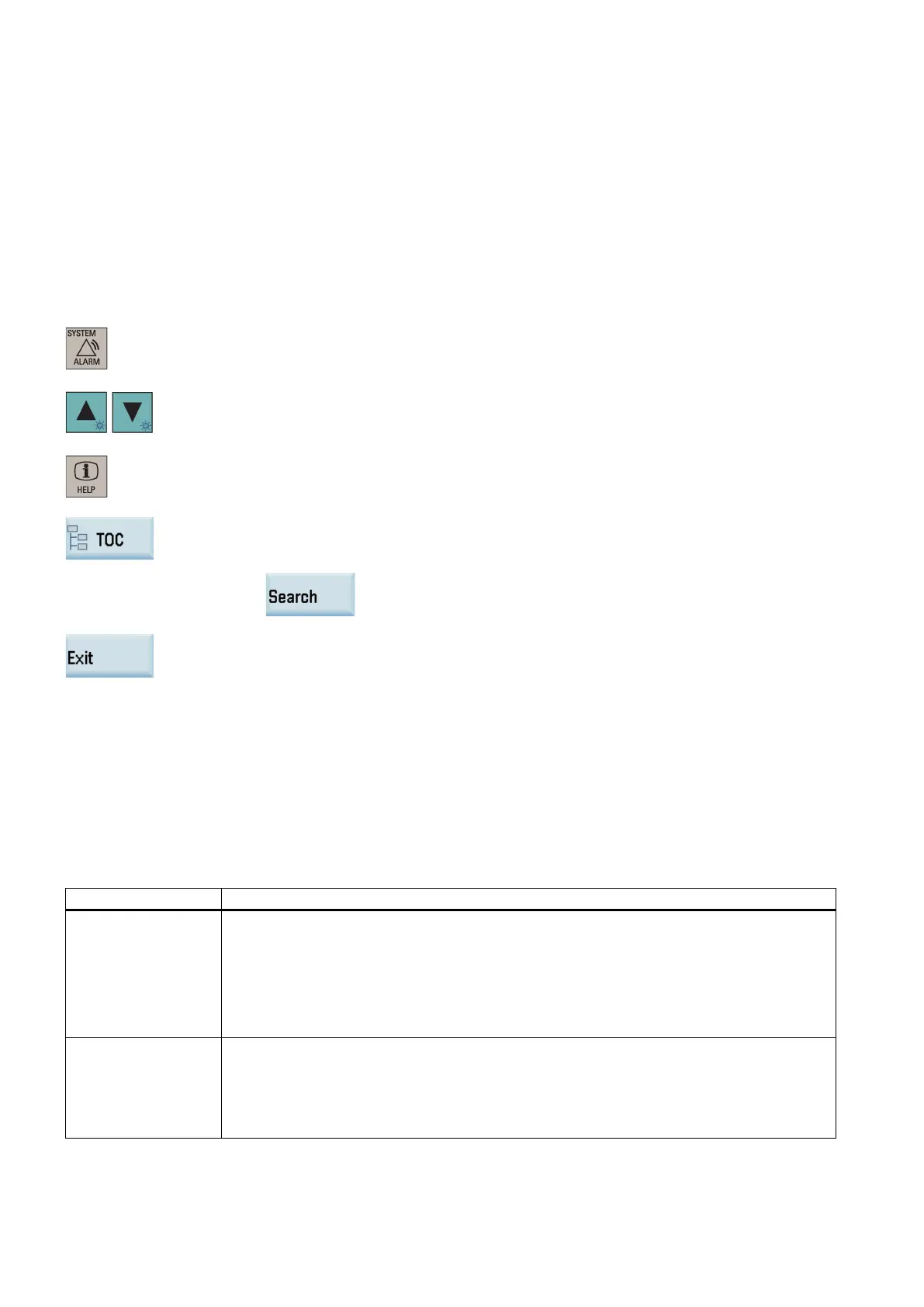

Calling help information for an alarm
You can call the help information for an active alarm on the PPU by proceeding through the following steps:
1.
Select the alarm operating area.
2.
Select the desired alarm using the cursor keys.
3.
Press this key to call the help information for the selected alarm.
Note:
You can further press this softkey in the
current help screen to show a complete list of
all SINUMERIK 808D ADVANCED alarms. In addition, you can also use the following sof
t-
key to search for a specific alarm by number in this list:
4.
Pressing this softkey exits the help system.
A.8.2
SINAMICS V70 faults and alarms
A.8.2.1
General information about faults and alarms
Differences between faults and alarms
The differences between faults and alarms are as follows:
Type
Description
Faults
What happens when a fault occurs?
• If the servo motor is running, it stops running.
• If the servo motor is not running, it cannot run.
How to eliminate a fault?
• Remove the cause of the fault.
• Acknowledge the fault.
Alarms
What happens when an alarm occurs?
• The servo motor can run normally.
How to eliminate an alarm?
• The alarm acknowledges itself. If the cause of the alarm is no longer present, it automatically
resets itself.
