Commissioning Manual
58 6FC5397-4EP10-0BA8, 07/2018
Note
EMC instructions
•
The SINAMICS V70 drives have been tested in accordance with the emission requirements of the category of C2
(residential) environment for FSA/FSB/FSC, and C3 (industrial) environment for FSD. The conducted emissions and
radiated emissions are in compliance with the standard of EN 55011 and reached Class A for FSA/FSB/FSC and Class
A2 for FSD.
In a residential environment, this product can cause high-frequency interferences that may necessitate suppression
measures.
For a radiated emission test, an external AC filter (between the 380 VAC power supply and the drive) will be used to
meet the EMC requirement and the drive will be installed inside the shielded metallic chamber, other parts of the motion
control system (including the PLC, DC power supply, spindle drive, motor) will be put inside the shielded chamber.
For a conductive emission test, an external AC filter (between the 380 VAC power supply and the drive) will be used to
meet the EMC requirement.
For the radiated emission and conductive emission test, the length of the line supply cable between the line filter and the
drive must be shorter than 1 m.
Note
Screw tightening

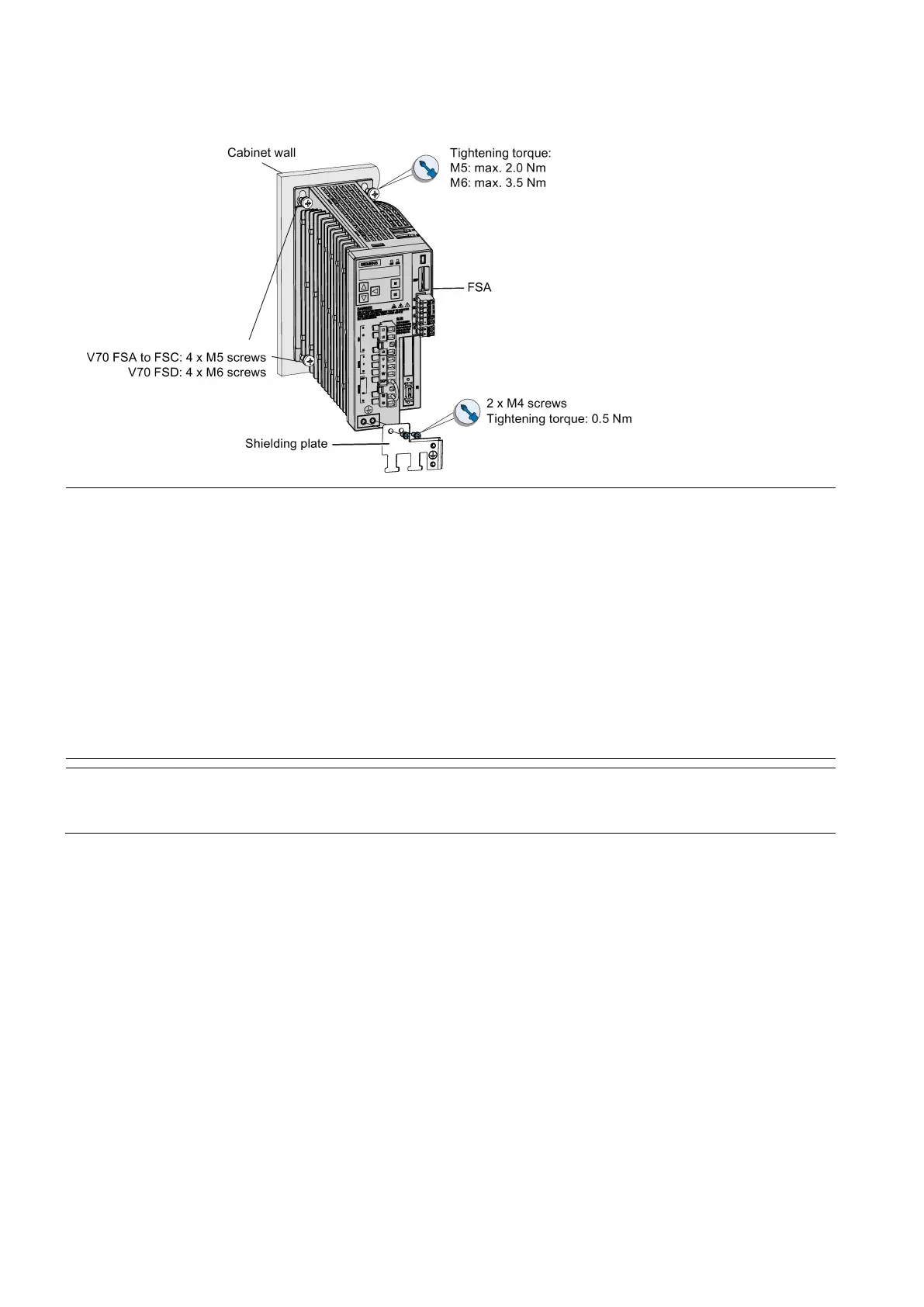

After the drive installation is complete, make sure that you tighten the screw on the terminal door of the drive.
