Siemens SINUMERIK 808D ADVANCED Series

Commissioning Manual
6FC5397-4EP10-0BA8, 07/2018
215
7.4.3

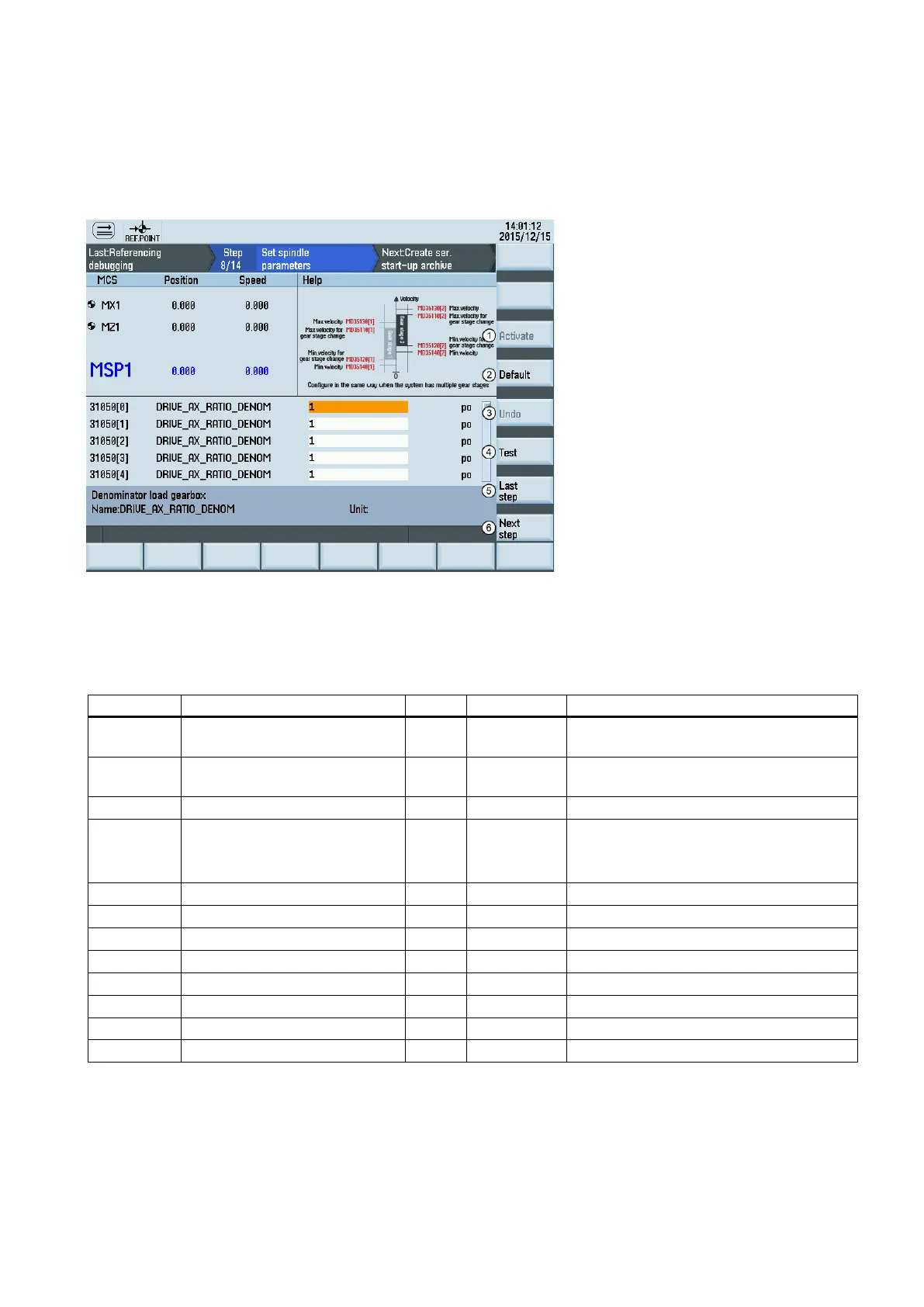

Setting spindle parameters
The control system controls one analog or digital spindle. You can commission the spindle by setting the relevant machine
data under this commissioning step.
Softkey functions
①
Activates the modified values
④
Switches to "MDA" mode for program test
②
Resets the value of the selected parameter to default
⑤
Returns to the last step
③
Cancels the last change to the parameter
⑥
Proceeds to the next step
Relevant machine data
No.
Name
Unit
Range
Description
31050[1...5] DRIVE_AX_RATIO_DENUM - 1 to
2147000000
Denominator load gearbox
31060[1...5] DRIVE_AX_RATIO_NUMERA - 1 to
2147000000
Numerator load gearbox
32020
JOG_VELO
rpm
-
Jog axis velocity
32100 AX_MOTION_DIR - -1 to 1 Traversing direction (not control direction)
• -1: Direction reversal
•
0, 1: No direction reversal
32110[0]
ENC_FEEDBACK_POL
-
-1 to 1
Sign actual value (control direction)
35010
GEAR_STEP_CHANGE_ENABLE
-
-
Parameterize gear stage change
35100
SPIND_VELO_LIMIT
rpm
-
Maximum spindle speed
35110[1...5]
GEAR_STEP_MAX_VELO
rpm
-
Maximum speed for gear stage change
35120[1...5]
GEAR_STEP_MIN_VELO
rpm
-
Minimum speed for gear stage change
35130[1...5]
GEAR_STEP_MAX_VELO_LIMIT
rpm
-
Maximum speed of gear stage
35140[1...5]
GEAR_STEP_MIN_VELO_LIMIT
rpm
-
Minimum speed of gear stage
36200[1...5]
AX_VELO_LIMIT
rpm
-
Threshold value for velocity monitoring
