X30

USB interface, for connection with the MCP

⑪

Power supply interface, +24 VDC power supply

⑫

PE terminal, for connection with the ground

⑬

Slot for the system CF card

PPU front

⑭

USB interface

4.2.4

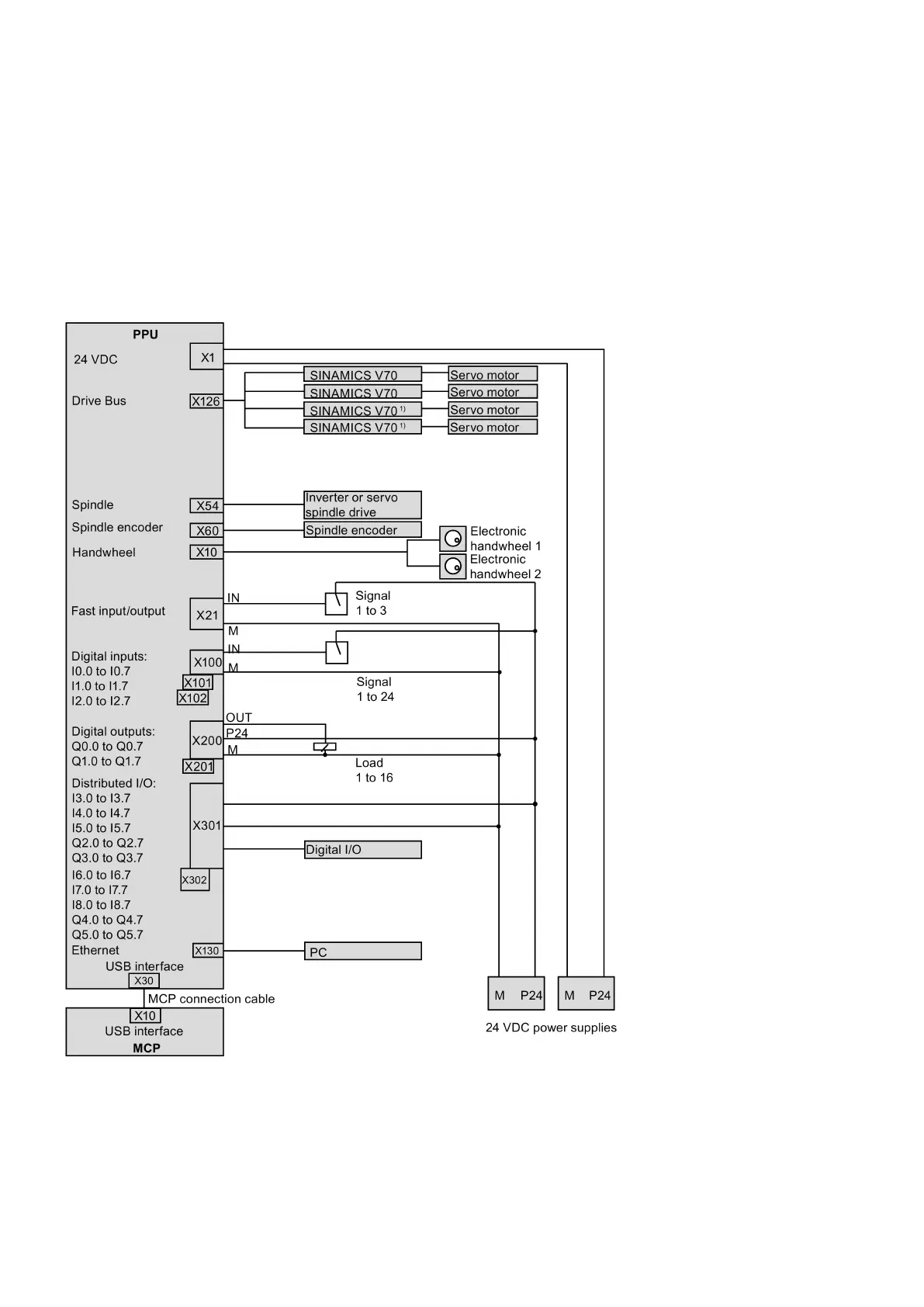

Connecting the PPU

For the SINUMERIK 808D ADVANCED T control system, connecting to the third and fourth drives is optional and depends

upon whether you activate the software option "additional axis". For the SINUMERIK ADVANCED M control system,

connecting to the fourth drive is optional and depends upon whether you activate the software option "additional axis".
