Commissioning Manual
218 6FC5397-4EP10-0BA8, 07/2018
Setting backlash compensation data
In the case of axes/spindle with indirect measuring systems, mechanical backlash results in corruption of the traverse path,
causing an axis, for example, to travel too much or too little by the amount of the backlash when the direction of movement
is reversed.

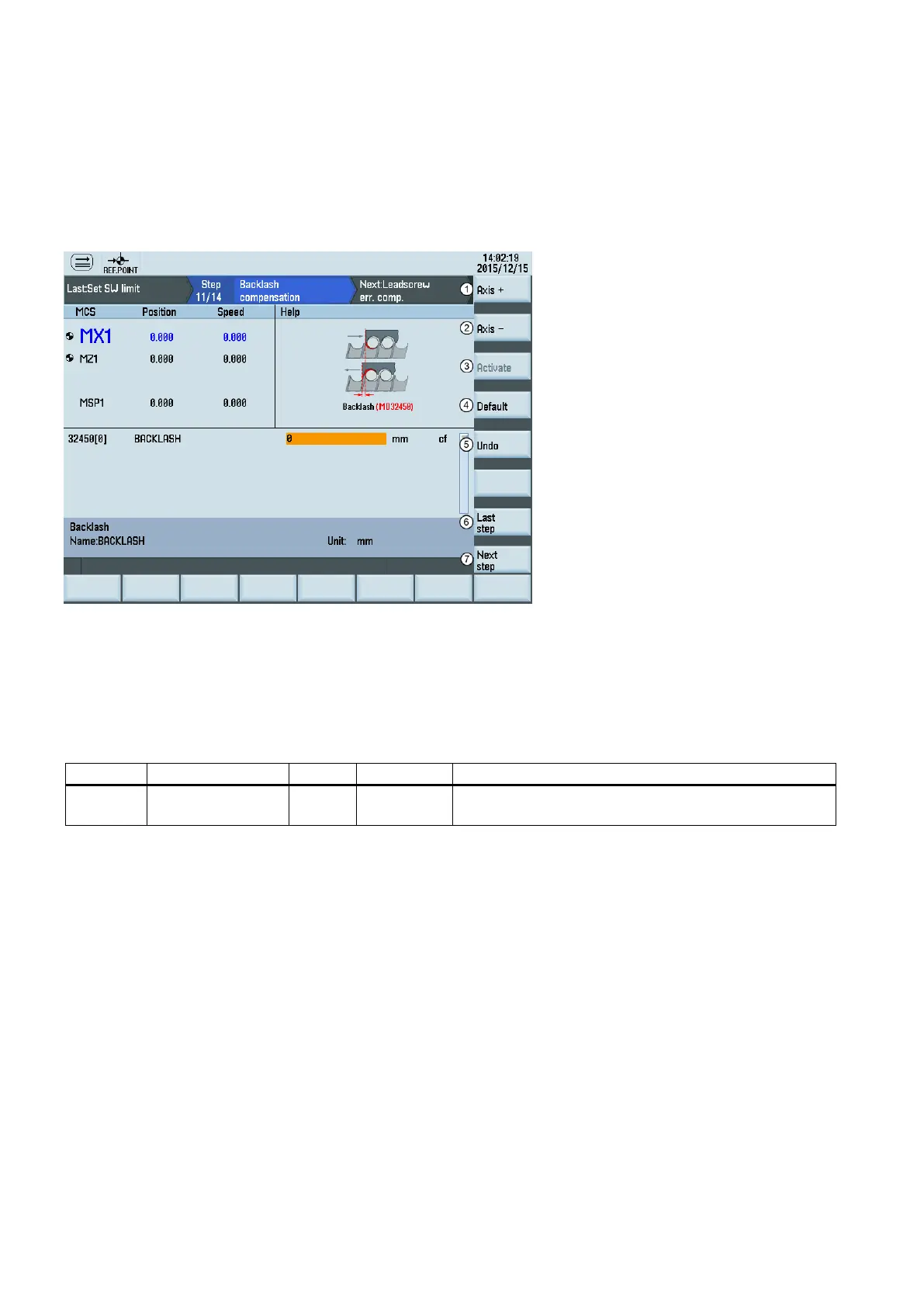

You can set the backlash compensation by configuring the parameter 32450[0].
Cancels the last change to the parameter
Selects the previous axis
Activates the modified values
Proceeds to the next step
Resets the value of the selected parame
ter to default
32450[0] BACKLASH mm - Backlash compensation is active after reference point ap-
