Note
Before connecting the AMM tool, make sure you enable the communication port 22 on the HMI. For more information about
enabling th
e communication ports, see Section "Configuring the firewall (Page 42)".
You can establish a connection between the control system and a computer installed with AMM via the Ethernet interface
(X130). The following Ethernet connections are possible:
● Direct connection: connecting the control system directly to a computer
● Network connection: integrating the control system into an existing Ethernet network
Establishing a direct connection

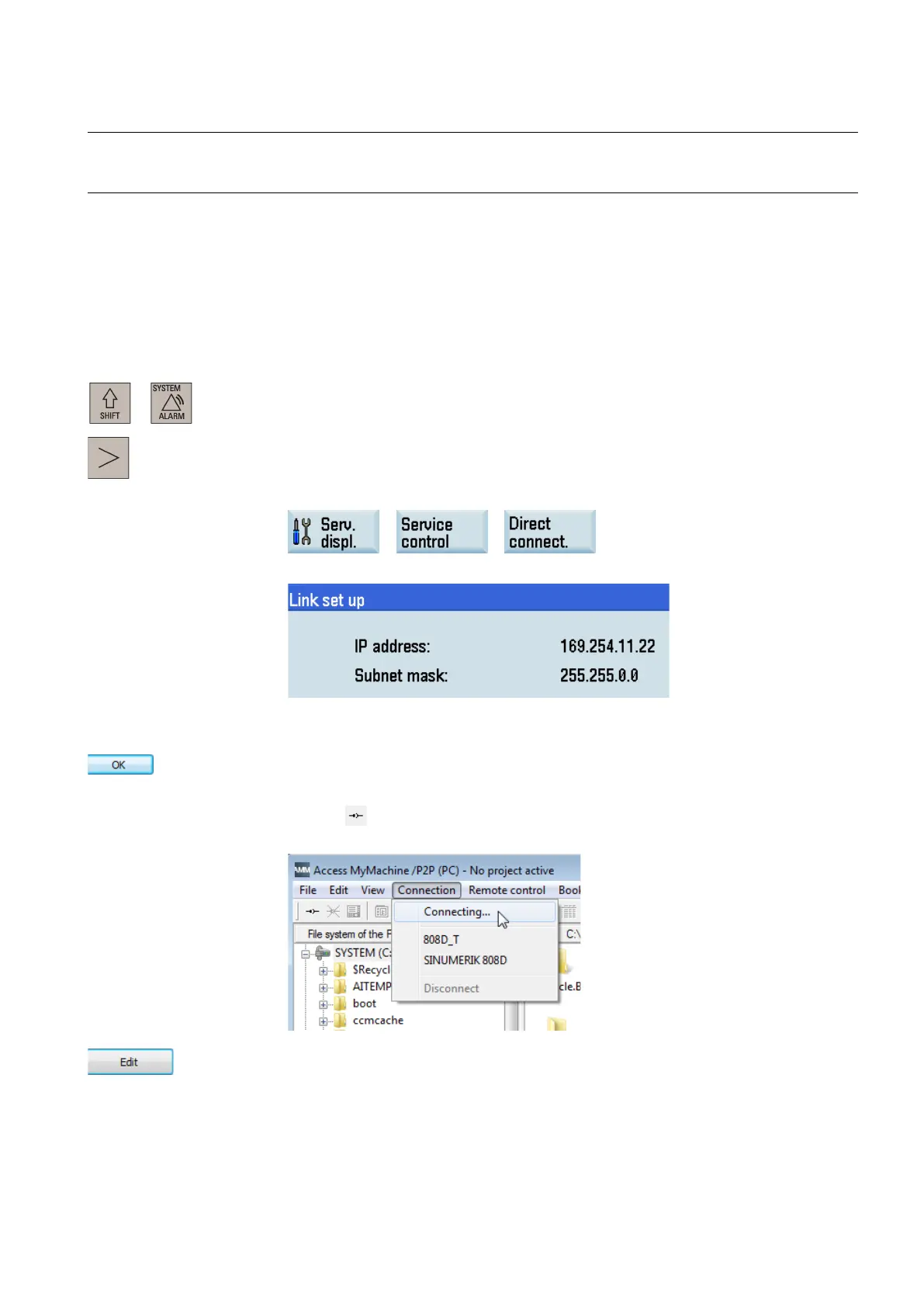

Proceed as follows to establish a direct connection between the control system and a computer (AMM tool):
Connect the control system with the computer using an Ethernet cable.
Select the system data operating area on the PPU.
Press this key to view the extended softkeys.
Set up a direct connection on the control system through the following softkey op
erations:
→ →
The following dialog box displays on the screen:
Start Access MyMachine on your computer. A password setting dialog box appears when
the tool is started for the first time.
Enter a desired password in the input fields and then click this button to save.
This password ensures that all the connection data for AMM is encrypted. The password
can be subsequently changed at any time from the menu bar.
button in the toolbar or select from the main window menu as follows to call
the connection dialog box:
Select the direct connection option for SINUMERIK 808D in the connection dialog box, a
nd
then click this button to make the connection settings changeable.
