Siemens SINUMERIK 808D ADVANCED Series User Manual

Commissioning Manual
240 6FC5397-4EP10-0BA8, 07/2018
12.3.2
Setting parameters for the additional analog spindle

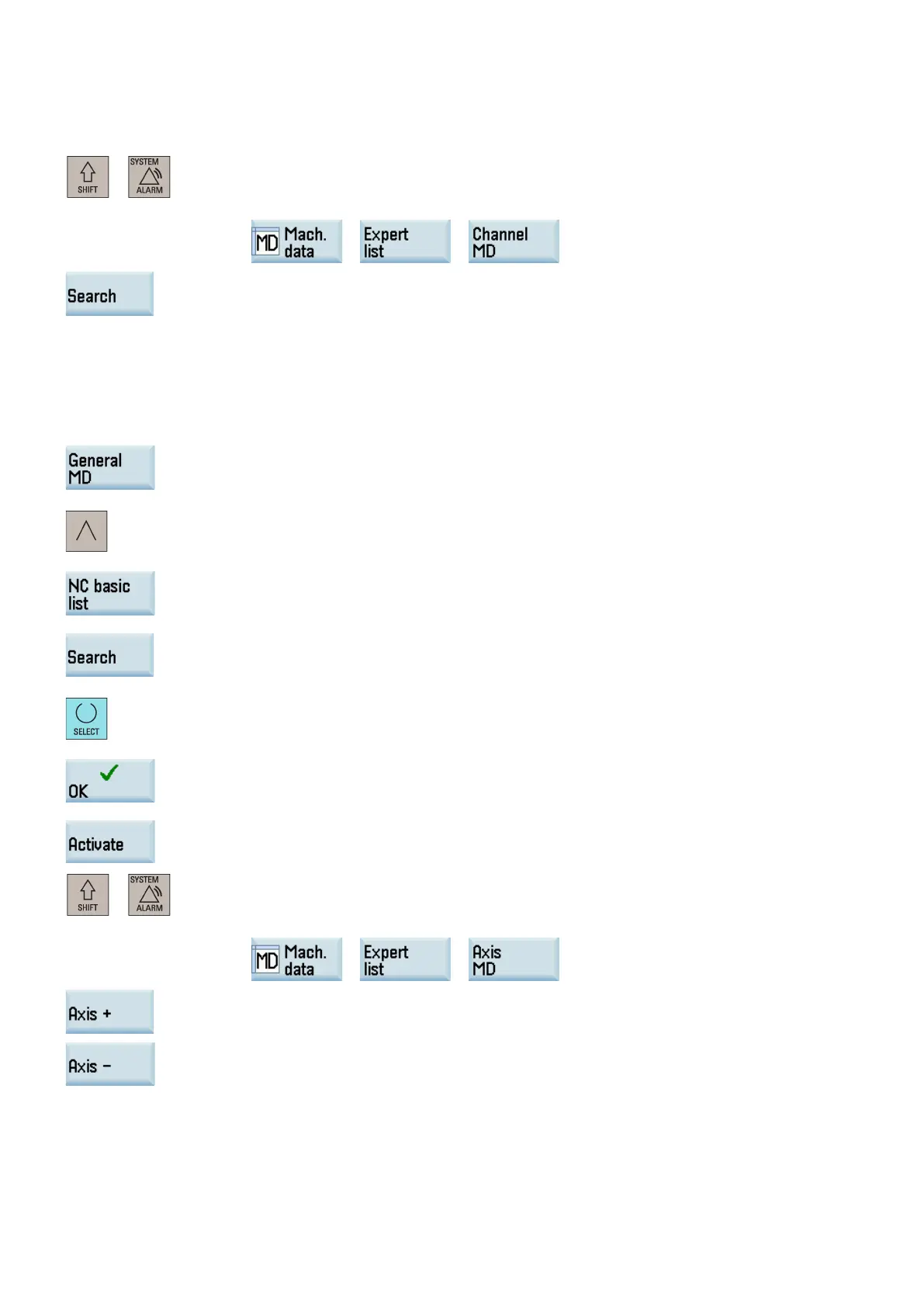

Proceed as follows to set the parameters for the additional analog spindle:
+
1.
Select the system data operating area.
2.
Open the channel machine data window through the following softkey operation
s:
→ →
3.
Use this softkey or the cursor keys to search for the following machine data and a
ssign the
desired values:
•
For the turning variant of the control system:
– 20070[3] = 5
– 20080[3] = SP2
•
For the milling variant of the control system:
– 20070[4] = 5
– 20080[4] = SP2
4.
Open the general machine
data window and set 10000[4] = MSP2.
5.
Press this key to return to the higher
-level menu.
6.
Open the basic machine data window.
7.
Use this softkey or the cursor keys to search for "14512 USER_DATA_HEX[20]".
8.
Select "Bit2" and "Bit3" by using this key and the cursor keys.
9.
Press this so
ftkey to confirm your input.
10.
Press this softkey to activate the value changes. Note that the control system restarts to a
c-
cept the new values.
+
11.
Select the system data operating area.
12.
Open the axis machine data win
dow through the following softkey operations:
→ →
13.
Use these softkeys to switch to the data set for the additional spindle (MSP2).
