Siemens SINUMERIK 808D ADVANCED Series User Manual

Commissioning Manual
6FC5397-4EP10-0BA8, 07/2018
67
3.3.2
Mounting the SIMOTICS M-1PH1 main motor
3.3.2.1
Mounting orientation and outline dimensions

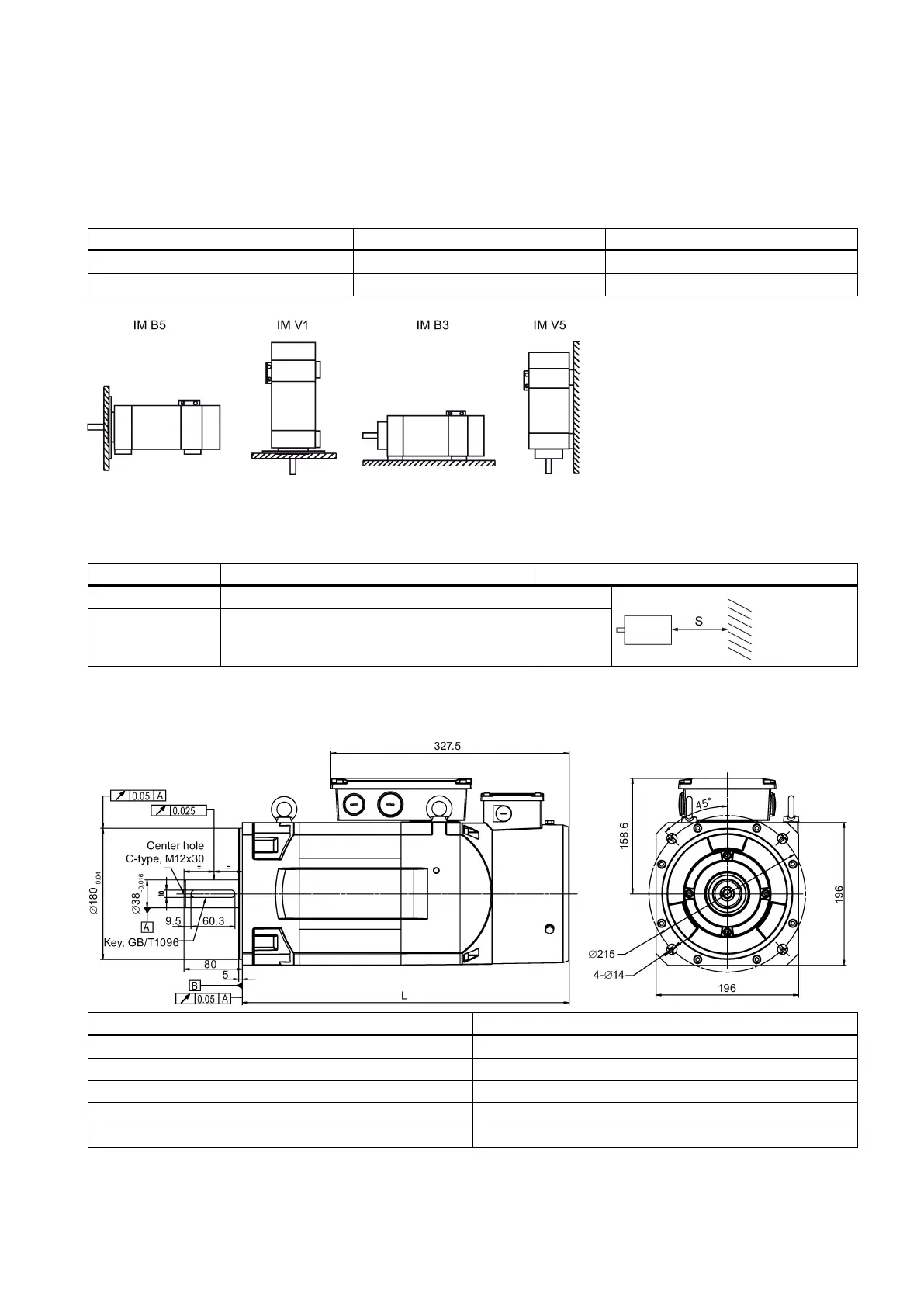

Mounting orientation
The SIMOTICS M-1PH1 main motor supports flange mounting and foot mounting as shown below:
Mounting method
Standard type of construction
Rotated type of construction
Foot mounting
IM B3
IM V5
Flange mounting
IM B5
IM V1
Minimum clearance between a fan and parts/components mounted by the customer
The minimum clearance between a fan and parts/components mounted by the customer or the air discharge opening, and
the minimum clearance S between the air intake/air discharge opening and adjacent components must be maintained.
Shaft height (mm)
Fan mounting
Minimum clearance S (mm)
100
Non-drive end axial, can be rotated through 180°
30
132 Non-drive end radial, can be ordered differently
from the mounting type
60
Motor dimensions
Shaft height 100 mm: flange mounting (unit: mm)
Motor
L
1PH1101-1❑F12-❑GA0
419
1PH1103-1❑F12-❑GA0
449
1PH1103-1❑D12-❑GA0
449
1PH1105-1❑F12-❑GA0
499
1PH1105-1❑D12-❑GA0
499
