Siemens SINUMERIK 808D ADVANCED Series User Manual

Commissioning Manual
146 6FC5397-4EP10-0BA8, 07/2018

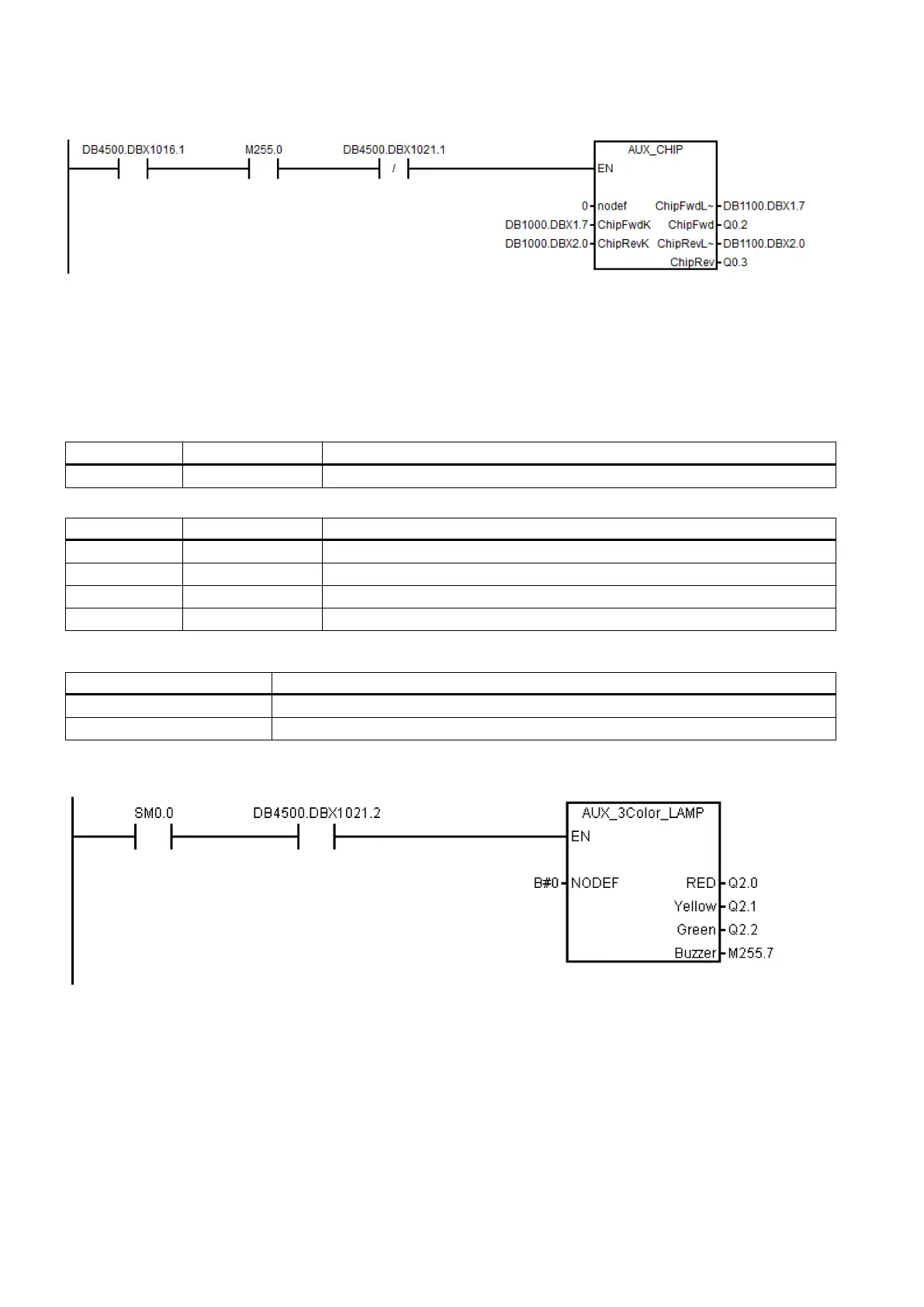

Example for calling subroutine 23
6.6.7
Subroutine 24 - AUX_3Color_LAMP
Purpose
Subroutine 24 is used to control the three-color lamp function and can be called in AUX_MCP.
Local variable definition
Inputs
Variable
Type
Description
nodef
BYTE
Reserved
Outputs
Variable
Type
Description
Red
BOOL
Alarm lamp: red
Yellow
BOOL
Alarm lamp: yellow
Green
BOOL
Alarm lamp: green
Buzzer
BOOL
Alarm hint: buzzer
Relevant PLC machine data
No.
Description
14512 [21].2 Selection of the three-color lamp function (0: deactivate; 1: activate)
14512 [21].3
Switch of three-color lamp flashing (0: the lamp does not flash; 1: the lamp flashes)
Example for calling subroutine 24
