Siemens SINUMERIK 808D ADVANCED Series User Manual

Commissioning Manual
150 6FC5397-4EP10-0BA8, 07/2018
No.
Description
14510 [12] Layout of the traverse keys
• For a turning variant, 0: horizontal version; 1: inclined version
•
For a milling variant, 0: vertical milling; 1: knee-type
Example for calling subroutine 37
6.6.12
Subroutine 38 - MCP_Tool_Nr (display tool number on the MCP)
Purpose
Subroutine 38 is used to display active tool number (< 100) with the 7-segment LED on the MCP, and should be called in
subroutine MCP_NCK. For a tool number ≥ 100, it displays "FF".
Local variable definition
None
Assigned global variables
None
Relevant PLC machine data
None

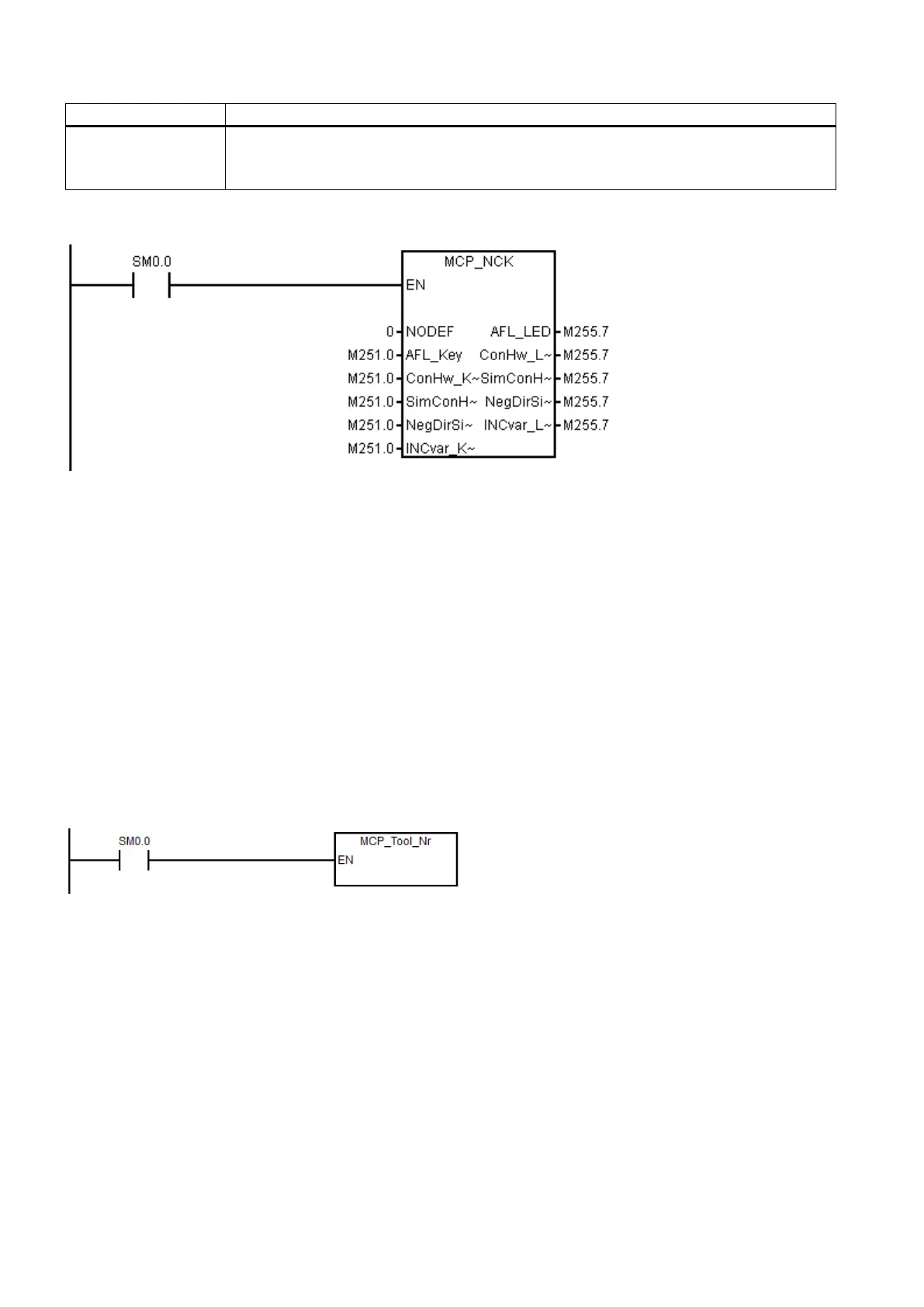

Example for calling subroutine 38
