Commissioning Manual
216 6FC5397-4EP10-0BA8, 07/2018

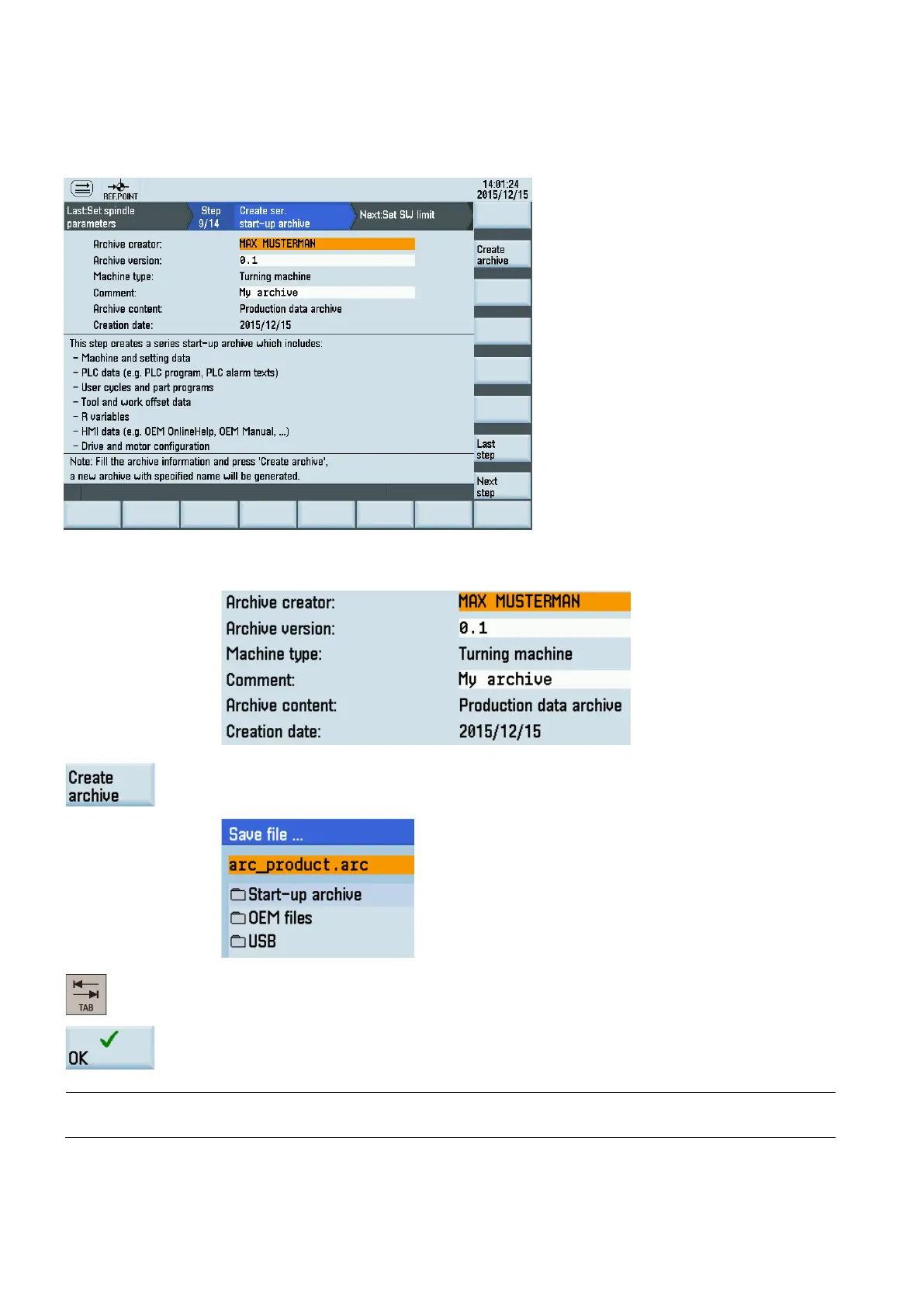

Creating series startup archives is a prerequisite for series machine commissioning. The series startup archives contain data
from the prototype machine commissioning which bring the series machine to the same state.
y the properties of the archive as required:
to open the window for saving the archive file. You must select a directory in this
window. The default name of the data archive is "arc_product.arc". You can use your desired name
for it. The file name extension ".arc" must be entered.
Note that you can press this key on the PPU to toggle between the file name input fie
ld and the
directory selection area.
Press this softkey to create the archive.
Note
If you choose USB as the target directory, do not remove the USB stick d
uring the data saving.
