269
4.

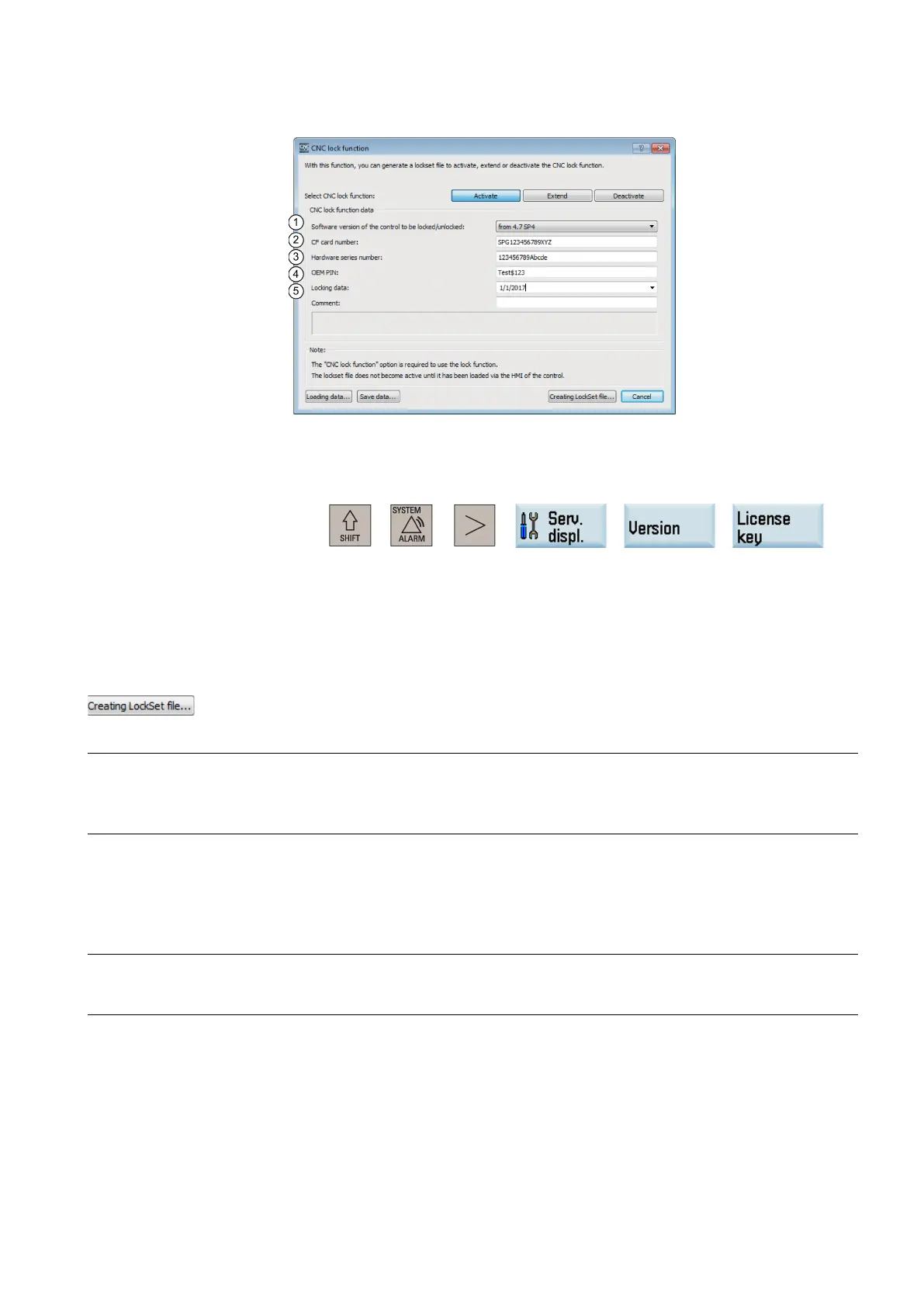

Enter the data required in the dialog box,
for example:
①
The software version 4.7 SP4 must be selected for the SINUMERIK 808D
ADVANCED control system.
②
The serial number of the CF card can be found on the PPU HMI through the following
operations:
+ → → → →
③
The serial number of the hardware (PPU) can be found on the PPU rating plate.
④
The OEM PIN must be limited to 8 to 32 English characters and contain a mixture of
upper and lower case letters, numbers, and special characters (spaces are not a
l-
lowed). The machine manufacturer is responsible for mai
n
taining the confidentiality of
the OEM PIN.
⑤
The machine manufacturer must set a date when the NC start is locked for the control
system.
5.
Click this button to save the activation data in the form of .clc file.
Note
The OEM PIN increases the protection against manipulation of the CNC lock function.
The OEM PIN is stored by the system when activating the CNC lock function in the PLC user program. The OEM PIN cannot
be viewed, changed or deleted by the user in the PLC user program.
13.10.3
Importing the activation file
The activation file must be transferred to the control system either directly via an Ethernet connection or alternatively via a
storage medium, e.g. USB flash drive. The end-user or higher access level is required for the import. The control system
must be in the reset state for the import.
Note
Before importing the activation file into the
control system, the machine manufacturer must set the time and date of the
control system correctly, because the time of activating the CNC lock function is saved as the start value for monitoring.
Proceed through the following steps to import the activation file:
1.
•
To import the file via USB, store the file in a USB memory stick and insert the USB
memory stick into the USB interface at the front of the PPU.
•
To import the file via Ethernet, store the file in a shared folder (network drive) on your
computer and connect the network drive via Ethernet connection.
