Siemens SINUMERIK 808D ADVANCED Series User Manual

Commissioning Manual
6FC5397-4EP10-0BA8, 07/2018
91

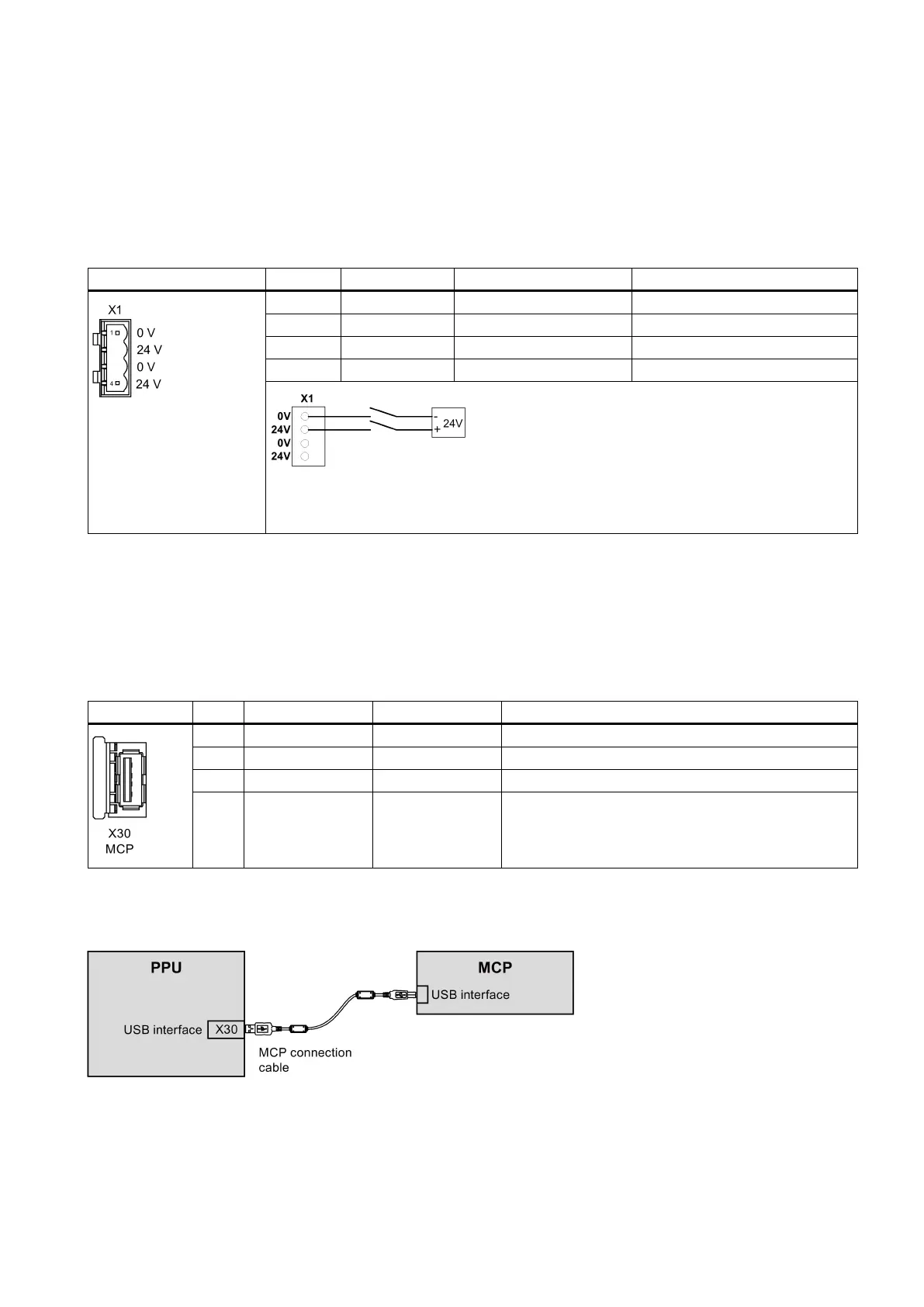

4.2.13
Power supply interface - X1
The PPU uses a 24 VDC power supply. You can connect the 24 VDC power supply via interface X1. For more information
about the 24 VDC power supply, see Section "External 24 VDC power supply (Page 32)".
Pin assignment
Type
Combicon 4-pin
Cable
Max. length: 10 m
Illustration
Pin1
Signal
Name
Comment
1
0 V
M24
0 V
2
24 V
P24
+24 V
3
0 V
M24
0 V
4
24 V
P24
+24 V
Note:
The 0 V terminals as well as the 24 V terminals are internally connected in parallel. This
means that you can connect the 24 V power supply to either of the terminal pairs.
4.2.14
USB interface - X30
There is a USB interface on the back of the PPU. This USB interface is used for connecting with the MCP.
Pin assignment
Type
USB socket, type A Combicon 4-pin
Cable
Type: USB cable (0.8 m)
Illustration
Pin
Signal name
Signal type
Comment
1
P5_USB0
VO
5 V power supply
2
DM_USB0
I/O
USB data-
3
DP_USB0
I/O
USB data+
4 M VO Ground
Connecting
The illustration below shows the connection between the PPU and the MCP with the MCP connection cable.
