Siemens SINUMERIK 808D ADVANCED Series User Manual

Commissioning Manual
172 6FC5397-4EP10-0BA8, 07/2018
Name
Type
Description
Err1
BOOL
Error 1: clamp/unclamp not possible while spindle is operating
Assigned global variables
ChuckLcked BOOL M229.4 Chuck clamped
ChuckLckLED
BOOL
M239.2
Chuck at released state
ExtInLED_Om
BOOL
M239.5
External/inside clamping state
TR_Status
BOOL
M237.6
Chuck release command
Relevant PLC machine data
No.
Value
Description
14512 [17].1
1
Enable chuck in turning
0
Disable chuck in turning
14512 [21].1
0
Set I0.0 to I2.7/Q0.0 to Q1.7 as the standard I/O wiring in the default PLC
1
Set I6.0 to I8.7/Q4.0 to Q5.7 as the standard I/O wiring in the default PLC

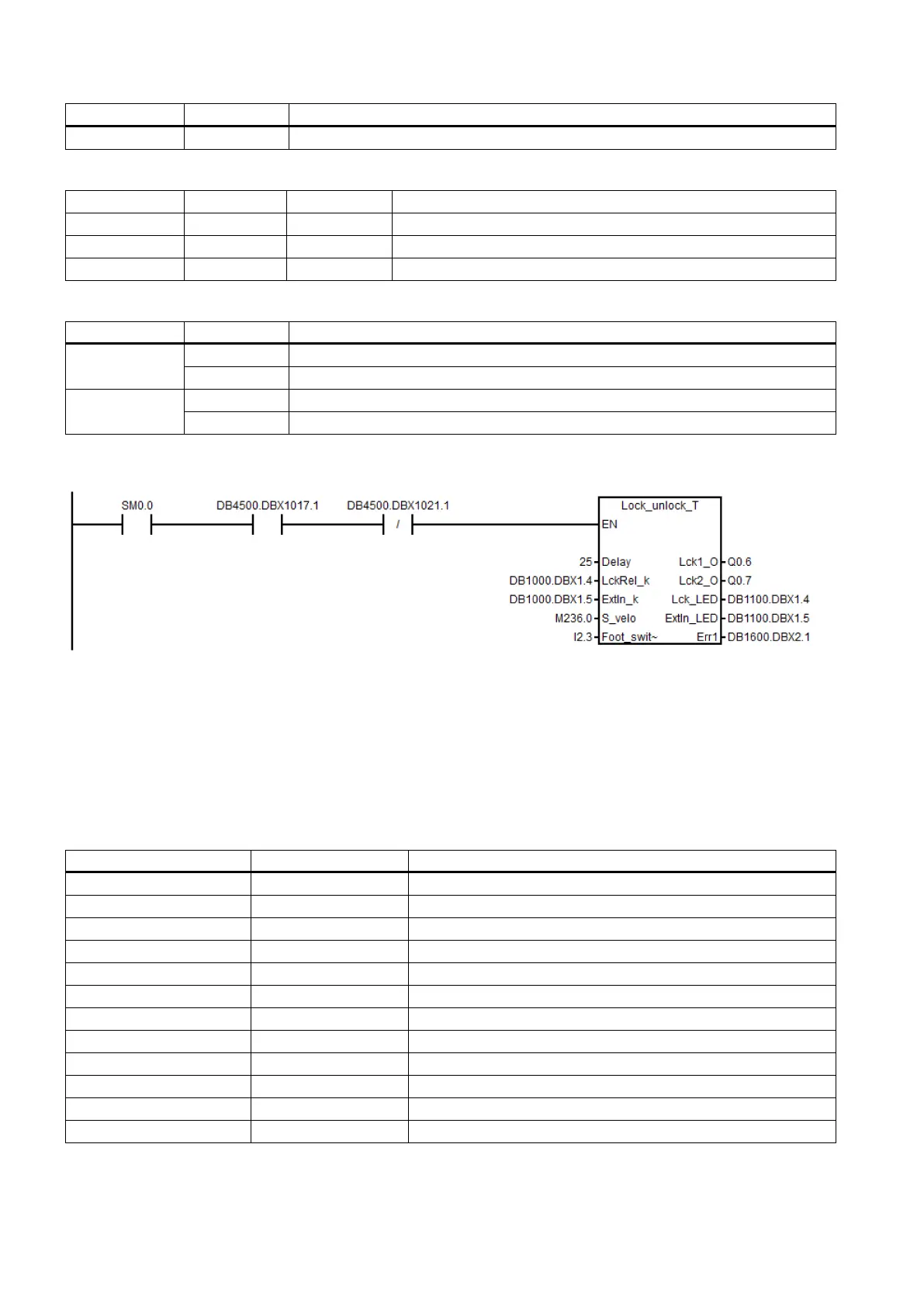

Example for calling subroutine 56
6.6.31
Subroutine 58 (MM_MAIN)
Purpose
To use subroutine 58, you must have licensed the optional Manual Machine Plus function for the SINUMERIK 808D
ADVANCED T (Turning). The subroutines 46, 58 and 59 must be used together. This subroutine is used to control the
manual machine function after the manual machine interface is activated.
Local variable definition
Inputs
Name
Type
Description
TK_X_P
BOOL
Traverse key X plus
TK_X_M BOOL Traverse key X minus
TK_Z_P
BOOL
Traverse key Z plus
TK_Z_M BOOL Traverse key Z minus
RAPID
BOOL
Rapid traverse key
SP_CW
BOOL
Start signal spindle CW
SP_CCW
BOOL
Start signal spindle CWW
SP_STOP
BOOL
Stop signal spindle
NC_START
BOOL
NC start signal
NC_STOP
BOOL
NC stop signal
AUTO_ENABLE
BOOL
Switching to AUTO is enabled in Manual Machine Mode
MDA_ENABLE
BOOL
Switching to MDA is enabled in Manual Machine Mode
