Commissioning Manual
68 6FC5397-4EP10-0BA8, 07/2018

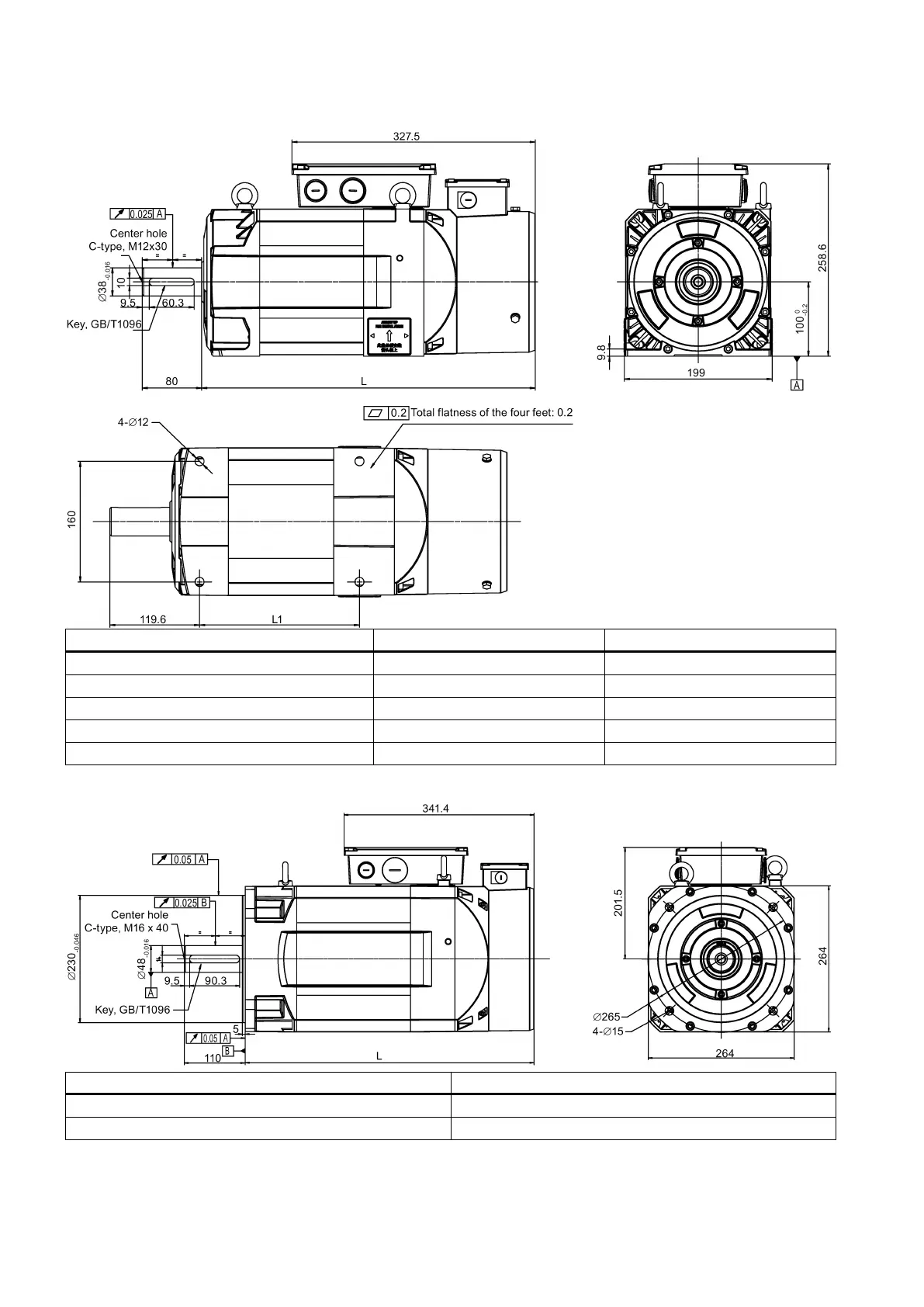

Shaft height 100 mm: foot mounting (unit: mm)
Motor
L
L1
1PH1101-1❑F10-❑GA0
419
183
1PH1103-1❑F10-❑GA0
449
213
1PH1103-1❑D10-❑GA0
449
213
1PH1105-1❑F10-❑GA0
499
263
1PH1105-1❑D10-❑GA0
499
263
Shaft height 132 mm: flange mounting (unit: mm)
Motor
L
1PH1131-1❑F12-❑GA0
475
1PH1131-1❑D12-❑GA0
465
