Commissioning Manual
6FC5397-4EP10-0BA8, 07/2018
187

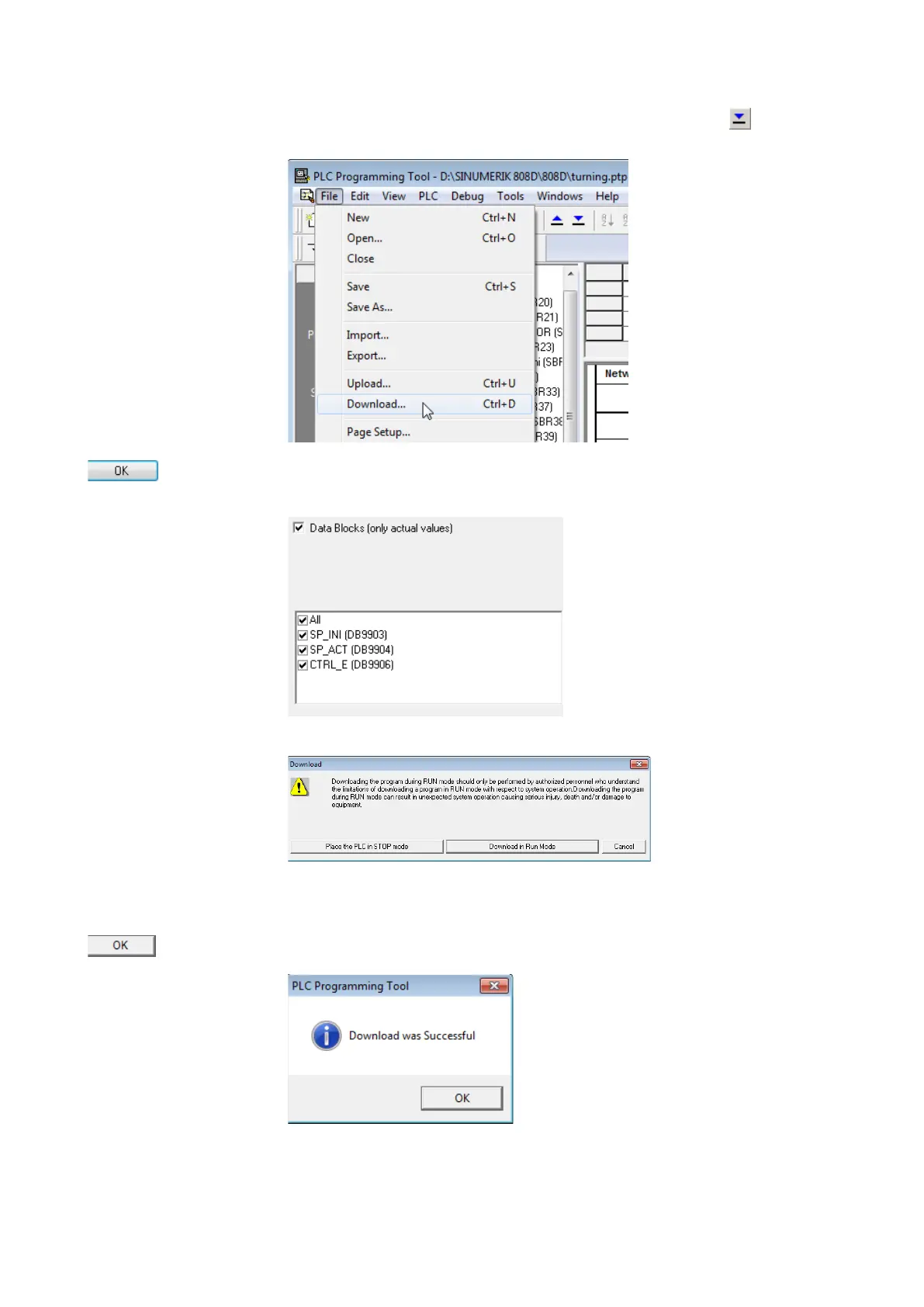

Select from the main screen menu as follows or click the toolbar button
to start the
Click this button on the download dialog box to proceed directly. You can also se
lect the
following checkbox for data blocks to
include the actual values of the data blocks, and then
Choose to download the PLC project when the PLC is in the run
mode or in the
mode.
: You are recommended to download the PLC project when the PLC is in the
mode. Downloading in the run mode can cause machine damages or even human injuries.
Start the download which will take several seconds.
The download finishes when the following message appears. Then click this button to end
y
our operations.
