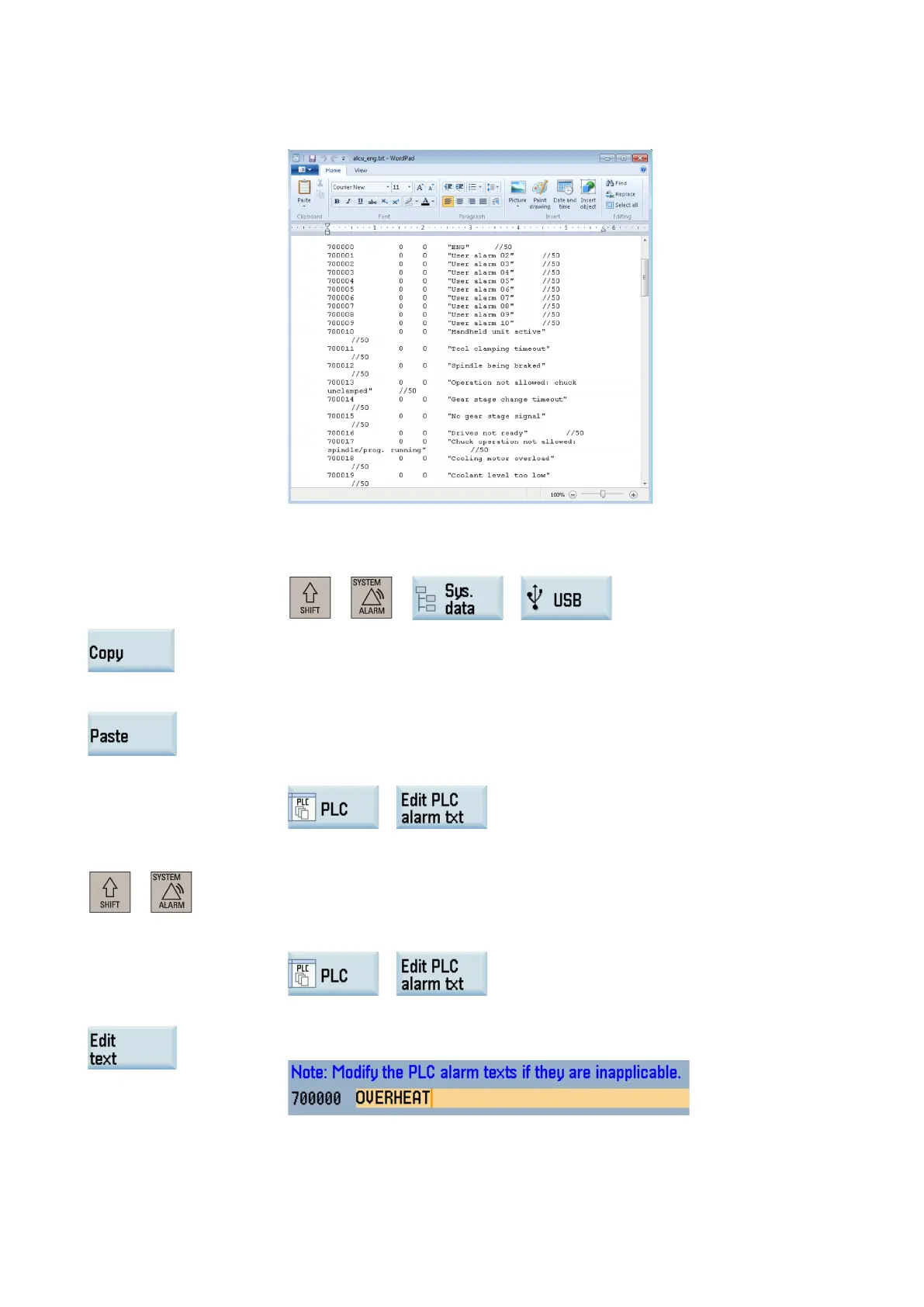

Connect the USB stick with your computer, find the PLC alarm text file copied from the NC,
and open it with the WordPad.
10.
Edit the alarm text as desired and then save and close the file.
11.
Insert the USB stick into the USB interface on the front panel of the PPU.
12.
Enter the USB storage directory through
the following operations:
+ → →
13.
Locat
e the edited alarm text file and press this softkey to copy it.
14.
Open the PLC alarm text folder as shown in Step 6 above.
15.
Press this softkey to paste th
e edited alarm text file and overwrite the original one.
16.
Then you can check the editing result through the following softkey operations:
→
Editing a PLC user alarm on the HMI
+
1.
Select the system data operating area.
2.
Open the window for editing the PLC user alarm texts through the following softkey oper
a-
tions:
→
3.
Use the cursor keys to select the alarm text you desire to edit.
4.
Press this softkey to activate the input field at the bottom of the screen and enter the d
e-
sired text, for example:
Note that the text of each PLC user a
larm must be limited to 50 characters; otherwise, the
alarm cannot display properly.
