Commissioning Manual
20 6FC5397-4EP10-0BA8, 07/2018

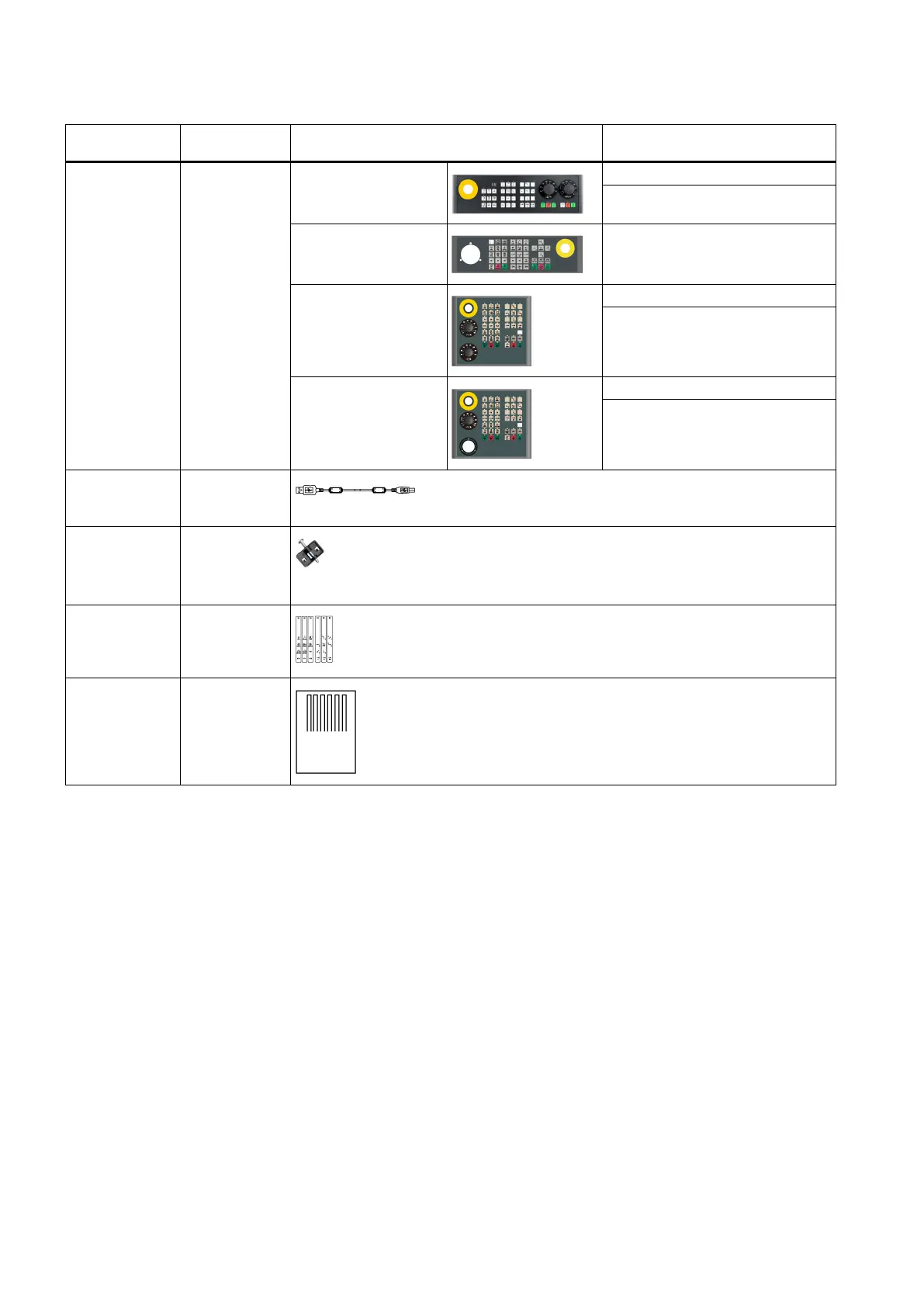

Components in the machine control panel (MCP) package
Component
Quantity (piec-
es)
Illustration
Article number
MCP 1 Horizontal MCP, with
override switches
6FC5303-0AF35-0AA0 (English)
6FC5303-0AF35-0CA0 (Chinese)
Horizontal MCP, with a
reserved slot for the
handwheel
6FC5303-0AF35-1CA0 (Chinese)
Vertical MCP, with an
override switch for the
spindle
6FC5303-0AF35-2AA0 (English)
6FC5303-0AF35-2CA0 (Chinese)
Vertical MCP, with a
reserved slot for the
handwheel
6FC5303-0AF35-3AA0 (English)
6FC5303-0AF35-3CA0 (Chinese)
MCP connecting
cable
1 (for connect-
ing the MCP to
the PPU)
Mounting
clamps with
screws
• Horizontal
MCP: 6
• Vertical
MCP: 8
Pre-defined
labeling strips
for keys of the
MCP, milling *
1
Blank strip pa-
per, A4 size *
1
* Not provided in the package for the horizontal MCP with a reserved slot for the handwheel.
