Commissioning Manual
6FC5397-4EP10-0BA8, 07/2018
225

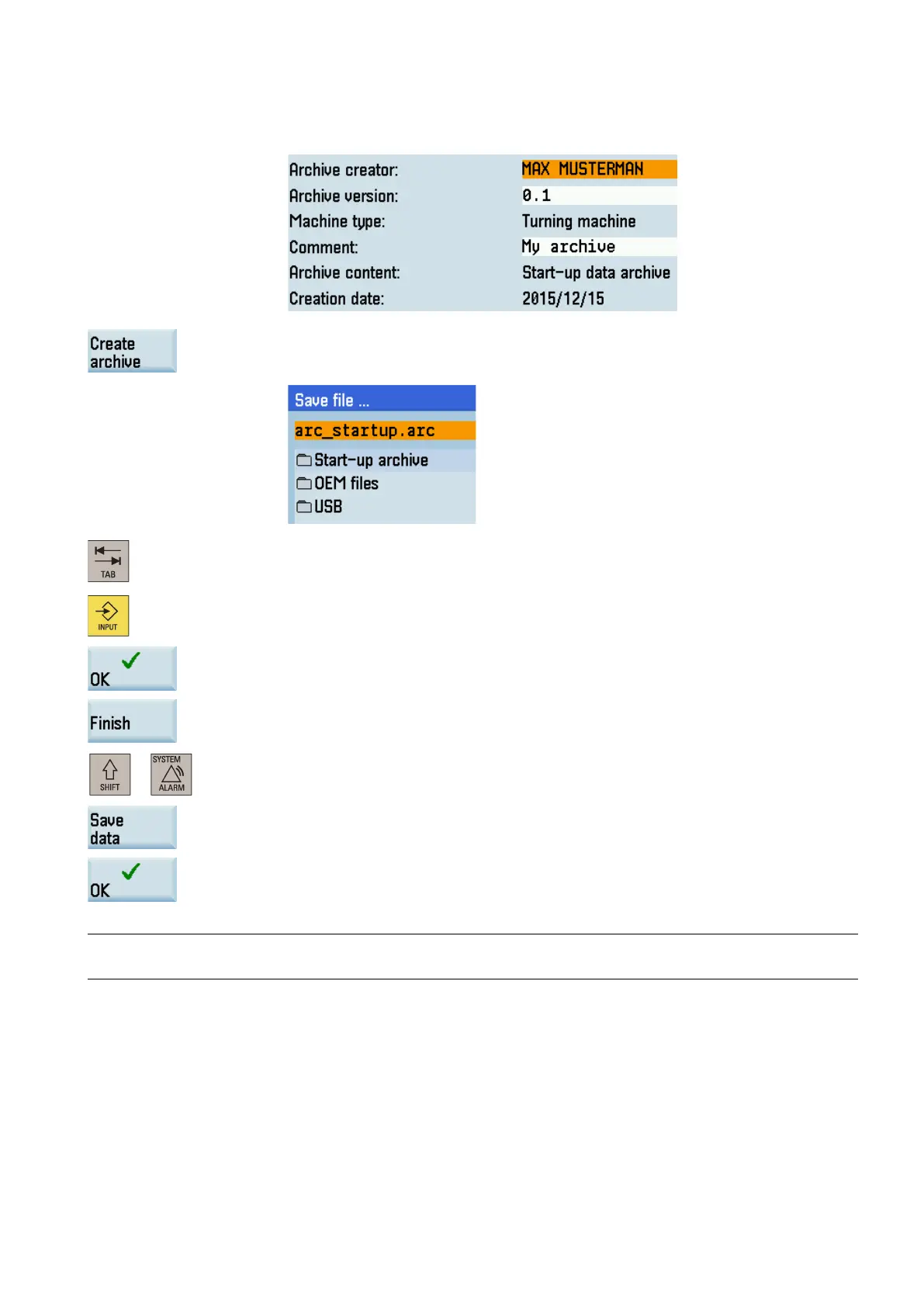

To create a start-up archive for the prototype machine, proceed as follows:
the properties of the archive as required:
open the window for saving the archive file. You must select a directory
in this window. The default name of the data archive is "arc_startup.arc". You can use your
desired name for it. The file name extension ".arc" must be e
ntered.
Note that you can press this key on the PPU to toggle between the file name input field
and
the directory selection area.
Press this key to open the selected directory.
Press this softkey to create the archive.
After the archive is created successfully, press this softkey to finish commissioning the pr
o-
otype machine and return to the main screen of the wizard.
+
ect the system data operating area.
Press this softkey to save data.
Press this softkey to complete the operation.
Note
If you choose USB as the target directory, do not remove the USB stick during the data saving.
