Components in the SIMOTICS S-1FL6 motor package
Component
Illustration
Shaft height (mm)
Stall torque (Nm)
Article number
1)
SIMOTICS S-1FL6
motor
45
1.9
1FL6042-1AF61-❑❑❑1
3.5
1FL6044-1AF61-❑❑❑1
65
4
1FL6061-1AC61-❑❑❑1
1FL6061-1AC64-2L❑1
2)
6
1FL6062-1AC61-❑❑❑1
1FL6062-1AC64-2L❑1
2)
8
1FL6064-1AC61-❑❑❑1
1FL6064-1AC64-2L❑1
2)
11
1FL6066-1AC61-❑❑❑1
1FL6066-1AC64-2L❑1
2)
15
1FL6067-1AC61-❑❑❑1
1FL6067-1AC64-2L❑1
2)
90
15
1FL6090-1AC61-❑❑❑1
22
1FL6092-1AC61-❑❑❑1
30
1FL6094-1AC61-❑❑❑1
40
1FL6096-1AC61-❑❑❑1
User documentation
SIMOTICS S-1FL6 Servo Motors Installation Guide
1)
For more information about article numbers, see motor article number explanation described later in this section.
2)
❑ = G or H only.

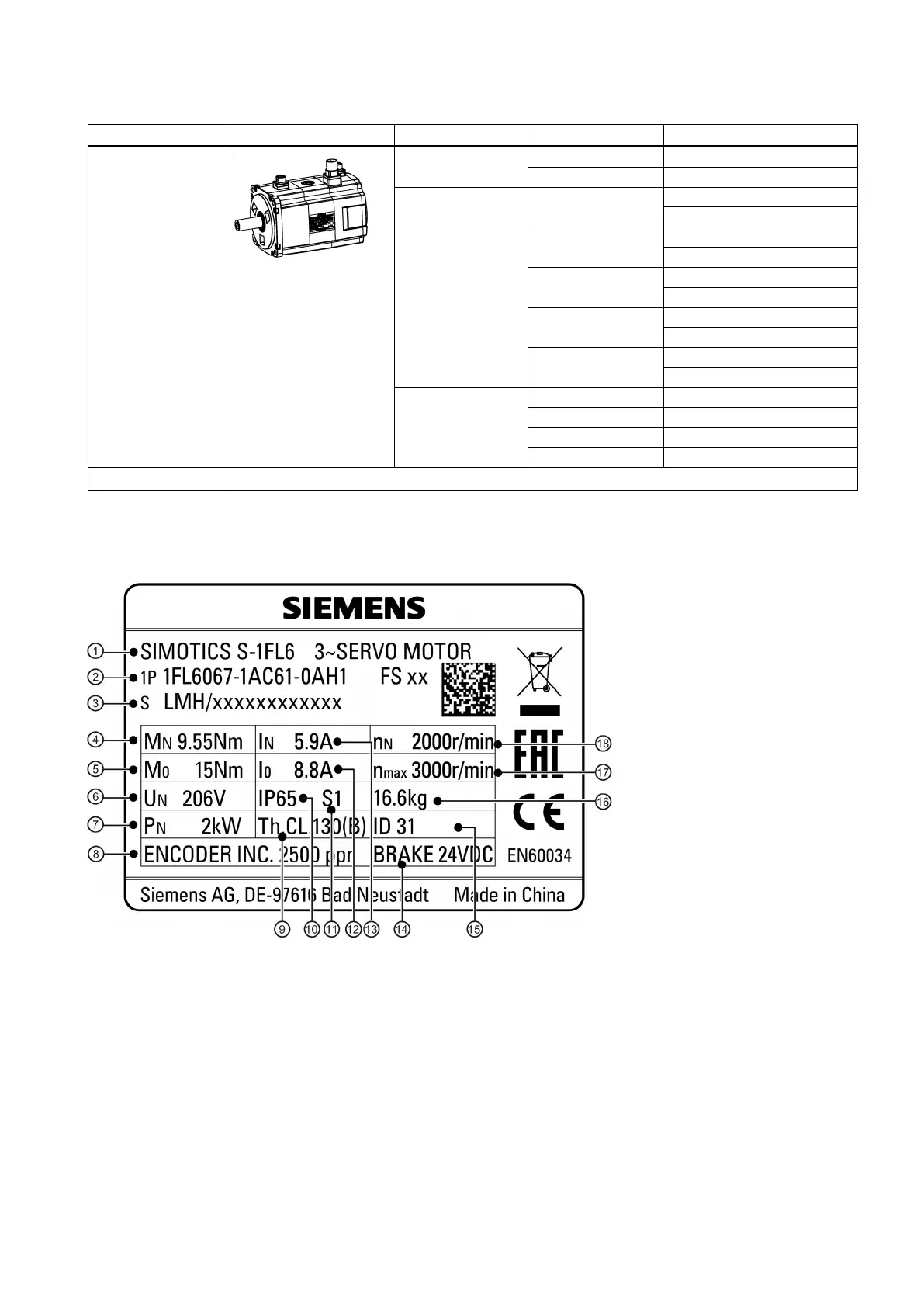

SIMOTICS S-1FL6 motor rating plate
①
Motor type
⑩
Degree of protection
②
Article number
⑪
Motor operating mode
③
Serial number
⑫
Stall current
④
Rated torque
⑬
Rated current
⑤
Stall torque
⑭
Holding brake
⑥
Rated voltage
⑮
Motor ID
⑦
Rated power
⑯
Weight
⑧
Encoder type and resolution
⑰
Maximum speed
⑨
Thermal class
⑱
Rated speed
